StarTech.com ST4300PBU3 Instruction Manual

Instruction Manual

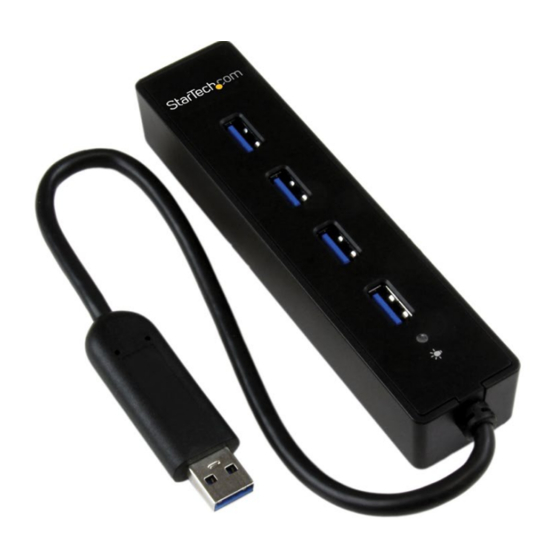

4 Port SuperSpeed USB 3.0 Portable Hub
ST4300PBU3
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x 4 Port USB 3.0 Hub
• 1 x Instruction Manual

System Requirements

• USB enabled computer system with an available USB port

Installation

1. Connect the attached USB cable from the USB hub to the host
computer system
NOTE: If connected to a USB 2.0 host port, the hub will only
operate at USB 2.0 speeds.
2. The operating system should detect the hub immediately and
automatically install it
3. Once installation is complete, USB 1.x/2.0/3.0 devices should be
able to be connected to the hub and recognized
For the most up-to-date information, please visit: www.startech.com
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
ST4300PBU3 o cerca il tuo prodotto tra le migliori offerte di Hub

Specifications

Color
Enclosure Type
I/O Interface
Connectors
Maximum Data
Transfer Rate
Chipset
OS Compatibility
LED Indicators
Dimensions (LxWxH)
Weight
Cable Length
Operating
Temperature
Storage
Temperature
Humidity
StarTech.com
*actual product may vary from photos
Black
Plastic
USB 3.0
4x USB 3.0 type A female
1x USB 3.0 type A male
5 Gbps
VIA - VL812
Windows® 8 (32/64bit), 7 (32/64),
Vista(32/64), XP(32/64), 2000
Windows® Server 2008 R2, 2003(32/64)
Mac OS 10.4 – 10.8
1 - Power
137 x 30 x 22mm
80g
254mm
-5°C to 45°C (23°F to 113°F)
-10°C to 75°C (14°F to 167°F)
20~80% RH
Manual Revision: 07/10/2013
