StarTech.com ST4300USB3 Quick Start Manual

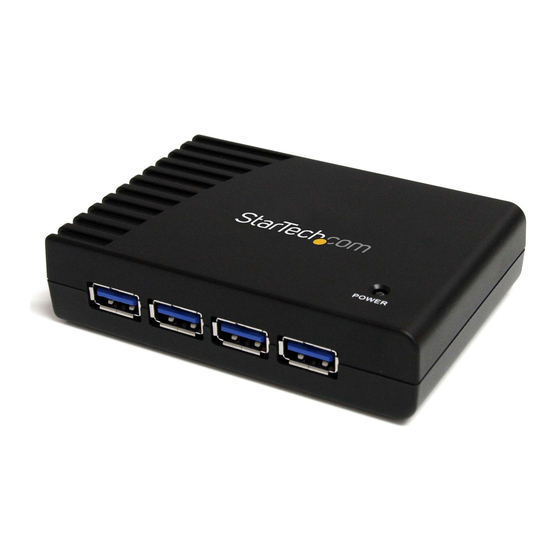

4 Port Black SuperSpeed USB 3.0 Hub
Product Diagram (ST4300USB3)
Port
1 Power LED • Solid: Hub is receiving power.
2 USB-A Ports (4) • Used to connect USB devices to the Hub.
3
Port
• Used with the Power Adapter, to power the
3 Power Port
Hub.
• Used to connect the Host Computer to the
4
USB-B Port (Host)
Hub.
Requirements
For the latest requirements, please visit www.startech.com/ST4300USB3,
com/ST4300USB3EU, or www.startech.com/ST4300USB3GB
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
2
Function
4
Function
www.startech.
Installation
1. Connect the included power adapter to the USB hub. The power LED should light
up solid. Supplying external power is optional, however to ensure each USB port is
fully powered, connecting external power is recommended.
2. Connect the USB cable from the USB hub (type B port) to the host computer system.
NOTE: If connected to a USB 2.0 host port, the hub will only operate at USB 2.0 speeds.
3. The operating system should detect the hub immediately and automatically install
it.
4. Once installation is complete, USB 1.x/2.0/3.0 devices should be able to be
connected to the hub and recognized.
Specifications
Bus Interface
Number of Ports
Chipset ID
Connectors
LEDs
Maximum Data Transfer Rate
Enclosure Material
Power Adapter
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
Quick-Start Guide
USB 3.0
4
VLI VL810
• USB-A x 4
• USB-B x 1
• DC Power x 1
Power x 1
USB 3.0L 5 Gbps
Plastic
5VDC, 2000mA, type M plug
0°C~55°C (32°F~131°F)
-20°C~85°C (-4°F~185°F)
5%~95% RH
152.0mm x 59.6mm x 23.5mm
480g
