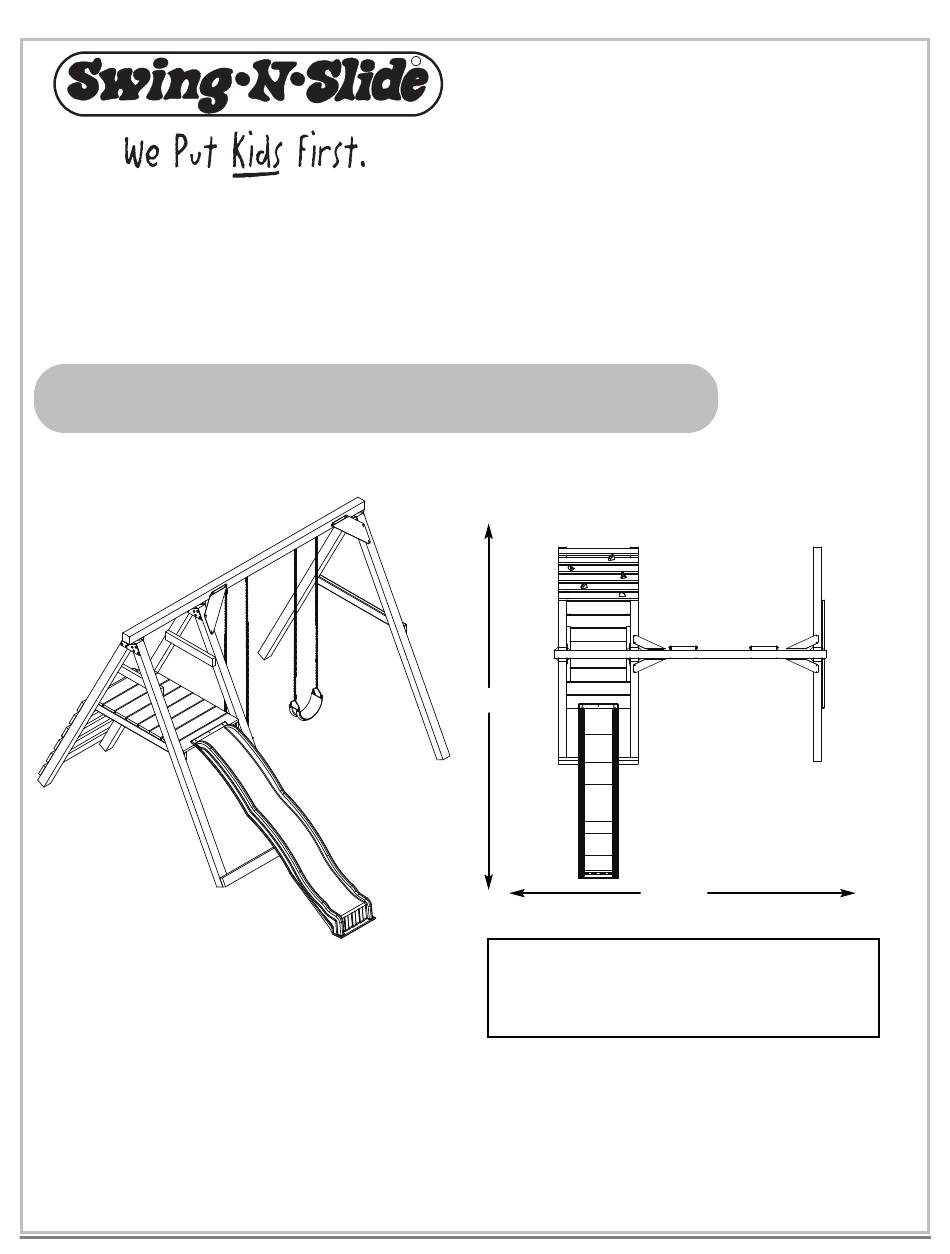

R
PB 8232
check out http://www.swing-n-slide.com/planupdates.htm
for updates to these instructions.
29'
22'
No. of Children: Up to 5
Min. Use Zone: 29 ' x 22 '
Set Dim. 13 'W x 10 'L x 8'H
Est. Building Time: 1-1/2 hr.
ASSEMBLY INSTRUCTIONS
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB 8232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swing-N-Slide PB 8232

Summary of Contents for Swing-N-Slide PB 8232

  • Page 1 Min. Use Zone: 29 ' x 22 ' Set Dim. 13 'W x 10 'L x 8'H Est. Building Time: 1-1/2 hr. ASSEMBLY INSTRUCTIONS Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545 Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232...
  • Page 2 When the equipment is taken out of service, it must be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the set is discarded. Important! Additional Safety Instructions for all Swing-N-Slide Playground Equipment. Save this instruction sheet in the event the manufacturer needs to be contacted.
  • Page 3 This product is intended for single family home/residential use only and not intended for use in any public setting. Placement in any public setting constitutes a misuse of this product. IMPORTANT! ADDITIONAL REQUIRED SAFETY INSTALLATION INSTRUCTIONS According to ASTM requirements, all kits must be anchored to the ground and, if the unit has a climbing rope, the rope end must be anchored to the ground. If soil conditions permit stakes to be pulled out easily, cementing into ground is necessary.

  • Page 4: Tools Required

    TOOLS REQUIRED • HERR MIENT S REQUERID S • OUTILS REQUIS TOOLS REQUIRED HAMMER 1/2" SOCKET & WRENCH ELECTRIC DRILL SAFETY GLASSES CARPENTER'S SQUARE PHILLIPS BIT TAPE MEASURE & DUST MASK (3) 1''Truss Head Screw (10) Loc-Washer (2) 1-3/4'' Panhead Screw (10) 8mm Washer (4) Slotted Beam Clamp (18) 1-1/4'' Wood Screw...
  • Page 5 BY CHILDREN FROM AGES 2-10 YEARS For Home / Residential Use ONLY 1212 Barberry Drive Janesville, WI 53545 1-800-888-1232 www.swing-n-slide.com (2) Swing Seat (1) Name Plate weight limit: 115 lbs. (5) Climbing Rocks With Hardware (1) Safety Handle (4) Swing Hangers...
  • Page 6 PineBluff ssembly Instructions PineBluff Board List 17-1/4'' (1) 2'' x 4'' x 17-1/4'' 23-1/2'' (2) 2'' x 4'' x 23-1/2'' 25'' (2) 2'' x 4'' x 25'' 35'' (1) 2'' x 4'' x 35'' 47-1/2'' (3) 2'' x 4'' x 47-1/2'' 28'' (8) 5/4'' x 6'' x 28'' 35''...
  • Page 7 PlineBluff ssembly Instructions How to select the correct fastener Use these 2 pictorial guides to help select the correct fastener(s) for the lumber attachment you are making. Each diagram will highlight the correct number of fasteners to use, and where to attach them. 2'' x 4'' or 5/4'' x 6'' to 4'' x 4'' 2-1/2'' screws Apply 2 1/2"...
  • Page 8 PineBluff ssembly Instructions EZ Frame Bracket NOTE: Fig. 1 Per Side Double check your measurements to make 2-1/2'' screws sure the structure is per joint square. 2-1/2'' screws per joint 94-1/2'' Frame Assembly: 1. Install 2'' x 4'' boards as shown in (Fig. 1). 2-1/2'' Wood Screw...
  • Page 9 PlineBluff ssembly Instructions DETAIL VIEW UNIT ROTATED 180˚ Fig. 2a 2-1/2'' wood screws per joint Fig. 2 8-1/2'' 2-1/2'' screws per joint 2-1/2'' screws per joint Double check to make sure structure is square Install Frame Braces: 1. Install (1) 5/4'' x 6'', and (3) 2'' x 4'' boards as shown in (Fig. 2), 2-1/2'' Wood Screw and (Fig.

  • Page 10: Platform Assembly

    PineBluff ssembly Instructions Fig. 3 2-1/2'' wood screws per joint 2-1/2'' wood screws per joint Platform Assembly: 1. Lift second half of Platform and secure in place in (4) locations as 2-1/2'' Wood Screw shown in (Fig. 3).
  • Page 11 PlineBluff ssembly Instructions Fig. 4 2-1/2'' wood screws per joint NOTE: There must be a 1/2'' Nominal Gap between all deck boards. Install Deck: 1. Install Deck boards, evenly spaced with a 1/2'' Gap, as shown in (Fig. 4). 2-1/2'' Wood Screw...
  • Page 12 PineBluff ssembly Instructions Fig. 5 2-1/2'' wood screws per joint Install Rock Wall Rungs: 1. Install 5/4'' x 6'' Rock Wall Rungs as shown in (Fig. 5). 2-1/2'' Wood Screw...
  • Page 13 PlineBluff ssembly Instructions Hole Locations Fig. 6 Swing Beam Hole Locations 118-1/8'' A-Frame 1. Install Swing Hangers into swing beam at 112-5/8'' locations shown in (Fig. 6). Platform 86-5/8'' A-Frame 81-1/8'' 67-1/4'' Swing Seat 51-1/4'' 37-3/8'' Swing Seat 21-3/8'' 7-1/2'' A-Frame 3-1/2''...
  • Page 14 PineBluff ssembly Instructions Fig. 7 Hammer T nut 3/8'' hole t-nut Bottom Beam Clamp Use Screwdriver to aid in tightening (4) 1-1/4'' screws 1-1/4'' Screw Swing Hanger E. Swing Beam Drill Locations 1. Tap T-nut into 3/8’’ hole as shown in (Fig. 7). 2.
  • Page 15 PlineBluff ssembly Instructions Fig. 8 A-Frame Assembly (8) 2-1/2’’ Screws 1. layout 4'' x 4’’s and 2'' x 4'' as shown in (Fig. 8). 2. Align EZ Frame Bracket with face of 4'' x 4''s. 3. Secure EZ Frame Bracket with (8) 2-1/2'' screws to 4'' x 4''s making sure they are flush with each other.
  • Page 16 PineBluff ssembly Instructions Fig. 9 T-nut Fig. 10 Washer 2-1/2'' screws Hex Bolt 3-1/2'' Hex Bolt 2-1/2'' Wood Screw A-Frame Assembly cont. 1. Attach A-Frame to Swing Beam using (2) hex bolts and 4 screws as shown in (Fig. 9). 2.
  • Page 17 PlineBluff ssembly Instructions 2'' Lag Screws 2-1/2'' wood screws per Brace Fig. 11 (2) Braces per side of unit Install EZ-Frame Braces: 2-1/2'' Wood Screw 1. Install (2) EZ-Frame Braces per side of the units as shown in (Fig. 11). 2'' Lag Screw...

  • Page 18: Slide Installation

    PineBluff ssembly Instructions Slide Installation. Fig. 12 1. Install Slide centered in the provided opening as shown in (Fig. 12). 2. Attach Stake to end of slide as shown in (12a). Fig. 12a 1-1/4'' screws per joint 2'' x 4'' x 17-1/4'' 1'' Truss Screw Use truss head screws to to secure slide to deck.
  • Page 19 PlineBluff ssembly Instructions Swing Seat Assembly. Fig. 14 1. Hold the swing seat vertically and insert uncoated chains through the channels on the bottom of the swing seat. Note: A coat hanger may be used to help pull chain through the swing seat. One full link should show at each end of the seat (Fig.
  • Page 20 1212 Barberry Drive Janesville, WI 53545 1-800-888-1232 PANTONE "NEWCO RED" www.swing-n-slide.com ID TAG: 1. Secure your product ID tag onto easy to read location of any 4'' x 4'' using (2) 1/2'' Pan Head screws as shown in (Fig. 18a).

  • Page 21: Safety Handle

    PlineBluff ssembly Instructions Safety Handle Safety Handle: Fig. 19 1. Mount safety handle in the climber openings approximately 11'' above the deck surface (Fig. 19). 1/4'' 1- 3/4 washer Panhead screw 11" 1-3/4 Panhead screw...
  • Page 22 PineBluff ssembly Instructions...
  • Page 23 PlineBluff ssembly Instructions...
  • Page 24 Questions???... Call our Customer Service Department at 1-800-888-1232 © PlayCore Inc. 2009 Printed In USA LA 6048...
