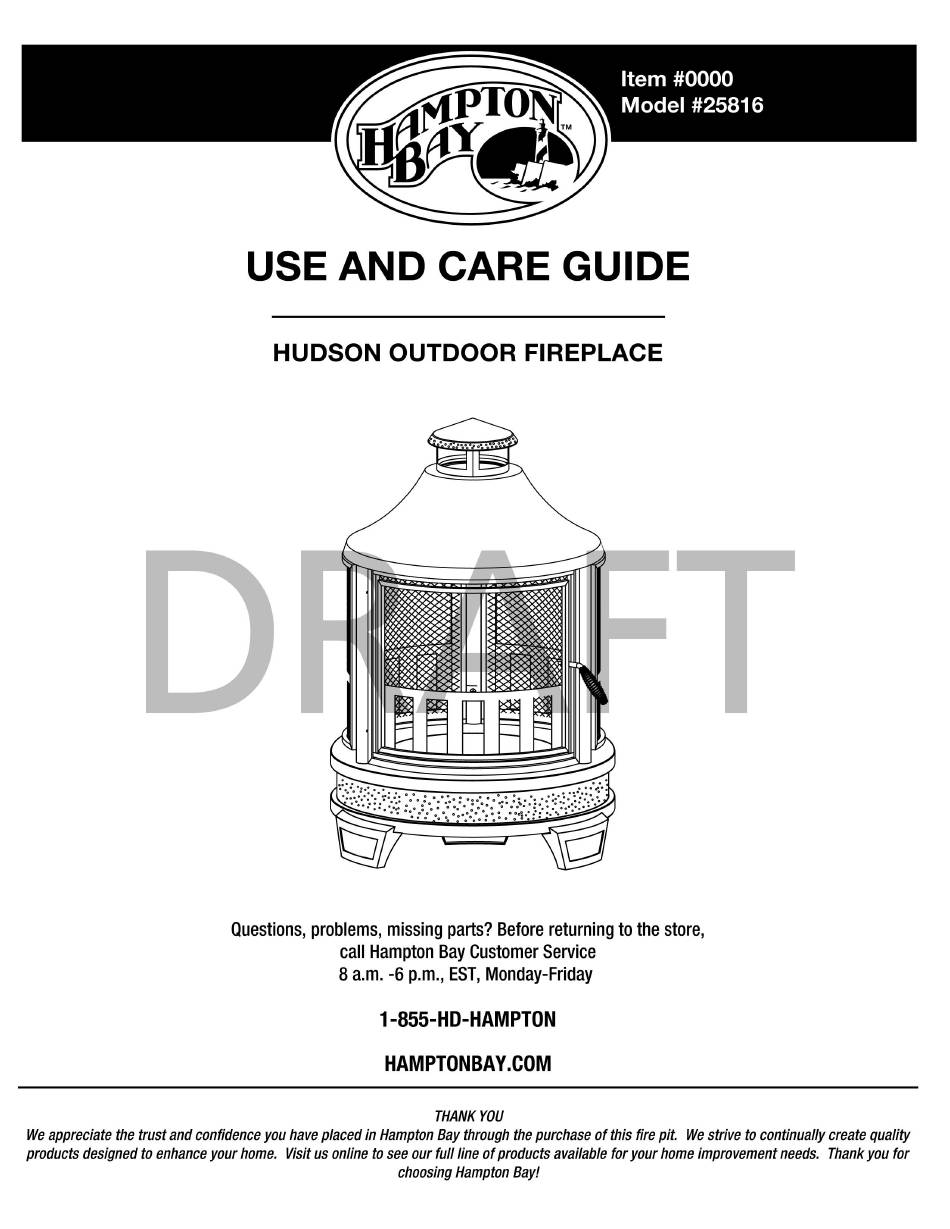

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Assembly ..............5-7 Safety Information ............2 How to use as a fireplace ..........8 Pre-Assembly ............Care and Maintenance ..........8 Tools Required ................. 3 Replacement Parts List ..........9 Hardware Included ..............3 Package Contents ..............

  • Page 3: Pre-Assembly

    Pre-Assembly TOOLS REQUIRED Phillips Adjustable screwdriver wrench HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6 x 15mm Bolt M6 Hexnut (pre-assembled to the door handle) M5 x 8mm Bolt M6 Wing nut...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 5: Assembly

    Pre-Assembly (continued) PACKAGE CONTENTS (continued) Part Description Quantity Base Firebowl Side screens Door screen Poker Legs Top cap Door handle Holding plate (pre-assembled to the door handle) Firebowl handles Assembly Assembling spark screens Assembling the legs to the base Assemble the three legs (G) to the base (A) using six Assemble the two side screens (D) and door screen (E) bolts (AA) .
  • Page 6 Assembly (continued) Assembling the top to the Assembling the door screen to the side screen spark screen Assemble the door screen (E) to the side screens (D) Align and place the top (B) onto the threaded studs using using six bolts (AA). three wing nuts (DD) .
  • Page 7 Assembly (continued) Assembling the firebowl Placing the firebowl into the base handles Open the door and place the firebowl into the base Assemble the firebowl handles (P) to the firebowl (C) from the door. using four bolts (CC). Tighten securely. Adding sand Before using add a 1-1.5 in.

  • Page 8: How To Use As A Fireplace

    How to use as a fireplace Add fuel Close the door Add up to 5 lbs. of kindling and firewood to the firebowl. Close the door screen. Always keep the door screen closed during use. Use paper or firestarter under the kindling and light with a match.

  • Page 9: Replacement Parts List

    Replacement Parts List Part Description Part # Base 25816-A 25816-B Firebowl 25816-C Side screens 25816-D Door screen 25816-E Poker 25816-F Legs 25816-G Top cap 25816-H Door handle 25816-J Holding plate 25816-K (pre-assembled to the door handle) Firebowl handles 25816-P...
  • Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
