Summary of Contents for Verizon Wireless AD3701

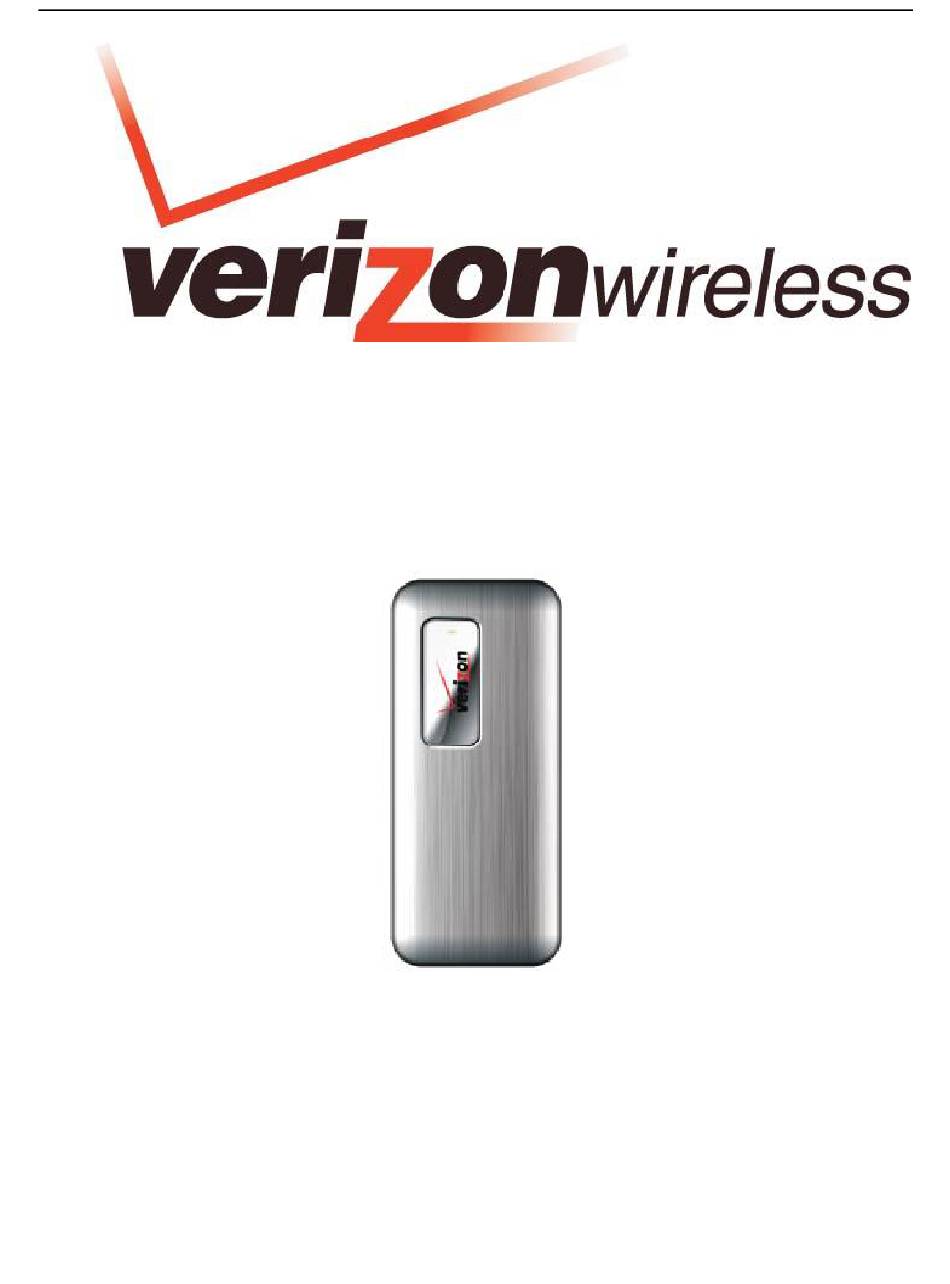

- Page 1 MOBILE BROADBAND / GLOBALACCESS AD3701 GLOBAL READY USB MODEM RODUCT ANUAL...
- Page 2 Manager User Guide on the Installation CD for detailed instructions on installation and software features.) The AD3701 Global Ready USB Modem is a global data device that operates on the reliable Verizon Wireless Mobile Broadband and GlobalAccess networks* in America ,Europe or Asia. Now you can easily connect at high speeds to the Internet, your corporate Intranet, and your email while you’re away the office and out of the...
- Page 3 Welcome are reminded to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often but not always clearly marked. Potential locations can include gas stations, below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you...
- Page 4 AD3701 Modem Hardware: Overview Thank you for choosing the advanced and compact AD3701 Global Ready Modem by Verizon Wireless! This Global Ready modem for worldwide mobile data access is designed for computers equipped with Type-A USB ports. This mobile data solution gives you the coverage and speed you need whether away from the office or out of the country.
- Page 5 Almost every notebook or desktop has a Type-A USB port which opens up the option for you to easily move your AD3701 Modem from one platform to another platform (e.g., from your personal digital assistant to notebook) and even on different operating systems (e.g., from Windows to Vista).
- Page 6 Verizon Wireless recommends the following handling guidelines: • Do not apply adhesive labels to AD3701 Modem; they may cause the device to potentially overheat and they may alter the performance of the antenna. The USB connector should plug easily into your computer’s Type-A USB port. Forcing the device into a •...
-
Page 7: Ways To Access
600 to 1400 Kbps (download) and 500 to 800 Kbps (upload).* *Speed claim based on our network tests with 5 MB FTP data files without compression. Verizon Wireless is rapidly adding Rev. A capability to your Mobile Broadband service area. Your Mobile Broadband Rev. A-enabled device will indicate coverage when you are in a Mobile Broadband Rev. -
Page 8: Installation And Configuration
Installation and Configuration GlobalAccess in over 170 destinations across the globe*. *Service not available everywhere. Visit www.verizonwireless.com/vzglobal for a complete list of available destinations. Information subject to change. - 7 -... -
Page 9: How To Insert The Sim Card
How to Insert the SIM Card A SIM Card is required in order to use the AD3701 Global Modem with GlobalAccess. It is installed on AD3701 and along with a Global feature on your account, enables you to access data while outside the U.S. All information regarding network connection and SIM phonebook is saved in the SIM card. - Page 10 How to Install VZAccess Manager Before you begin using your AD3701 Global Modem, you must first install VZAccess Manager. The comprehensive Quick Reference that was included in the box when you purchased your modem and the VZAccess Manager Software User Guide on the VZAccess Manager CD detail the installation and configuration of your modem.
- Page 11 Removing AD3701 Modem Windows and Vista The AD3701’s USB technology allows you to safely remove it from a Windows computer at any time when you are not connected to the network. End your Mobile Broadband session by selecting Disconnect from VZAccess Manager.
-
Page 12: Using The External Antenna With Adapter Cable
Canada and Mexico coverage maps. Ensure that the wireless network’s coverage extends to your current location. • When properly installed, the AD3701 is a highly reliable product. Most problems are caused by one of these issues: • The wrong driver has been installed. -
Page 13: Product Specification
Product Specification Technical Specifications TABLE 1 Name: AD3701 Global Ready USB Modem Model: AD3701 Approvals: FCC，CE，CDG，GCF Weight 1.6 Ounce Dimensions: 3.1 x 1.7 x 0.5 Inch CDMA2000® 1xEV-DO, UMTS Wireless wide-area Network (HSDPA HSUPA), GSM/GPRS/EDGE Chip Set Qualcomm MSM7625™ Interface Type:... -
Page 14: Health And Safety Information
The guidelines were developed by independent scientific organization ICNIRP and include margins designed to assure the protection of all persons, regardless of age and health. The Specific Absorption Rate (SAR) maximum results found during testing for the AD3701 are as follows (with expanded uncertainty 21.9%):... - Page 15 Health and safety information Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 16 Glossary 1xRTT Short for single carrier (1x) Radio Transmission Technology. A high speed wireless technology based on the CDMA platform. 1xRTT has the capability of providing broadband-like speeds of up to 144 Kbps. 1xRTT is also referred to as CDMA2000. 1xEVDO Part of a family of CDMA2000 1x digital wireless standards.
- Page 17 Type-A plug. Peripherals that do not have an attached cable have a square Type B socket on the device and a separate cable with a Type-A and Type B plug. Universal Serial Bus. A connection type for computing device peripherals such as a printer, mobile AD3701 Modem, etc.
-
Page 18: Trademarks And Service Marks
Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners. - Page 19 Address: ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park, Nanshan District, Shenzhen, Guangdong, P.R.China Declare under our own responsibility that the product: Model: AD3701 Intended use: USB Dongle Complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used for its intended use and that the following standards have been applied: Health (Article 3.1(a) of the R&TTE Directive)
