- Page 1 USER MANUAL USB551L MODEM...
-
Page 2: Software License
“Trademarks”) used in this user manual are the property of Verizon Wireless or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners. -
Page 3: Table Of Contents
Using the USB551L Modem ........ - Page 4 Limited Warranty and Liability ............. . 26 Safety Hazards.
-
Page 5: Getting Started
Getting Started Overview Components Caring for Your Device... -
Page 6: Overview

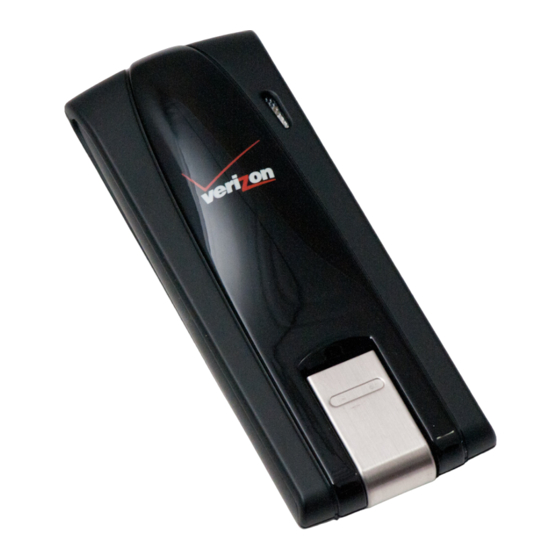

Overview Congratulations on purchasing the Verizon Wireless USB551L Modem for 4G Mobile Broadband service! Before installing the VZAccess Manager software and drivers, review this manual, which outlines the features of the USB551L Modem hardware. This 4G USB modem enables you to connect at high speeds to the Internet, your corporate Intranet, and your email while you’re away from the office. -
Page 7: Components
Components ➊ ➊ LED indicator: This indicates the device is connected to 3G or 4G Mobile Broadband networks; it also indicates when the device has an error or has no service available. See States on page 4. ➋ ➊ USB connector: This connects to your computer through a type A USB port. The hinge design makes it easier to connect to computers. -
Page 8: Led States
LED States The LED indicates the modem status. LED Color Status Description No Light The device is powered off or otherwise is not getting power. Green Solid The modem is powered on but is not transmitting or receiving data. Slow The modem is searching for a 3G data network. -
Page 9: Caring For Your Device
Caring for Your Device Like any electronic device, the modem must be handled with care to ensure reliable operation. Verizon Wireless recommends the following guidelines: Protect the device from liquids, dust, and excessive temperatures. • Do not apply adhesive labels to the device; they might cause the device to overheat or alter •... -
Page 10: Using The Usb551L Modem
Using the USB551L Modem Using the Device for the First Time Using the Device After Setup is Complete Accessories Accessing the User Guides... -
Page 11: Using The Device For The First Time
Activate the USB551L Modem. See Activate Your Device on page 11. IMPORTANT The device requires an activated account with Verizon Wireless to function. Activation must be performed within a Verizon Wireless coverage area. VZAccess Manager must be installed prior to activation. -
Page 12: Install The 4G Sim Card
The Verizon Wireless 4G SIM Card is compatible with any Verizon Wireless 4G certified device. You can move the 4G SIM Card from one device to another and your wireless service will work seamlessly as long as you have a compatible device and service plan. -
Page 13: Install Vzaccess® Manager Software
Follow the on-screen instructions. For more information about installing VZAccess Manager, please consult the VZAccess Manager user guide. ➍ ➊ Insert the USB551L Modem into your computer’s USB port when prompted. ➎ ➊ When installation is complete, click Finish to open VZAccess Manager automatically. -
Page 14: Properly Insert The Device In Your Computer
Hold the device along the side edges and gently insert the device into your computer’s USB port. The USB551L Modem should fit easily into the port. Do not force the device into the port as this might damage both the device and the port. -
Page 15: Set Up Vzaccess® Manager Software
The modem can be activated three ways: in a Verizon Wireless store • by contacting Verizon Wireless Telesales • self-activation through the Verizon Wireless activation website (as part of setting up the • software; the following message appears the first time you activate your device) -
Page 16: Properly Remove The Device From Your Computer
➊ Exit VZAccess Manager to ensure the USB551L Modem is powered off. ➌ ➊ Click the eject icon to the right of the USB551L Modem icon in the left column of the Finder window to eject the device. ➍ ➊... -
Page 17: Using The Device After Setup Is Complete
10. The USB551L Modem is powered on as soon as you insert it in your computer’s USB port. Although the modem is powered on, it does not automatically connect to the Internet. The device LED indicator lights up. -
Page 18: Accessories
Accessories Lanyard Accessory A lanyard is included with the USB551L Modem. It provides convenient portability while on the go. IMPORTANT Do not wear the lanyard and the USB551L Modem around rotating machinery or during sleep. An emergency release clip is constructed in the design; however, you can also cut through the material. -
Page 19: Usb Modem Extension Cable Accessory
USB Modem Extension Cable Accessory An extension cable is included to optimize the performance of your USB551L Modem. This cable increases the distance between the USB modem and computer, reducing possible interference from the computer. If the USB connector on your laptop is inverted and the hinge does not open properly, the cable can be used to allow proper functionality. -
Page 20: Accessing The User Guides
The User Guides can be easily accessed any time the installation CD is inserted. The installation CD includes the following User Guides: VZAccess Manager Software User Guide — Explains the VZAccess Manager features • USB551L Modem Product User Guide — Explains the USB551L Modem’s hardware features •... -
Page 21: Troubleshooting
Troubleshooting Overview Common Problems and Solutions Technical Support... -
Page 22: Overview
Overview When properly installed, the USB551L Modem is a highly reliable product. Most problems are caused by one of these issues: System resources required by the modem are being used by other devices. • Network coverage is unavailable due to coverage area, an account problem, or a network •... -
Page 23: Common Problems And Solutions
Common Problems and Solutions The following are some common problems and solutions. My computer does not start when the device is inserted. I experience an error or a blank screen. When this happens, remove the device and restart the computer. ➤... -
Page 24: Technical Support
Customer Service For Customer Service while in the U.S. or Canada, call 1-800-922-0204. Data Technical Support For additional information and technical support for VZAccess Manager and Verizon Wireless devices, you can visit the Verizon Wireless Data Technical Support page at: http://www.verizonwireless.com/b2c/support/data.jsp. -
Page 25: Product Specifications And Regulatory Information
Product Specifications and Regulatory Information Product Specifications Regulatory Statements Wireless Communications Limited Warranty and Liability Safety Hazards... -
Page 26: Product Specifications
Product Specifications General Name: Verizon Wireless USB551L Modem Model: USB551L Modem Approvals: FCC (North America); FCC Single Modular Approval; CDG Weight: 35 g (1.23 oz) Dimensions (with USB 88 mm x 35 mm x 12 mm folded out): (3.46 in x 0.98 in x 0.47 in) Wireless Network–... -
Page 27: Regulatory Statements
MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Verizon Wireless, Inc. may void your authority to operate the equipment. -
Page 28: Rf Exposure/Specific Absorption Rate (Sar) Information
RF Exposure/Specific Absorption Rate (SAR) Information This product has been evaluated for SAR and meets the FCC Guidelines for exposure to radio waves. FCC Equipment Authorization ID: PKRNVWMC551 Your wireless modem is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. -
Page 29: Single Modular Approval Host Requirements
2. This device must not be collocated or operate in conjunction with any other antenna or transmitters. 3. For any end use product that the USB551L Modem is used in, a label containing the following information must be placed visibly on the outside of the product. -
Page 30: Wireless Communications
Verizon Wireless or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the USB551L Modem, or failure of the USB551L Modem to transmit or receive such data. -
Page 31: Safety Hazards
Safety Hazards Do not operate the USB551L Modem in an environment that might be susceptible to radio interference resulting in danger, specifically: Areas where prohibited by the law Follow any special rules and regulations and obey all signs and notices. Always turn off the host device and remove the modem from the USB port when instructed to do so, or when you suspect that it might cause interference or danger. - Page 32 Electrostatic Discharge (ESD) Electrical and electronic devices are sensitive to electrostatic discharge (ESD). Macintosh native connection software might attempt to reinitialize the device should a substantial electrostatic discharge reset the device. If the software is not operational after an ESD occurrence, then restart your computer.
- Page 33 Glossary...
- Page 34 Glossary ● ➊ 3G — Third Generation. 3G refers to the third generation of mobile telephony technology. The evolution of 3G technology is as follows: ● ➊ 802.11 (b, g, n) — A set of WLAN communication standards in the 2.4, 3.6 and 5 GHz frequency bands. ●...
- Page 35 over the Internet. ● ➊ ICCID — Integrated Circuit Card IDentification. A serial number stored in and engraved or printed on a SIM card that internationally identifies the card. ● ➊ IEEE — Institute of Electrical and Electronics Engineers. An international technical/professional society that promotes standardization in technical disciplines.
- Page 36 ● ➊ NNTP — Network News Transfer Protocol. An Internet application protocol for reading and posting Usenet (newsgroup) articles. ● ➊ POP — Post Office Protocol. An Internet protocol for retrieving email from a remote server over a TCP/ IP connection. ●...
- Page 37 ● ➊ Telnet — Telecommunication Network. A network protocol used on the Internet or on local area networks. ● ➊ TFTP — Trivial File Transfer Protocol. A file transfer protocol with a subset of FTP functionality. ● ➊ UA — User Agent. Any device or software used to access a web page. A user agent might be a web browser, a smart phone, or a screen reader.
