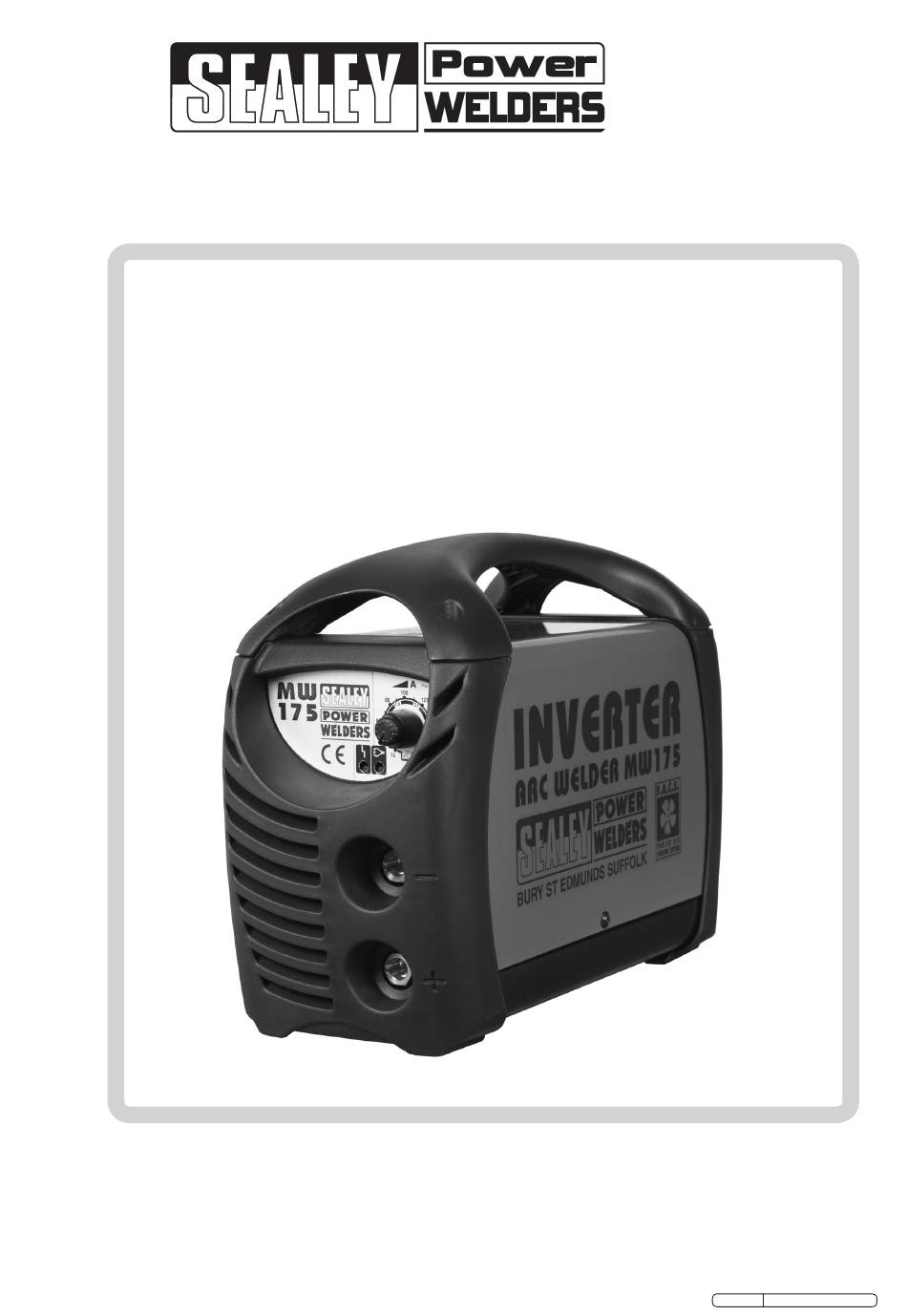

- Page 1 INSTRUCTIoNS FoR: MMA INVERTER Welder 170Amp 230V MW175 Model: MW175 Issue No.1 27/10/11...
-
Page 2: Safety Instructions
MW175 Model No: Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. IMPORTANT: BEFORE USING THIS PRODUCT, PLEASE READ THE INSTRUCTIONS CAREFULLY. MAKE CAREFUL NOTE OF SAFETY INSTRUCTIONS, WARNINGS AND CAUTIONS. -
Page 3: Specification
(instant short circuit), and is responsible for the safety system. 3. SPECIFICATION 3.1. SPECIFICATION Model No........................MW175 Peak Power: ........................195A output: ..........................15 - 170A duty Cycle: ........................8% @ 160A electrode Capacity: ......................Ø1.6 - 4.0mm Max Absorbed Power: ....................5kW... -
Page 4: Cable Connection
With the exception of a metallic workbench DO NOT connect the return cable to any metallic structure which is not part of the workpiece, as this will jeopardise weld quality and may be dangerous. fig.4 MW175 Issue No.1 27/10/11 Original Language Version... -
Page 5: Welding Procedure
10.4. ensure that the casing is correctly replaced and secured before attempting to use the inverter. 10.5. Keep the outside of the machine clean by wiping with a soft, dry cloth. For any other service or maintenance, contact your local Sealey service agent. Original Language Version MW175 Issue No.1... -
Page 6: 11. Troubleshooting
This shielding should be connected to the power source so that good electrical contact is maintained between the conduit and the welding power source enclosure. Original Language Version MW175 Issue No.1 27/10/11... - Page 7 WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode. Sole UK Distributor, Sealey Group, www.sealey.co.uk...
