CG2350T
Gas Powered Pressure Washer
Owner's Manual
IMPORTANT: Do not operate this equipment until you have read and understand all of the
enclosed Owner's Manuals. Carefully read all Warnings, Safety Precautions, Assembly
and Operating Instructions, Maintenance and Storage information.
Overview & Warnings .................. 1
Safety Precautions ................... 2, 3
Assembly Instructions .................. 4
Operating Instructions .................. 5
Using the Accessories.................. 6
Working with Detergent ................ 7
Shutdown Instructions .................. 8
Storage & Winterizing .................. 9
Basic Maintenance ................9, 10
Troubleshooting ....................11, 12
Warranty Information .................. 13
Customer Service Hotline:
1-877-888-9572
visit our website:
www.kodiakequipment.ca
Specifications
Model:
CG2350T
Pressure:
2350 PSI *
Flow Rate:
2.0 GPM
Engine:
4.75 HP Briggs & Stratton
* Stated pressure is peak pressure.

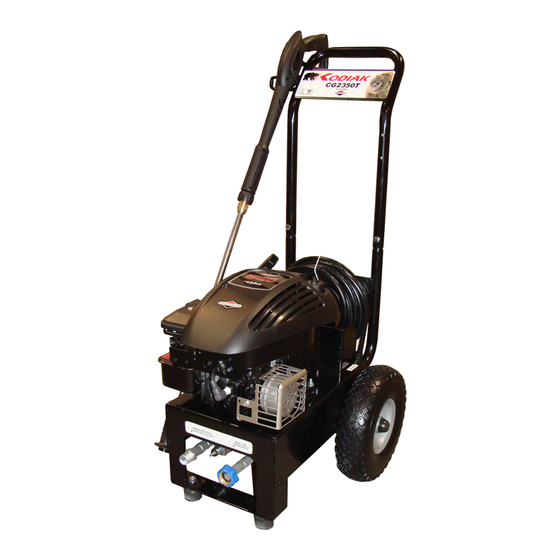

Product may not be exactly as shown.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kodiak CG2350T
Summary of Contents for Kodiak CG2350T
-
Page 1: Table Of Contents
CG2350T Gas Powered Pressure Washer Owner's Manual Overview & Warnings ....1 Safety Precautions ....2, 3 Assembly Instructions ....4 Operating Instructions ....5 Using the Accessories....6 Working with Detergent ....7 Shutdown Instructions ....8 Storage & Winterizing ....9 Basic Maintenance ....9, 10... -
Page 2: Overview & Warnings
Overview Note: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged parts. DO NOT return this product to the store. Item Description Water outlet (OUTLET) Water inlet (INLET) Cart frame... -
Page 3: Safety Precautions
Important Safety Precautions Safety Overview This unit was designed for specific applications. It 6. Always use both hands during operation to should not be modified or used for any application maintain complete control of the gun/lance other than that for which it was designed. assembly. - Page 4 7. Calcium build-up due to hard water is NOT the models rated PSI (2000 PSI for model covered by the warranty. CG2000T; 2350 PSI for model CG2350T). 27. DO NOT allow the pressure washer to run for more than 3 minutes with the gun closed and the engine running.
-
Page 5: Assembly Instructions
Assembly Instructions Note: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged parts. DO NOT return this product to the store. Step 1 Step 2 Align the handle to the frame... -
Page 6: Operating Instructions
Operating Instructions WARNING: THE ENGINE IS SHIPPED WITHOUT OIL. Fill engine with the recommended oil to the indicated level before operating the unit. Failure to do this will cause severe damage to the engine and void the warranty. Please refer to the Engine Owner's Manual for details. Step 1 Step 2 Step 3... -
Page 7: Using The Accessories
NOTE: The pressure of the spray increases as you move the lance closer to the surface to be cleaned. Optional Cleaning Accessories KODIAK offers a complete line of Accessories and Concentrated Detergents (4 Litres) Concentrated Detergents to enhance the cleaning •... -
Page 8: Working With Detergent
Working with Detergent Detergent Overview WARNING! To enhance the efficiency of the pressure washer, • Never use bleach, chlorine products and sometimes it is necessary to use detergents to other corrosive chemicals help loosen tough dirt and grime. • Never use liquids containing solvents (i.e., paint thinners, gasoline, oils) CAUTION: This machine has been designed for •... -
Page 9: Shutdown Instructions
Shutdown Instructions CAUTION: Failure to discharge the residual pressure could result in personal injury due to discharge of high-pressure water. Step 1 Step 2 Step 3 Turn the engine to the Turn OFF the water supply. Discharge residual pressure OFF (STOP) position. by pressing and holding the gun trigger until no water comes out the nozzle. -
Page 10: Storage & Winterizing
Storage & Winterizing Storage CAUTION: Always follow Shutdown Instructions If you must store your pressure washer in a on page 8 before storing the pressure washer or location where the temperature is below 0°C, the accessories. For your own safety, be sure to you can minimize the chance of damage to your turn the engine OFF and discharge the residual machine by utilizing the following procedure:... - Page 11 Basic Maintenance – continued Connections Connections on hoses, the gun/lance assembly and spray lance should be cleaned regularly and lubricated with lithium grease to prevent leakage and damage to the O-rings. Water Screen CAUTION: If the screen is not kept clean, the flow of water to the pressure washer will be restricted and the pump may be damaged.
-
Page 12: Troubleshooting
Troubleshooting IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on the unit or the accessories. Always discharge residual pressure and turn the engine OFF. Symptom Possible Cause Solution Engine will not start. No gasoline. Fill gas tank. Engine throttle is not in Refer to the Engine Owner’s Manual correct position. - Page 13 Troubleshooting – continued IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on the unit or the accessories. Always discharge residual pressure and turn the engine OFF. Symptom Possible Cause Solution No detergent. Spray nozzle in Adjust the spray nozzle to the low-pressure position (see page 6).
-
Page 14: Warranty Information
Damage in transit is NOT covered by warranty. Warranty is void if any devices or accessories other than those distributed or recommended by Kodiak are attached to or connected with the equipment in such a manner that the original factory construction is altered.
