Kodiak CG2800R Owner's Manual

Gas powered pressure washer

Hide thumbs

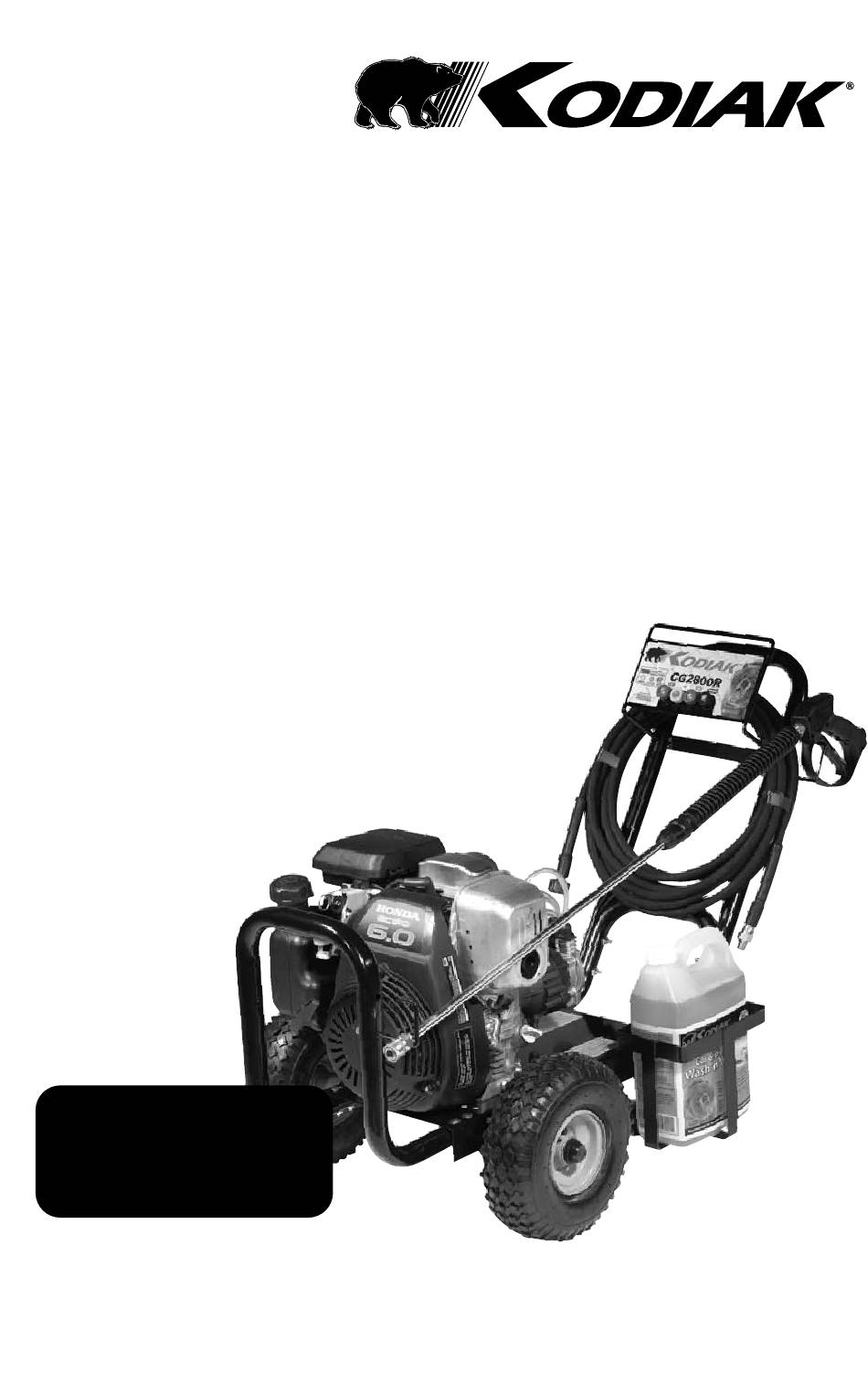

CG2800

Gas Powered Pressure Washer

Owner's Manual

Overview & Warnings ........................................ 1

Safety Precautions ......................................... 2,3

Assembly Instructions ....................................... 4

Operating Instructions ....................................... 5

Using the Accessories ....................................... 6

Working with Detergent ..................................... 7

Shutdown Instructions ....................................... 8

Storage & Winterizing ........................................ 9

Basic Maintenance ....................................... 9,10

Troubleshooting .......................................... 11,12

Warranty Information ....................................... 13

Specifications

Pressure:

2800 PSI

Flow Rate:

2.5 GPM

Engine:

6.0 HP Honda (GC)

Water flow and maximum pressure

ratings determined in accordance

with PWMA standard 101.

Customer Service Hotline:

1-800-461-1323

visit our website:

www.kodiakpower.ca

IMPORTANT: Do not operate this equipment until you have read and understand all of the

enclosed Owner's Manuals. Carefully read all Warnings, Safety Precautions, Assembly

and Operating Instructions, Maintenance and Storage information.

MAN-CG2800REF(05-01)

Table of Contents

Troubleshooting

Need help?

Do you have a question about the CG2800R and is the answer not in the manual?

Questions and answers

Summary of Contents for Kodiak CG2800R

Page 1: Table Of Contents
CG2800 Gas Powered Pressure Washer Owner's Manual Overview & Warnings ........1 Safety Precautions ......... 2,3 Assembly Instructions ........4 Operating Instructions ........5 Using the Accessories ........6 Working with Detergent ........7 Shutdown Instructions ........8 Storage & Winterizing ........9 Basic Maintenance ........
Page 2: Overview & Warnings
Overview Note: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged parts. DO NOT return this product to the store. Item Description Customer Service Hotline: Nozzle connector 1-800-461-1323...
Page 3: Safety Precautions
Important Safety Precautions Safety Overview This unit was designed for specific applications. It 6. Always use both hands during operation to should not be modified or used for any application maintain complete control of the gun/lance other than that for which it was designed. assembly.
Page 4: Safety Precautions
Important Safety Precautions – continued Important Safety Precautions – continued Safety Precautions – continued Water Supply (Cold Water Only) 22. DO NOT allow your pressure washer to freeze This pressure washer must only be used with during colder months. Damage as a result of clean water;...
Page 5: Assembly Instructions
Assembly Instructions Note: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged parts. DO NOT return this product to the store. Step 1 Step 2 Step 3...
Page 6: Operating Instructions
Operating Instructions WARNING: THE ENGINE IS SHIPPED WITHOUT OIL. Fill engine with the recommended oil to the indicated level before operating the unit. Failure to do this will cause severe damage to the engine and void the warranty. Please refer to the Engine Owner's Manual for details. Step 1 Step 2 Step 3...
Page 7: Using The Accessories
Optional Cleaning Accessories KODIAK offers a complete line of Concentrated Detergents to enhance the cleaning performance of your pressure washer. Concentrated Detergents (4 Litres) • All-Purpose Cleaner •...
Page 8: Working With Detergent
Working with Detergent Detergent Overview WARNING! To enhance the efficiency of the pressure washer, • Never use bleach, chlorine products and sometimes it is necessary to use detergents to other corrosive chemicals help loosen tough dirt and grime. • Never use liquids containing solvents CAUTION: This machine has been designed for (i.e., paint thinners, gasoline, oils) use with pressure washer detergents only.
Page 9: Shutdown Instructions
Shutdown Instructions Thermal Protection Valve Your pressure washer is equipped with a thermal protection valve, located at the base of the pump. If the engine is left running for an extended time with the gun closed, the pressure washer will dump water into the atmosphere through this valve.
Page 10: Storage & Winterizing
Storage & Winterizing Storage CAUTION: Always follow Shutdown Instructions If you must store your pressure washer in a on page 8 before storing the pressure washer or location where the temperature is below 0˚C, the accessories. For your own safety, be sure to you can minimize the chance of damage to your turn the engine OFF and discharge the residual machine by utilizing the following procedure:...
Page 11 Basic Maintenance – continued Connections Connections on hoses, the gun/lance assembly and spray lance should be cleaned regularly and lubricated with lithium grease to prevent leakage and damage to the O-rings. Water Screen CAUTION: If the screen is not kept clean, the flow of water to the pressure washer will be restricted and the pump may be damaged.
Page 12: Troubleshooting
Troubleshooting IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on the unit or the accessories. Always discharge residual pressure and turn the engine OFF. Symptom Possible Cause Solution Engine will not start. No gasoline. Fill gas tank. Engine throttle is not in Position throttle 1/3 of the way correct position.
Page 13: Troubleshooting
Troubleshooting – continued IMPORTANT: Always follow the Shutdown Instructions (see page 8) before working on the unit or the accessories. Always discharge residual pressure and turn the engine OFF. Symptom Possible Cause Solution No detergent. Black-coloured detergent Attach the black-coloured nozzle not attached.
Page 14: Warranty Information
Damage in transit is NOT covered by warranty. Warranty is void if any devices or accessories other than those distributed or recommended by Kodiak are attached to or connected with the equipment in such a manner that the original factory construction is altered.

This manual is also suitable for:

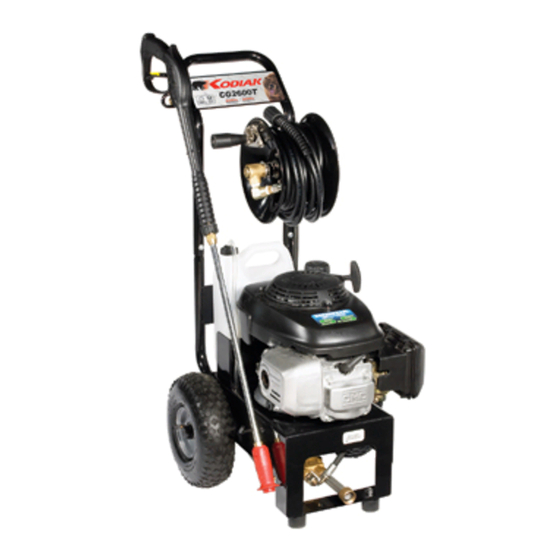

Cg2600t
