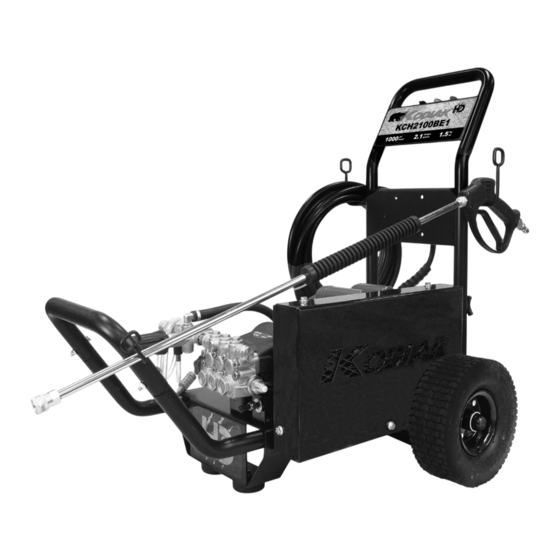

KODIAK HD BELT DRIVE
PRESSURE WASHER
OWNER'S MANUAL
2.
Overview & Warnings
3.
Safety Precautions
5.
Assembly Instructions
6.
Operating Instructions
7.
Using the Accessories
8.
Working with Detergent
9.
Shutdown Instructions
10.
Storage, Winterization & Transport
10.
Basic Maintenance
12.
Troubleshooting
14.
Warranty Information
CUSTOMER SERVICE HOTLINE:
1-888-881-6667
Visit our website:
www.dynablast.ca
IMPORTANT: Do not operate this equipment until you have read and understand all
of the enclosed Owner's Manuals. Carefully read all Warnings, Safety Precautions,
Assembly and Operating Instructions, Maintenance and Storage information.
Advertisement
Table of Contents
Related Manuals for Kodiak KCH3100BE1
Summary of Contents for Kodiak KCH3100BE1
- Page 1 KODIAK HD BELT DRIVE PRESSURE WASHER OWNER’S MANUAL Overview & Warnings Safety Precautions Assembly Instructions Operating Instructions Using the Accessories Working with Detergent Shutdown Instructions Storage, Winterization & Transport Basic Maintenance Troubleshooting Warranty Information CUSTOMER SERVICE HOTLINE: 1-888-881-6667 Visit our website: www.dynablast.ca...
-
Page 2: Machine Overview
MACHINE OVERVIEW Note: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if parts are missing or damaged. DO NOT return this product to the Dealer. ITEM DESCRIPTION Nozzle Connector Spray Lance... -
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS SAFETY OVERVIEW 13. Outlets with a third prong ground are required. DO This unit was designed for specific applications. It should NOT use without grounded prong. not be modified or used for any application other than 14. If replacement of the plug or cord is needed, use that for which it was designed. -
Page 4: Water Supply
IMPORTANT SAFETY PRECAUTIONS (CONT’D) SAFETY PRECAUTIONS WATER SUPPLY (CONT’D) (Cold Water Only) 33. Securely connect the discharge lines before starting This pressure washer must only be used with clean water; the pump. An insecurely connected line may cause use of unfiltered water or corrosive chemicals will damage personal injury and/or property damage. - Page 5 ASSSEMBLY INSTRUCTIONS NOTE: Check for visible shipping damage. Shipping damage will cause problems in the operation of this unit. Contact the Customer Service Hotline immediately if there are missing or damaged parts. DO NOT return this product to the Dealer! NOTE: This product features an innovative reversible handle which allows the user the option of high cart or low cart configuration by simply switching handles from one side to the other.
- Page 6 OPERATING INSTRUCTIONS STEP 1 STEP 2 STEP 3 Connect the garden hose to the Release the gun safety-lock and Continue to squeeze gun trigger water supply and turn ON water squeeze gun trigger. until a steady stream of water full force. flows from the nozzle before releasing the trigger.
-
Page 7: Using The Accessories
STEP 2 Release the gun trigger and engage the gun safety-lock. Hose Reel Kit Part Number: CC2HRKIT Rotary Nozzles Kits: Nozzle Kit Part Compatible Number HD Model KCH3100BE1 RNOZKITUR16055 KCH3100BET1 KCH2150BE1 RNOZKITUR2504 KCH2150BET1 KCH3150BE1 STEP 3 RNOZKITUR25045... -
Page 8: Working With Detergent
WORKING WITH DETERGENT DETERGENT OVERVIEW WARNING! To enhance the efficiency of the pressure washer, • Never use bleach, chlorine products and other sometimes it is necessary to use detergents to help corrosive chemicals loosen tough dirt and grime. • Never use liquids containing solvents (i.e. paint thinners, gasoline, oils) CAUTION: This machine has been designed for use •... -
Page 9: Shutdown Instructions
SHUTDOWN INSTRUCTIONS THERMAL PROTECTION VALVE Your pressure washer is equipped with a thermal protection valve, located at the base of the pump. If the motor is left running for an extended period of time with the gun closed, the pressure washer will vent water into the atmosphere through this valve. -
Page 10: Basic Maintenance
STORANGE, WINTERIZING & TRANSPORT STORAGE WINTERIZING CAUTION: Always follow the proper Shutdown Always store your pressure washer in a location where Instructions on page 9 before storing the pressure the temperature will NOT fall below 0˚C. washer or accessories. For your own safety, be sure to turn the motor OFF and discharge the residual pressure If you must store your pressure washer in a location (see page 9.) -
Page 11: Water Screen
BASIC MAINTENANCE (CONT’D) WATER SCREEN PUMP OIL CHANGE CAUTION: If the screen is not kept clean, the flow of NOTE: Check the pump before every use as well as the water to the pressure washer will be restricted and the system components. -
Page 12: Troubleshooting
TROUBLESHOOTING IMPORTANT: Always follow the Shutdown Instructions (see page 9) before working on the unit or the accessories. Always discharge residual pressure and turn the motor OFF. SYMPTOM POSSIBLE CAUSE SOLUTION Motor will not On/Off switch is in the “OFF” Turn switch to the “ON”... -
Page 13: Customer Service Hotline
TROUBLESHOOTING (CONT’D) IMPORTANT: Always follow the Shutdown Instructions (see page 9) before working on the unit or the accessories. Always discharge residual pressure and turn the motor OFF. SYMPTOM POSSIBLE CAUSE SOLUTION Garden hose Loose fittings. Tighten or replace fittings. connection Missing or worn rubber Insert new washer. -
Page 14: Warranty Information
Be sure to pack the unit in a strong carton and pad tightly to avoid damage. Damage in transit is NOT covered by warranty. Warranty is void if any devices or accessories other than those distributed or recommended by Kodiak are attached to or connected with the equipment in such a manner that the original factory construction is altered.
