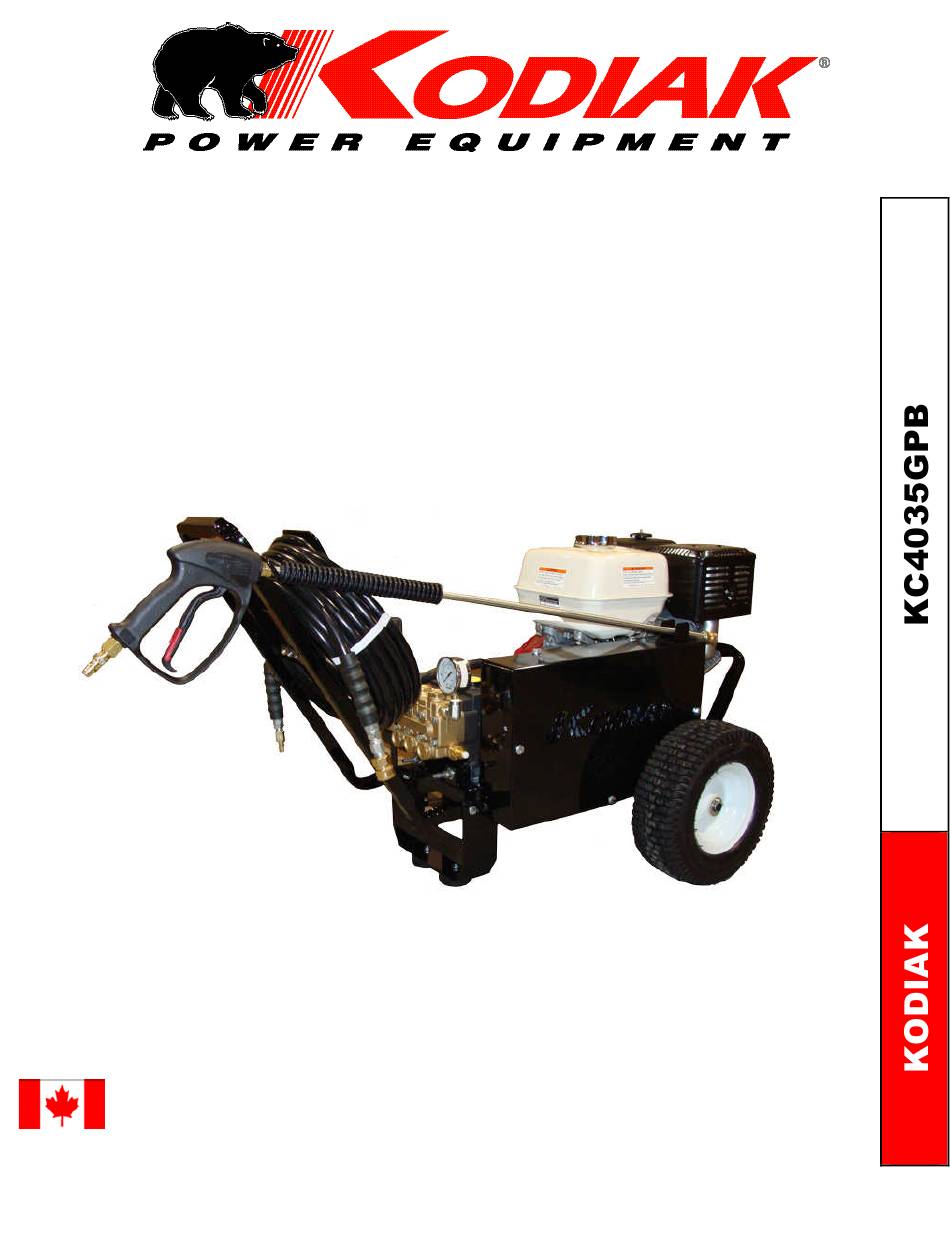

- Page 1 OPERATOR’S MANUAL COLD WATER PRESSURE WASHER BELT DRIVE John Brooks Company Limited 2625 Meadowpine Blvd, Mississauga, ON, L5N 7K5 Tel: 888-881-6667 Fax: 800-350-5666 www.kodiakpower.ca REV01 01/13...
-
Page 2: Safety First
SAFETY FIRST This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual to warn of the possibility of personal injury or equipment damage. Read these instructions carefully. It is essential that you read the operating instructions and safety instructions before you attempt to assemble or use this unit. - Page 3 When changing spray nozzles, always do so with the pressure in the system relieved, the engine turned off and the red safety latch engaged on the trigger gun. Always point the gun / wand away from you while connecting or disconnecting the spray nozzle.
-
Page 4: Start-Up And Operation
START UP AND OPERATION: PUMP Remove the shipping plug on your pump’s crankcase and install the provided vented plug / dipstick (yellow). WARNING: The vented plug / dipstick must be installed, by not doing so, may cause personal injury, cause damage to the pump, and void its warranty. Check your pump oil level using the sight glass located on the side of the pump. - Page 5 Before installing one of the desired quick connect nozzles, follow the instructions below: When installing or changing any spray nozzle, always do so with the water turned off at the source, the pressure in the system relieved, the engine turned “OFF”, and the red safety latch engaged on the trigger gun.
- Page 6 Starting the engine with re-coil start (see Engine Manual). Turn switch to “ON “ position. • Turn fuel knob to “ON” position. • Put engine throttle to full RPM’s (maximum) for proper pump • performance. Turn on choke. • Pull engines starter until started. •...
- Page 7 You are now ready to change the nozzle. (NOT APPLICABLE TO C5050BG). To change the quick connect nozzle, remove existing spray nozzle by pulling the socket back and taking the nozzle out. Connect the desired nozzle to the spray gun by pulling the collar on the socket back, insert desired nozzle and slide collar back into place.
- Page 8 RINSING AND PRESSURE WASHING Stop spraying. Engage red safety latch on the trigger gun. Take the chemical suction hose out of the detergent bottle. Disengage red safety latch on the trigger gun. For models with dual lance: With the dual lance pointed away from you, turn the black side handle of the dual lance in a clock wise rotation.
-
Page 9: Warranty
If a difficulty develops with the product, you should contact the nearest Authorized Repair Centre or Kodiak office. Only these locations are authorized to make repairs to the product or replacement of defective parts which will be done at no charge within a reasonable time after receipt of the product. -
Page 10: Troubleshooting
TROUBLESHOOTING Symptom Probably Cause(s) Corrective Action Pump running normally but Unloader valve has not been Make sure unloader is low pressure at nozzle. properly set adjusted properly If the nozzle is worn, replace Incorrect nozzle being used Make sure nozzle is matched to the flow and pressure of the pump. -
Page 11: Pump Operation
PUMP OPERATION UNLOADER Turn Clockwise to Increase Pressure. PRESSURE GAUGE Turn Counter (Not available on all models) Clockwise to Decrease Pressure Oil Plug PUMP OUTLET THERMAL PROTECTOR VALVE SOAP INLET (This Image is a representation only) -
Page 12: Belt Maintenance
BELT MAINTENANCE This unit uses a belt and pulley assembly to transfer power from the motor to your pump. In order for this assembly to operate effectively, a V-belt is used to transmit torque. To adjust your belt to the correct depth setting, you should use the following formula. Depth = Belt Length X 0.016 If you have any questions or doubts relating to V-belt selection or pulley ratio, consult with the belt maker.
