Envision G19LWK Owner's Manual

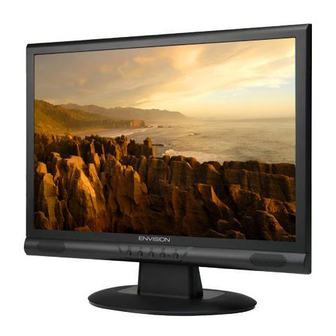

High-resolution multi-scan color monitor
Hide thumbs

Advertisement

Table of Contents

G19LWk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G19LWK and is the answer not in the manual?

Questions and answers

Related Manuals for Envision G19LWK

Summary of Contents for Envision G19LWK

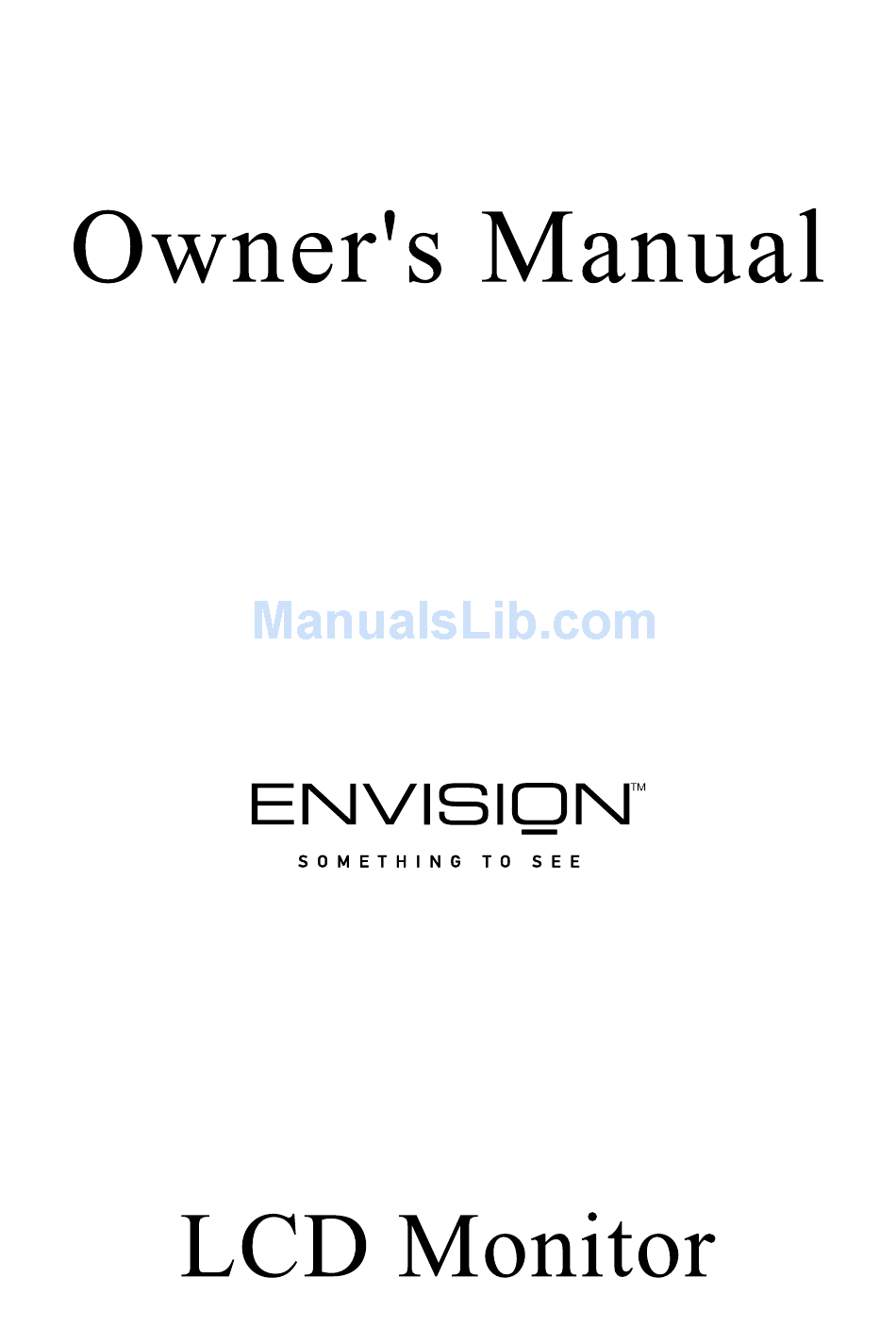

  • Page 1 G19LWk...

  • Page 2: Operation Instructions

    FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation.

  • Page 3: Table Of Contents

    Content Safety Precautions...1 First Setup ...2 Quick Installation...2 Front View of the Product ...4 Rear View of the Product ...4 Using On Screen Display (OSD) Functions ...5 Supporting Timing Modes ...8 Technical Information...9 Care and Maintenance...10 Troubleshooting ...10...

  • Page 4: Safety Precautions

    WARNINGS: This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you’re unsure of the power supply in your residence, consult your local dealer or power company.

  • Page 5: First Setup

    Connect the DVI cable from DVI output of computer to the DVI input of the monitor. Connect audio cable Connect one end of the audio cable to the back of the monitor and connect the other end to the computer's audio out port. Remove...
  • Page 6 Connect power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 6. Power-ON computer and monitor Power-ON the computer, then Power-ON the monitor. 7. Windows users: Setting the Timing Mode (Resolution and Refresh Rate) Example: 1440 x 900 @ 60 Hz Resolution Right-click on the Windows desktop >...

  • Page 7: Front View Of The Product

    Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ ➐ POWER INPUT ➑ AUDIO INPUT ➊ ➋ ➌ ➍ ➎ ➏ ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏ LED INDICATOR ➑...

  • Page 8: Using On Screen Display (Osd) Functions

    Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness.
  • Page 9 Short Cuts Function from the button(s) Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. : increase contrast, Brightness : To adjust the luminance of the video.
  • Page 10 Sharpness : To adjust the clarity of a non-WXGA (1440x900) signal with button. Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out, and Input Select (Analog). Language Select : To allow users to choose from available languages. Resolution Notice : Resolution Notice is to remind you set the best quality for the image.

  • Page 11: Supporting Timing Modes

    VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz...

  • Page 12: Technical Information

    Technical Information Technical Specification LCD Panel Power Management Displayable Resolution Pixel Dimension LCD Display Color Tilt Active Display Area Temperature Compliance Power Speaker 19.05” TFT Energy Star compliant VESA DPMS compatible < 1 W WXGA 1440 x 900 max. Vertical Frequency 75Hz max. 0.285 x 0.285 mm 16.2M 0°~20°...

  • Page 13: Care And Maintenance

    Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies. Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it.
  • Page 14 Wrong or abnormal colors If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer.
