Summary of Contents for Envision G2219W1

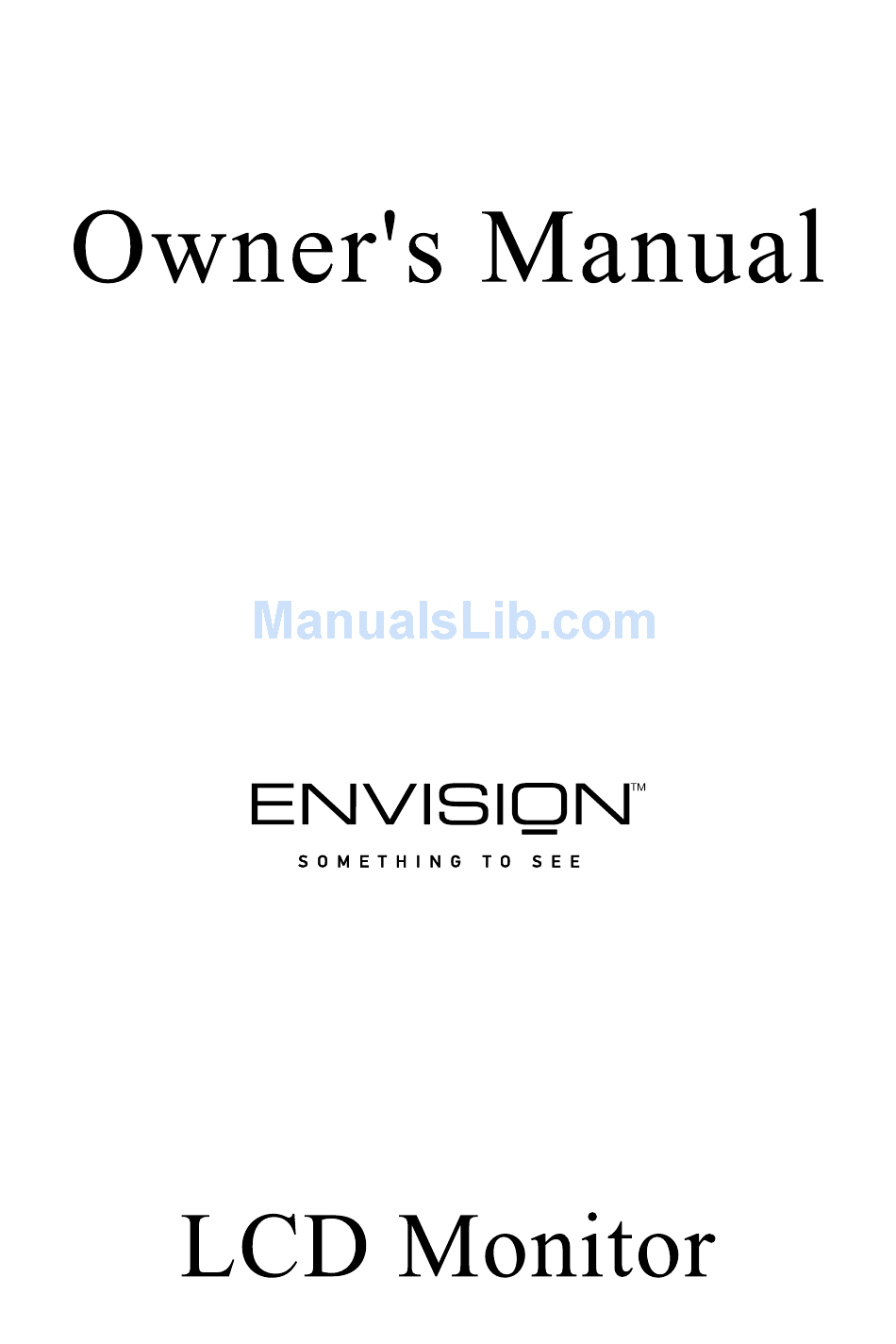

- Page 1 G2219w1...
-
Page 2: Operation Instructions
Reorient or relocate the receiving antenna. Move the monitor and the receiver further away from each other. Connect the monitor into an outlet on a circuit different from that to which the receiver is connected. Consult your local dealer or an qualified technician... -
Page 3: Table Of Contents
Safety Precautions...1 First Setup ...2 Quick Installation...2-5 Front View of the Product ... 6 Rear View of the Product ... 6 Using On Screen Display (OSD) Functions ...7-9 Supporting Timing Modes ...10 Technical Information...11 Care and Maintenance...12 Troubleshooting ...12 Content... -
Page 4: Safety Precautions
WARNINGS: This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you’re unsure of the power supply in your residence, consult your local dealer or power company. -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: Power Cable D-Sub Cable (15 pin) User’s Guide Quick Start Guide Warranty Documents Quick Installation Installing & Removing the Base Install Remove... - Page 6 Turn the power OFF then dis-connect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface. 1. Remove the plastic hinge cover. It is attached to the back of the monitor by hooks.
- Page 7 Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instrucstions on attaching it to the wall. NOTE The ENVISION G2219w1 is in compliance with the most current revision of the VESA 100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).
-
Page 8: Connecting The Monitor
Connecting the Monitor 1. Connect Power Cable Connect the power cable to the back of the monitor. Plug the power cable to a nearby power outlet. 2. Connect Analog video cable (D-Sub cable) Make sure both monitor and computer are powered OFF. Connect the video cable ( D-Sub cable) to the computer, then to the monitor. -
Page 9: Front View Of The Product
Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ POWER INPUT ➑ DVI INPUT (DVI 24 PIN) ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏ LED INDICATOR ➒ VGA INPUT (D-SUB 15 PIN) -
Page 10: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when at root menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness. -
Page 11: Osd Functions
OSD Functions Auto Image Adjust : Phase (Fine Tune) and Clock (H. Size) of the screen. Available in Analog mode only. Contrast : Adjust the foreground white level of screen image. : increase contrast, Brightness : Adjust the luminance of the video. : increase brightness, Contrast ratio will be DCR ON/OFF :... - Page 12 Fine Tune : Adjust the delay time of data and clock. Press ▼ or ▲to adjust to your preference. Sharpness : Adjust the clarity of a non-WSXGA (1680x1050) signal with ▼ or ▲ button. Aspect Ratio : To select the Aspect ratio is 16:10 or 4:3 Setup Menu : Set up Language Select, Resolution Notice, OSD Position, OSD Time Out, and OSD Background.
-
Page 13: Supported Timing Modes
VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz... -
Page 14: Technical Information
Technical Information Technical Specification 22”(548.6mm Viewable Image Size) TFT Widescreen LCD Panel Power Management EPA ENERGY STAR® Off Mode: <1W WSXGA 1680 x 1050 max. Vertical Frequency 60Hz Displayable Resolution max. Input Signal Analog (D-sub) & Digital (DVI) with HDCP LCD Display Color 16.7M Tilt... -
Page 15: Care And Maintenance
Make sure all signal cables are installed. Power on but no screen image Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it. Adjust brightness.
