Installing Wpims/Apims - Enterasys WPIM Hardware Installation

1. Attach the disposable grounding strap to your wrist.

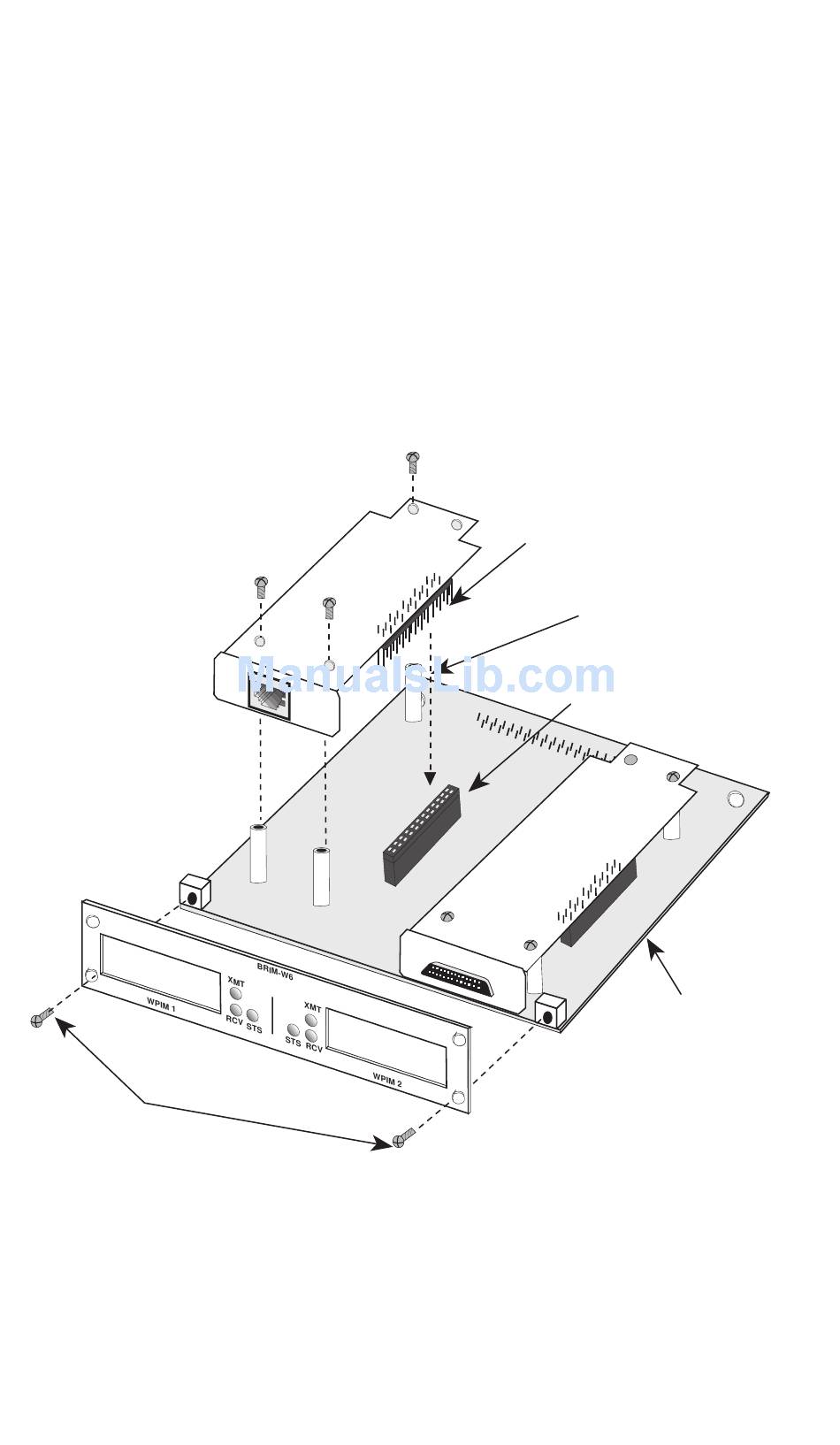

2. See figure and remove two faceplate screws from the
BRIM (three screws from an HSIM, not shown in figure).
3. Remove the faceplate.
4. Insert the connector pins of the WPIM (same procedure for
APIM, not shown) into the connector on the BRIM.
FACEPLATE SCREWS
5. Press down evenly and firmly on the WPIM until the pins
slide all the way into the connector holes. Ensure that the
WPIM seats flush on the standoffs.
6. Secure the WPIM using screws provided with the WPIM.
7. Attach the faceplate using the faceplate screws.

INSTALLING WPIMs/APIMs

WPIM CONNECTOR
STANDOFF
BRIM CONNECTOR
BRIM
1498_01
