MOBILE PHONE
S420
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Telefunken S420

Summary of Contents for Telefunken S420

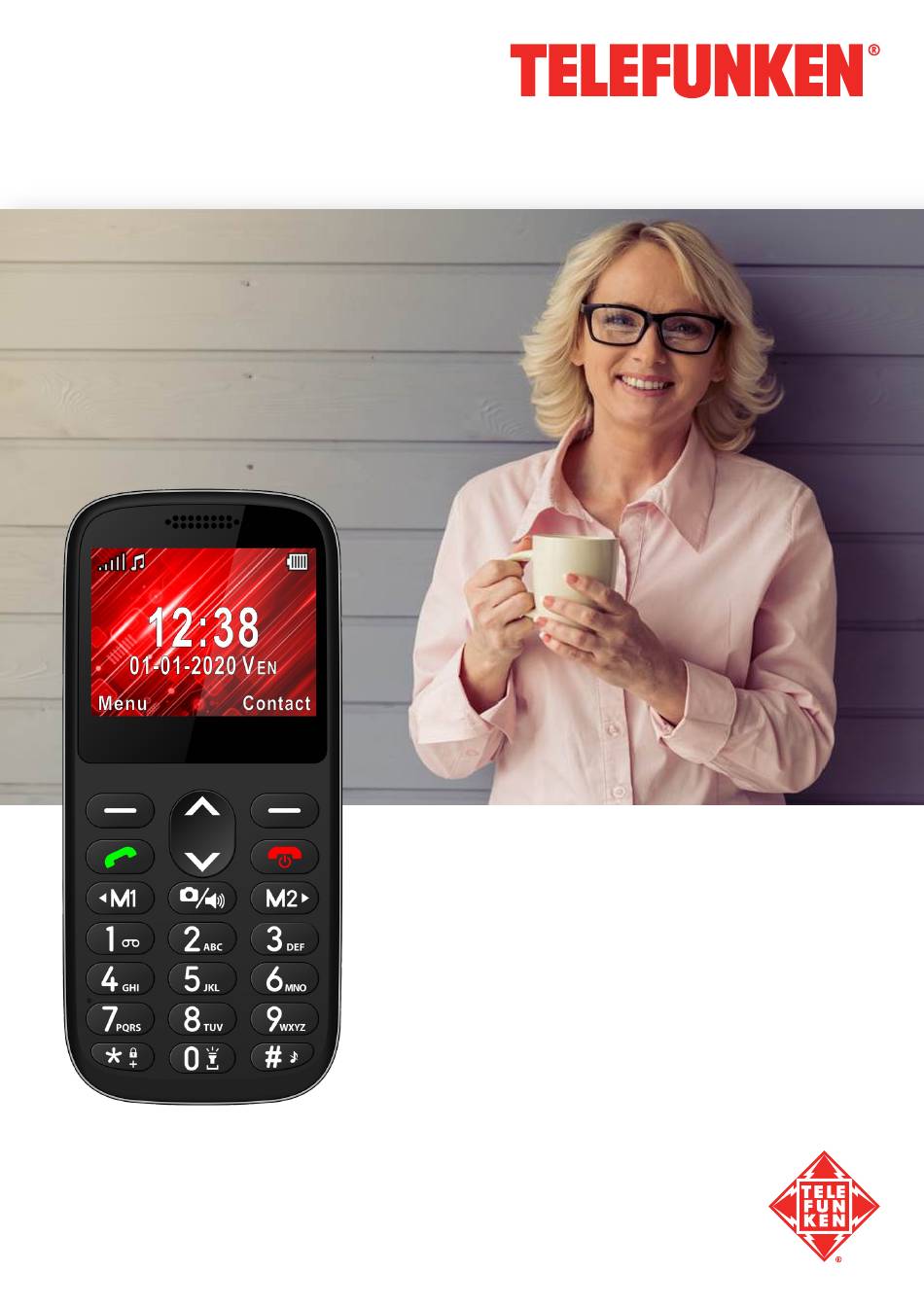

  • Page 1 MOBILE PHONE S420 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    DEAR CUSTOMER, Thank you for choosing our mobile phone. By reading this instruction manual before using this product you will have an overall knowledge of its simple but outstanding functions. This product is designed for GSM/GPRS networks. On top of basic functions, it enables you to use phone book, ringtones, clock/alarm, calendar, calculator, audio player, camera, sound recorder and other functions.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS Read this instruction manual carefully before use. It contains important information for your safety as well as operating and maintenance advices. Observe all safety instructions to avoid damage through improper use! Keep this instruction manual for future use. If this phone should be passed on to a third party, then this instruction manual must be included.
  • Page 4 ƒ Use the hands-free function of the phone, if available. Pull off the road and park before making or answering calls if conditions so require. 1.5 Medical devices/pacemakers ƒ When using your phone near pacemakers, stay a minimum distance of more than 6 inches away from the pacemaker when the phone is switched on.
  • Page 5 ƒ Safety regulations require permission from a crewmember for the use of phones while the plane is on the ground. If your mobile phone has the automatic power-on function, please ensure that it is turned off before the flight. 1.11 Battery use ƒ...

  • Page 6: Scope Of Delivery

    2. SCOPE OF DELIVERY Remove all packaging and dispose of accordingly. Carefully check below listed package content. If anything is missing, contact immediately your retailer. 1. S420 Mobile Phone 2. Hands-free Kit 3. Rechargeable Li-ion Battery 4. Travel charger 5. USB charging cable 6.

  • Page 7: Control Elements

    3. CONTROL ELEMENTS Left key: Earpiece fOK key fMain menu key Display fAnswer a call Right key: Call Key: fBack key fDial a number fPhonebook access fAnswer a call fReject a call fShow call history Up and Down Direction Keys Direct memory key f Navigate menu.
  • Page 8 3. CONTROL ELEMENTS Camera lens Speaker Emergency SOS button USB charging port Battery cover Cradle charging Earphone jack connector...

  • Page 9: Getting Started

    4. GETTING STARTED Prepare your phone, battery, SIM card, memory card (this is a must for camera and multimedia functions) and the charger. WARNING: ƒ The device and accessories contain small parts. Keep all the equipment out of the reach of children. ƒ...
  • Page 10 4.2 Installing the memory card (not supplied) WARNING: SIM cards and microSD cards are small objects, so keep them out of the reach of children. 1. Turn off the phone. 2. Open the battery compartment cover and remove the battery. 3.
  • Page 11 4.4 Charging the battery WARNING: When a travel charger and its accessories are used to charge the battery, check first whether they have been made or approved by the manufacturer. Using other accessories can damage your mobile phone and present a risk. Note: ƒ...

  • Page 12: Navigating Main Menu

    5. NAVIGATING MAIN MENU 5.1 Controls Down Left Right ƒ To access the main menu, press the left key on the left hand side of the keypad. ƒ To navigate up and down, press the key. To navigate left and right, press the key.
  • Page 13 5.3 Understanding icons Icon Description Icon Description Signal Strength for SIM Bluetooth Enabled ® No Signal or no SIM Card Alarm is set Dialing Call Battery Full Earphones connected New MMS Message (headset mode) MMS Message Read Keypad Locked Camera Mode New SMS Message Sound Recorder Sending Message...

  • Page 14: Sos Mode Function

    6. SOS MODE FUNCTION The SOS function is designed to contact your relatives or other persons in case of an emergency. The SOS function is deactivated by default. When these functions are activated, you can make an emergency call and send a customized SOS message. 6.1 Activating the SOS function 1.

  • Page 15: Basic Functions

    key to Save your settings 3. Press the right 7. BASIC FUNCTIONS 7.1 Making a call There are six ways to make a call. Choose one way as shown below, then press the to launch the call. ƒ From the main screen, enter the number directly using the keypad. ƒ...
  • Page 16 ƒ Sound recorder  Record current call. Select Options > Sound recorder to start recording. To stop the recording, select Stop in the sound recording interface. The recorded file will be stored in memory card or the phone. To play back the recorded file, go to Multimedia >...
  • Page 17 3. Press the left key to view the list of missed calls, dialed calls, received calls, or rejected calls respectively. To add a call log to a new contact 1. From the Missed calls, Dialled calls, Received calls and All logs list, select the number that you want to save.
  • Page 18 1. Go to Menu > Contacts. 2. Select Options > Settings > Photo contact. 3. Press the left key, then press the key to select a number from 1 to 8 in which a phone number is to be stored. 4.
  • Page 19 1. Go to Menu > Contacts. 2. Select Add new contact, then press the left key. 3. Select To Phone or To SIM to store the contact. Then press the left key to confirm. Note that saving To SIM will provide less options. 4.
  • Page 20 3. Select Options > Copy, and press the left key. 4. Select To Phone or To SIM to store the contact. Then press the left key to confirm. If the contact is saved in the phone, the newly saved contact name is marked with the phone symbol.
  • Page 21 ƒ Whenever you are in text entry mode, to enter a name, send a message or write a schedule, mobile phone will automatically change to letter mode. ƒ The letters written on numeric keys are entered depending on how many times you press the key.
  • Page 22 ƒ Writing language  Select a text language. ƒ Add picture  Access the photo list to select and insert picture. Use the key to select a photo file, then press the left key. ƒ Add sound  Access the audio file list to select and insert audio file. Use the key to select an audio file, then press the left...
  • Page 23 ƒ Ring volume  Adjust volume of incoming calls. ƒ Message  Select a ringtone of incoming messages. ƒ Keypad  Select a key tone or turn off the key tone. ƒ Keytone volume  Adjust volume of a key tone. ƒ...
  • Page 24 To use video recorder Go to Menu > Multimedia > Video recorder. h While in Video recorder menu, press the key to start, pause, or resume recording. Press the right key to stop recording. Press the left key to see available options: ƒ...
  • Page 25 To use audio player Tips: ƒ Audio player allows you to listen to audio files in various formats: WAV, AMR, MP3, MIDI, AAC. ƒ To increase or decrease the volume, press the key. Go to Menu > Multimedia > Audio player. While in audio player menu, press the key to start, pause, or resume audio playback.
  • Page 26 7.12 Using FM radio fSwitch to a lower- fSwitch to a higher- frequency radio frequency radio station station fPress to start or pause the radio playing This phone is equipped with a FM radio, which can be used with or without connected earphones.

  • Page 27: Using Additional Tools

    Note: Phone is also being charged when it is connected to PC/MAC. 8. USING ADDITIONAL TOOLS Tool Name Description Note: ƒ Day marked by yellow square is today's date. ƒ Day(s) marked by a pin note is a day(s) with existing event.
  • Page 28 Tool Name Description With this phone you can activate up to 5 different alarms. When phone is off, alarm can still be activated if battery is sufficiently charged. h Select an alarm from the alarm list, and press Edit to access the following options: ƒ...
  • Page 29 Tool Name Description h This feature helps to organise documents (pictures, songs and other files) on phone and/or memory card. h Select Phone or Memory card, and press the left key to access the folder list. Press the key to select a file folder, and press the left key to see the available options: File ƒ...

  • Page 30: Settings Guide

    9. SETTINGS GUIDE Setting Name Description Set time, date, time format and date format. h To set time and date, press the key to Set date and time move the cursor, and then press the numeric keys to input the entries. Set the time to turn on &...
  • Page 31 Setting Name Description ƒ Set a ringtone mode: General / Silent / Meeting / Outdoor. ƒ Personalize the ring tone, key tone, ring type, and adjust ring volume, etc (not applicable to Silent mode). For more information, see "7.10 Using sound profiles" on page 22. Profiles Tip: On the main screen, you can press and hold the # key to switch between ringtone modes.
  • Page 32 Setting Name Description ƒ You can establish a Bluetooth connection with ® another Bluetooth device in order to transfer ® files or play music via external Bluetooth ® speaker. ƒ This mobile phone is equipped with Bluetooth ® version 2.1 and can therefore encounter some difficulties connecting to other peripheral devices with a higher version.

  • Page 33: Cleaning Instructions

    This device complies with international safety standards for exposure to radio waves. The value recorded for the TELEFUNKEN S420 is 0.671 W/kg for Body and 0.382 W/kg for Head (average measurement for 10g of organic tissue). The maximum limit according to the WHO is 2 W/kg (average measurement for 10g of organic tissue) This device complies with international safety standards for exposure to radio waves.

  • Page 34: Disposal Instructions

    Bluetooth is a trademark of Bluetooth SIG, Inc. TELEFUNKEN and the TELEFUNKEN logos ® are trademarks of TELEFUNKEN Licenses GmbH.
