INSTALLATION GUIDE

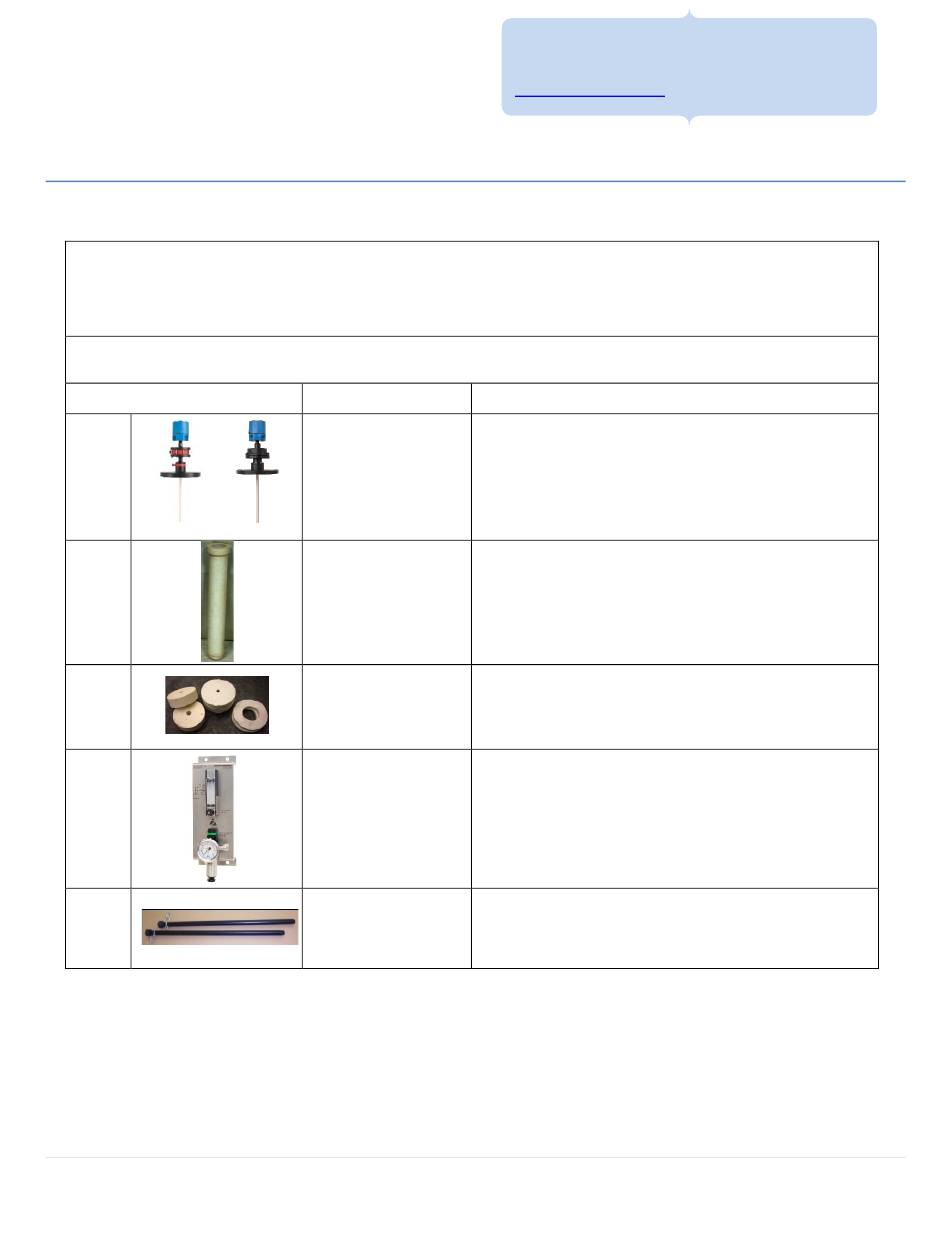

Components of the HTP/HTX Claus Thermal Reactor
Thermocouple System Referenced in this Manual
The following listed components are required for proper installation of the HTP/HTX. Failure to utilize
these components will reduce the life of the HTP/HTX and cause possible failure.
Model
HTP
HTX
HTP
HRW
HNP
HFS
HMB
Description
Claus Thermal
Reaction Furnace
Thermocouple
HTX
Refractory Well
Nozzle Insulation Kit
Flush Gas Control
Panel
(usually shipped
separately)
Horizontal Mounting
Bars
(usually shipped
separately)
A brief video presentation of the steps of the
complete HTP/HTX installation may be found at
www.claustemp.com/
Notes
Thermocouple assembly with mounting flange,
Body, purge connections, terminal enclosure housing
and element well.
Models HTP and HTX are identical in operation,
installation, and performance. Slight differences in
dimensions are shown at the end of this manual.
The large refractory well collar rests in the refractory and
protects the element well
Woven and Pressed Disks for proper insulation of the
nozzle, also protection against
buildup of sulfur in the nozzle, and for physical protection
of the inner element well
Includes flow indicator, flow control valve, pressure
regulator, filter, dripwell, and gage on stainless
steel panel with mounting hardware.
Assists installation in non-vertical nozzles.
nozzle overheating,
