Operation & Service Manual
Model: K-3864

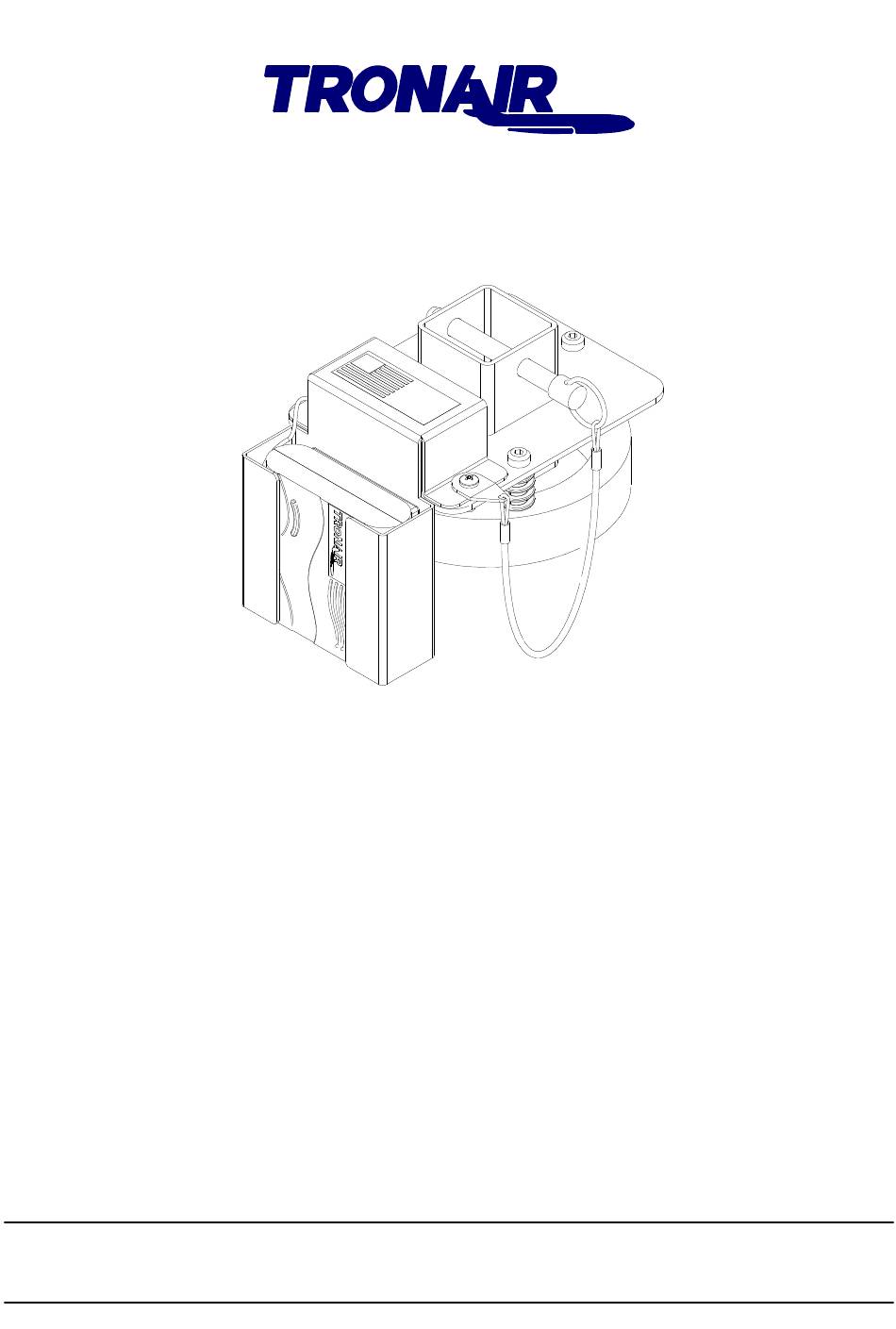

2 ¼ " Load Alarm Kit
06/2004 − Rev. OR
Includes Illustrated Parts Lists
Tronair, Inc.
1740 Eber Rd
Phone: (419) 866-6301
Holland, OH 43528-9794
www.tronair.com
800-426-6301
USA
Email: sales@tronair.com
Fax: (419) 867-0634
Advertisement
Related Manuals for Tronair K-3864
Summary of Contents for Tronair K-3864
- Page 1 Operation & Service Manual Model: K-3864 2 ¼ " Load Alarm Kit 06/2004 − Rev. OR Includes Illustrated Parts Lists Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com Fax: (419) 867-0634...
- Page 3 Model: K-3864 2 ¼" Load Alarm Kit TABLE OF CONTENTS PAGE Product Information ................................1 Safety Information ................................1 Alarm And Warning Systems ..........................1 Warning And Danger Signs ............................ 1 Component Safety Features ........................... 1 Functional Safety Features ............................. 1 Features For Operator Safety ..........................
- Page 5 2 ¼" Load Alarm Kit This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.
- Page 6 Model: K-3864 2 ¼" Load Alarm Kit SAFETY INFORMATION (continued) 2.12 CONDITIONS FOR SAFE USE • Use in a clean dry environment. • Operate between +4° C and 38° C/+40° F and 100° F. 2.13 OPERATOR QUALIFICATIONS This load alarm is intended to be used by a skilled and trained aircraft technician. The operator must be familiar with the jacking procedures for the aircraft to be raised, and the operation of a stabilizing stand.
- Page 7 Model: K-3864 2 ¼" Load Alarm Kit ASSEMBLY GENERAL INSTRUCTIONS This product should be assembled and/or repaired using good workmanship practices and proper tools. Bolts and elastic stopnuts should be tightened to a torque not to exceed industry standards for Grade '5' bolts.
-
Page 8: Numerical Values
Operate between +4° C and 38° C/+40° F and 100° F Load alarm is designed as an add-on kit for Tronair stabilizing stands only. Extension pin included with the load alarm kit replaces the use of the existing extension pin on the stabilizing stand. - Page 9 Model: K-3864 2 ¼" Load Alarm Kit MAINTENANCE GENERAL • All maintenance and/or repair work should be done using good workmanship practices and proper tools. • Load alarm shall be maintained and repaired in accordance with the manufacturer’s instructions. Such maintenance and repair shall be carried out by qualified persons.
-
Page 10: Battery Specifications
Model: K-3864 2 ¼" Load Alarm Kit Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. ITEM PART NUMBER DESCRIPTION 1 ......G-1493 ..........Pin, 3/8 diameter x 3 LG ............1 2 ......H-1026*07.0 ........Assembly, Cable ..............1 3 ...... - Page 11 13.0 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does...
