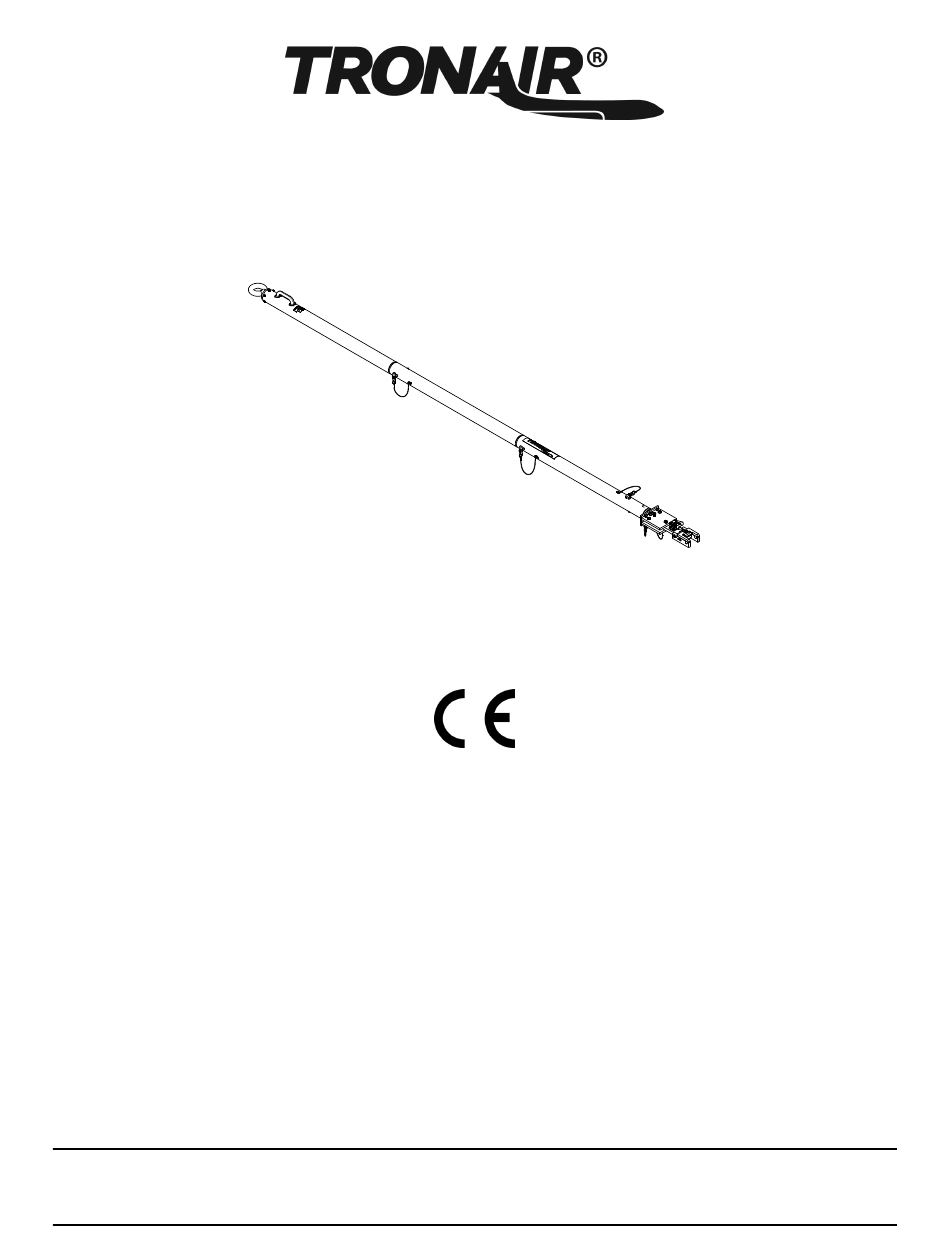

- Page 1 Operation & Service Manual Model: 01A1302-0000 Portable Towbar Embraer 170/175/190/195 Aircraft 08/2010 − Rev. 03 Includes Illustrated Parts Lists Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com Fax: (419) 867-0634...
- Page 2 REVISION DATE TEXT AFFECTED 11/2003 Original Release 09/2006 Added aircrafts 03/2007 Added CE marking 08/2010 Modified Parts List...
- Page 3 Model: 01A1302-0000 Portable Towbar - Embraer 170/175/190/195 Aircraft TABLE OF CONTENTS PAGE DESCRIPTION ................................1 SPECIFICATIONS ..............................1 SAFETY INFORMATION............................... 1 GENERAL .................................. 1 OPERATION .................................. 1 PRELIMINARY CHECKLIST ............................1 3.1.1 Towbar ..................................1 3.1.2 Towing Head ................................1 USAGE PROCEDURE ...............................
-
Page 4: Specifications
Tronair towbars/heads must only be used with matching Tronair heads/towbars, and Tronair shear pins. This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Usage Procedure
FIGURE 4 01-1950-5000 Standard Telecoupler Tronair recommends a telecoupler pintle hook arrangement. This arrangement is known to eliminate binding. Tronair offers a Standard Telecoupler, Model Number 01-1950-5000, for use on tugs. Reference Figure 4. 3.2.3 Couplers continued on the following page. -
Page 6: Training Program
To ensure proper towing and pushing, check to make sure the pintle pin diameter is not too long for the eyebolt's inside diameter. An approximate one-half inch (1/2") gap between the pin diameter and the eyebolt should be seen. If any of these conditions are not met, please contact Tronair for information to obtain a new coupler. - Page 7 GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the...
- Page 8 Model: 01A1302-0000 Portable Towbar - Embraer 170/175/190/195 Aircraft Parts List 08/2010 | Rev. 01 Page | 5...
- Page 9 Model: 01A1302-0000 Portable Towbar - Embraer 170/175/190/195 Aircraft Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description Z-7408 Weldment, Eyebolt G-1420-106012 Bolt, Hex Head Grade 8, 5/16-18 x 1 ¼ long...
- Page 11 APPENDIX - I Declaration Conformity...
-
Page 13: Declaration Of Conformity
Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the manufacturer: Quality Assurance Representative Tronair, Inc. 1740 Eber Rd Phone: (419) 866-6301 Holland, OH 43528-9794 www.tronair.com 800-426-6301 Email: sales@tronair.com...
