1. Align the plastic guide runner of the blank faceplate with the slotted paths on the top and bottom of the opening.
Forcing a misaligned blank faceplate into place can damage the chassis backplane.
!
CAUTION
2. With the blank faceplate inserted into the slotted paths, carefully slide the module forward until the front panel
of the blank faceplate is flush with the face of the 6C110. Do not force the blank faceplate into place. If
significant resistance is encountered before the front panel is flush, remove and reinsert the blank faceplate.
3. Secure the blank faceplate to the chassis by using a screwdriver to tighten the two slotted screws on the top and
bottom of the blank faceplate. For proper chassis grounding, the screws must be properly tightened.
4. Refer to the 6C110 Overview and Setup Guide for instructions on installing a power supply in the slot labeled
"PS1".
9033011
1 2 3 4
Metal Back-Panel

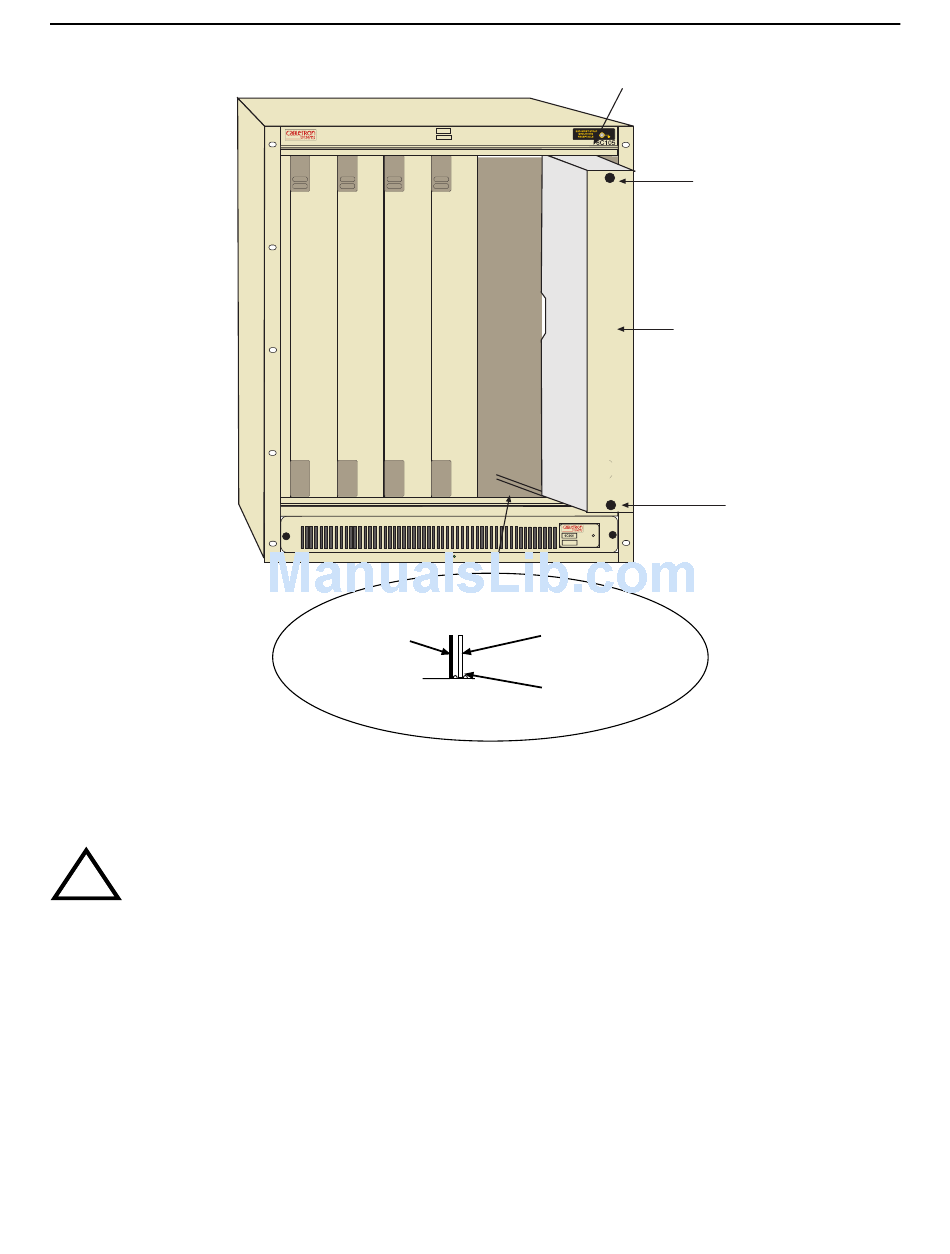

Figure 6 Installing the Blank Faceplate
6C110 Power Bridge Adapter Installation Instructions
Slot PS2
5 PS1 PS2
Plastic Guide Runner
Card Guide
Slotted Screw
Blank Faceplate
Slotted Screw
Page 6 of 7
