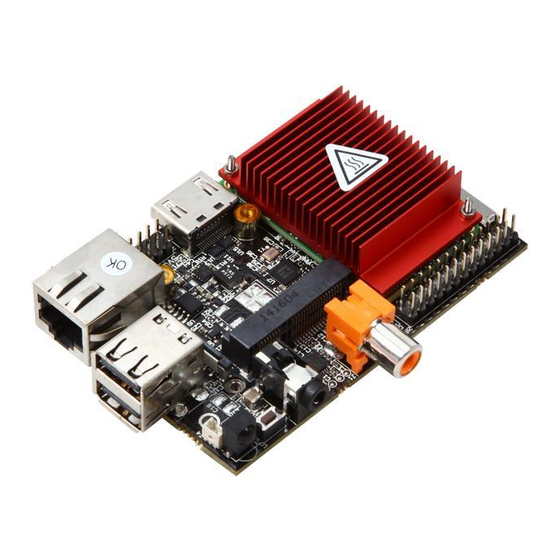

HummingBoard series
Contents of package
One HummingBoard board computer.
•
One Warranty note.
•
One User Manual
•
Models covered by this User Guide:
I1-310-D, I2-310-D,
Start by reading the safety notice below before making any adjustments
Setting up the system
1. The HummingBoard boots from the microSD. If you purchased a pre-loaded microSD then skip to
step #3.
2. When using your own micro SD device, we recommend a 4GB micro SD class4 or higher.
3. Power Adapter: you may choose your own power adapter, make sure to use a power adapter with the
following specification:
Regulated 5V supply with 2A source capacity.
Micro USB plug type.
Use only limited power source (LPS) power adapter with adequate protections. Power adapter
should meet local safety regulations.
4. To run applications or distributions on your HummingBoard, you must install them on the microSD card.
Visit this link for more details:
http://www.solid-run.com/support/install-os-micro-sd-flash-card/
5. Once you have your HummingBoard, microSD and power adapter ready, insert the micro SD in the
microSD slot with the microSD pins facing up.
6. Connect an Ethernet cable to your HummingBoard device if network connectivity is desired.
7. Connect the HummingBoard to a display screen via an HDMI cable.
8. Connect your power adapter to the Micro USB connector, and then connect the adapter to mains
supply.
Arrow.com.
Downloaded from
SOLIDRUN LTD
SolidRun Ltd.
P.O Box 75
Migdal-Tefen, 2495900
ISRAEL
http://www.solid-run.com/
Quick User's Guide
I2eX-310-D, I4-310-D
such as connecting an RTC backup battery
| P a g e
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HummingBoard Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SolidRun HummingBoard Series

Summary of Contents for SolidRun HummingBoard Series

  • Page 1 SOLIDRUN LTD HummingBoard series SolidRun Ltd. P.O Box 75 Migdal-Tefen, 2495900 ISRAEL http://www.solid-run.com/ Quick User’s Guide Contents of package One HummingBoard board computer. • One Warranty note. • One User Manual • Models covered by this User Guide: I1-310-D, I2-310-D,...

  • Page 2: Product Information

    A red LED (see Indication LEDs in diagram below for LED location), indicating that the system is powered on. The system should be up and running in few moments, and your OS of choice should be displayed on the monitor: Figure 1 Example: Android Operating System It is recommended to visit the “Getting Started”...
  • Page 3 Figure 2 HummingBoard key features | P a g e Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
  • Page 4 Figure 3 RTC Generation Circuit using NXP’s PCF8523 Interface Description I1-310-D, I2eX-310-D, I2-310-D I4-310-D Micro USB MicroUSB type connector for powering the Use 5V/2A Use 5V/2A HummingBoard and its accessories. User (See safety (See safety must connect a 5V limited power supply. section section See below safety notices for further safety...
  • Page 5 Connector panels and touch screen input method supported support. MicroSD MicroSD MUST be installed with proper Supported Supported operating system and application for proper operation of the device. mSATA Supports SSD Drive on a module with a Supported supported SATA high speed interface and mSATA mechanical form factor.

  • Page 6: Compliance And Safety Information

    • Consult the dealer or an experienced radio/TV technician for help. Modifications (FCC 15.21) Changes or modifications to this equipment not expressly approved by SolidRun Ltd. may void the user’s authority to operate this equipment. Canadian Compliance This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 7: Copyright Notice

    In some areas, the disposal of these items in household or business trash may be prohibited. Help us protect the environment - recycle! COPYRIGHT NOTICE Copyright © 2014 SolidRun | All rights reserved | P a g e Arrow.com.
