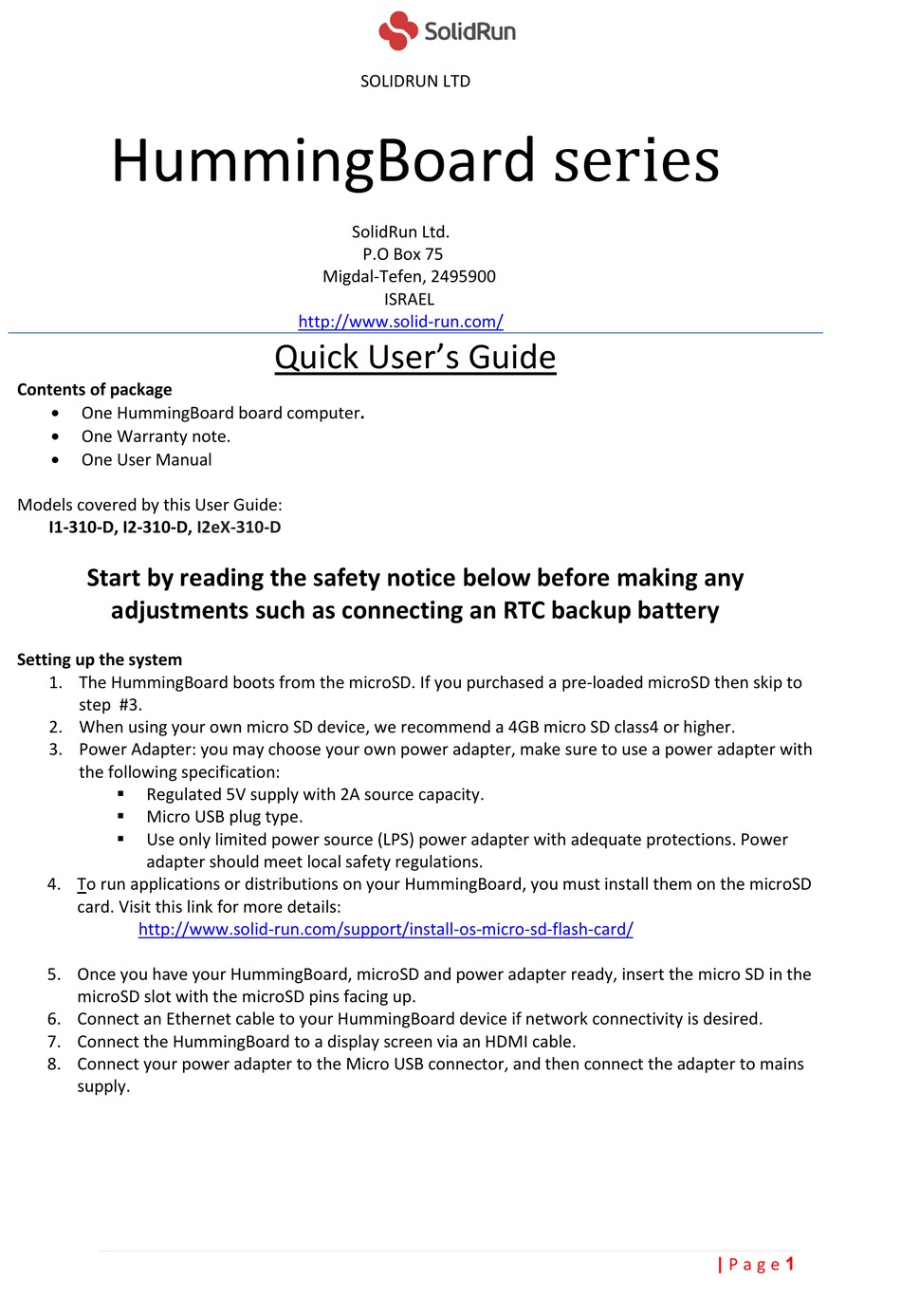

HummingBoard series
Contents of package
One HummingBoard board computer.
One Warranty note.
One User Manual
Models covered by this User Guide:
I1-310-D, I2-310-D,
Start by reading the safety notice below before making any
adjustments such as connecting an RTC backup battery
Setting up the system
1. The HummingBoard boots from the microSD. If you purchased a pre-loaded microSD then skip to
step #3.
2. When using your own micro SD device, we recommend a 4GB micro SD class4 or higher.
3. Power Adapter: you may choose your own power adapter, make sure to use a power adapter with
the following specification:
Regulated 5V supply with 2A source capacity.
Micro USB plug type.
Use only limited power source (LPS) power adapter with adequate protections. Power
adapter should meet local safety regulations.
4. To run applications or distributions on your HummingBoard, you must install them on the microSD
card. Visit this link for more details:
http://www.solid-run.com/support/install-os-micro-sd-flash-card/
5. Once you have your HummingBoard, microSD and power adapter ready, insert the micro SD in the
microSD slot with the microSD pins facing up.
6. Connect an Ethernet cable to your HummingBoard device if network connectivity is desired.
7. Connect the HummingBoard to a display screen via an HDMI cable.
8. Connect your power adapter to the Micro USB connector, and then connect the adapter to mains
supply.
SOLIDRUN LTD
SolidRun Ltd.
P.O Box 75
Migdal-Tefen, 2495900
http://www.solid-run.com/
Quick User's Guide
I2eX-310-D
ISRAEL
1
| P a g e
Advertisement
Table of Contents
Related Manuals for SolidRun HummingBoard I1-310-D
Summary of Contents for SolidRun HummingBoard I1-310-D
- Page 1 One Warranty note. One User Manual Models covered by this User Guide: I1-310-D, I2-310-D, I2eX-310-D Start by reading the safety notice below before making any adjustments such as connecting an RTC backup battery Setting up the system 1. The HummingBoard boots from the microSD. If you purchased a pre-loaded microSD then skip to step #3.
-
Page 2: Product Information
A red LED (see Indication LEDs in diagram below for LED location), indicating that the system is powered on. The system should be up and running in few moments, and your OS of choice should be displayed on the monitor: Figure 1 Example: Android Operating System It is recommended to visit the “Getting Started”... - Page 3 Figure 2 HummingBoard key features Figure 3 RTC Generation Circuit using NXP’s PCF8523 | P a g e...
- Page 4 Interface Description I1-310-D, I2eX-310-D I2-310-D Micro USB MicroUSB type connector for powering the Use 5V/2A Use 5V/2A HummingBoard and its accessories. User must connect a 5V limited power supply. See below safety notices for further safety instructions. HDMI Full HD HDMI output. Connect to your TV...
- Page 5 3. System Specifications Hardware: Below is a table summarizing HummingBoard features for all models. Model I1-310-D I2-310-D I2eX-310-D Commercial HummingBoard-i1 HummingBoard-i2 HummingBoard-i2eX name Chipset i.MX6 Solo i.MX6 Dual Lite i.MX6 Dual Core Count 1 @ 1 GHz 2 @ 1 GHz...
-
Page 6: Compliance And Safety Information
Follow local regulations regarding disposal of the product. Dispose of your product in accordance with local regulations. In some areas, the disposal of these items in household or business trash may be prohibited. Help us protect the environment - recycle! COPYRIGHT NOTICE Copyright © 2014 SolidRun | All rights reserved | P a g e...
