Enterasys Matrix E1 1H582-51 Datasheet

MATRIX E1 1H582-51 WORKGROUP SWITCH (WS)/
1G582-09 GIGABIT WORKGROUP SWITCH (GWS)
Full-Featured Layer 2
Switching and Robust Layer 3
Routing
The high-performance and
high-availability Matrix E1
switches provide versatility for
the workgroup.
• High-density Matrix workgroup switches with flexible uplinks
—
—
—
—
• Line-rate performance to support bandwidth-intensive applications
—
—
• Standards-based switching and routing support
—
—
• Superior Quality of Service (QoS)
—
—
—
—
• Simplified management
—
—
—
• Industry-leading security via Enterasys Secure Harbour™ framework
—
—
High-Density, High-Performance Switching for the Workgroup

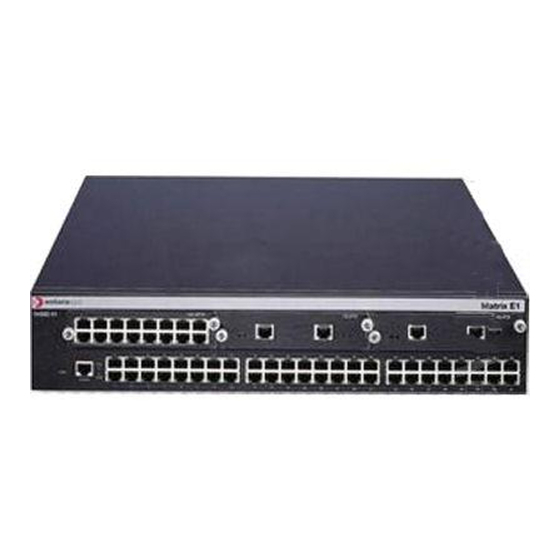

Ideally suited to high-performance workgroup deployment, the Matrix E1 1H582-51 Workgroup Switch (WS)
and 1G582-09 Gigabit Workgroup Switch (GWS) are wire-speed Layer 3 switches with full IP and IPX routing
functionality. The 1H582-51 provides 48 fixed 10/100 Ethernet ports and three flexible expansion slots, while
the Matrix 1G582-09 provides 6 fixed 10/100/1000Base-TX RJ45 ports as well as three flexible expansion slots. In
the Matrix WS and GWS switches, the expansion slots support 10/100 and Gigabit Ethernet connectivity.
Both of these switches feature a robust set of switching and routing features and built-in support for RMON,
port trunking and port mirroring capability as well as redundant AC power supplies.
Using advanced multilayer frame classification, both the 1G582-51 and 1G582-09 allow network
administrators to meet business needs by differentiating between business-critical and non-business critical traffic,
without sacrificing performance.
Additionally, the 1H582-51 and the 1G582-09 offer wire-speed performance and industry-leading switching
and routing features that allow them to seamlessly integrate into enterprise and service provider networks.
Finally, plug-and-play installation and advanced network management make the Matrix WS and GWS industry
leaders in their class.
48 fixed 10/100 Ethernet ports (1H582-51)
6 Gigabit Ethernet ports (1G582-09)
3 expansion slots support a variety of 10/100 or Gigabit Ethernet
connectivity options
Redundant AC input power
24 Gbps switching capacity
Exceeds 16 Mpps throughput
IEEE 802.1D; IEEE 802.1Q VLANs
IP v4 Routing; RIP v1/v2 and OSPF; PIM and IGMP multicast support; IPX routing
802.1p support
4 queues per port
DiffServ support
Hardware-based rate limiting
Extensive remote management capabilities via NetSight™
Management performed via CLI, web browser or any SNMP-based application
Supports RMON as well as extensive port trunking/mirroring
Supports management authorization and authentication via IP Access Control
Lists, RADIUS Authentication
Delivers port-based MAC address locking and support for the 802.1X
Authentication standard
Data Sheet
