Checking the Xpress XL Software Configuration

Before performing the initial test on the production system, check the system
configuration to ensure that certain items are set properly. This is done through the
ImageMaker (software) configuration utility.
Start the configuration utility
Click the Windows Start button, located on the lower-left corner of the desktop. From
the menu that pops up, work through the submenus to select ProgramsImageMaker

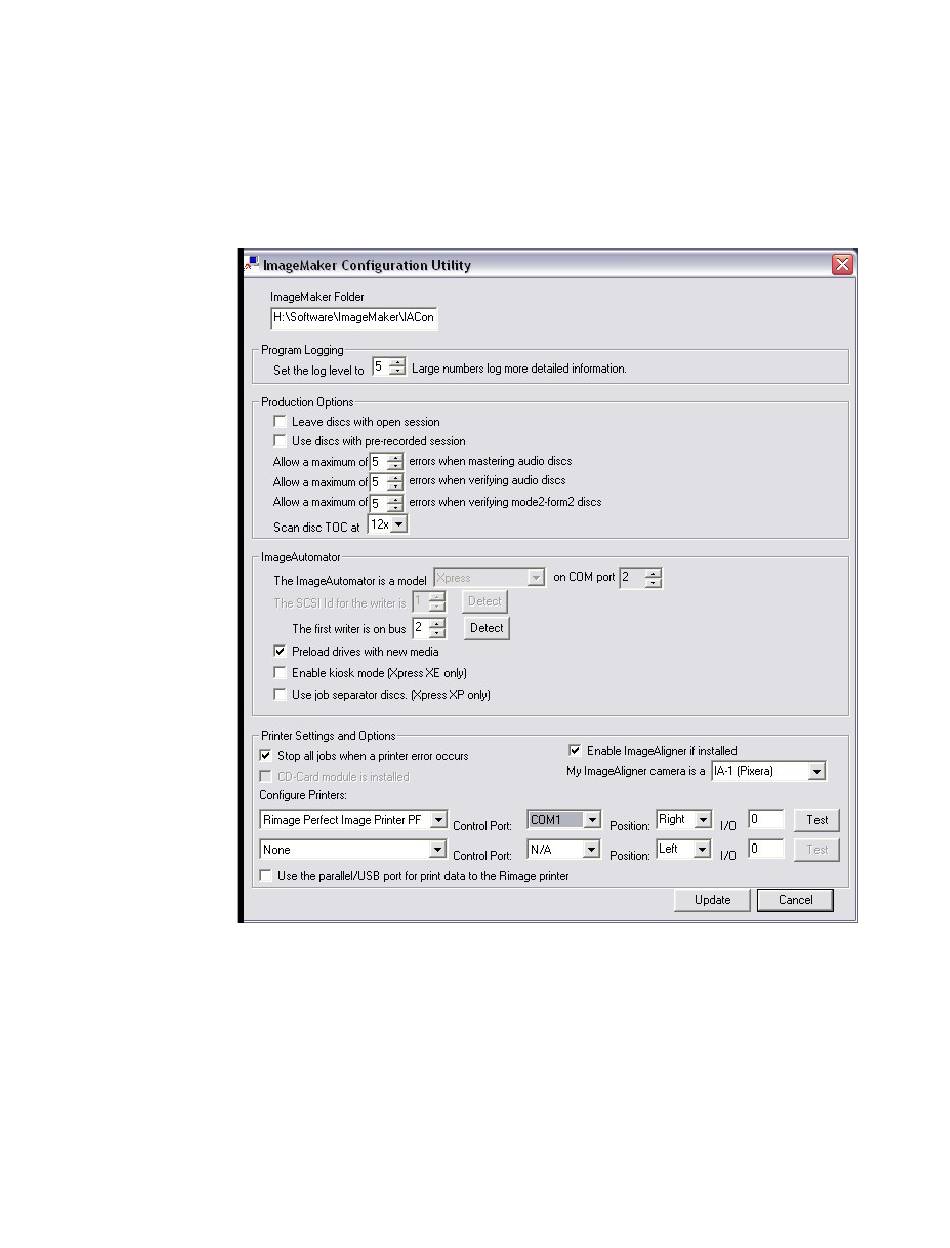

Configure ImageMaker. The configuration dialog, shown below, will open.
Check the following configuration items to make sure they're set correctly:
If a printer is installed, it must be identified in the printer settings and options
Select the printer names and position on the Xpress XL (left or right) from the drop
down menu and set the port in the following field accordingly. (If there's no printer,
ignore this setting.)
