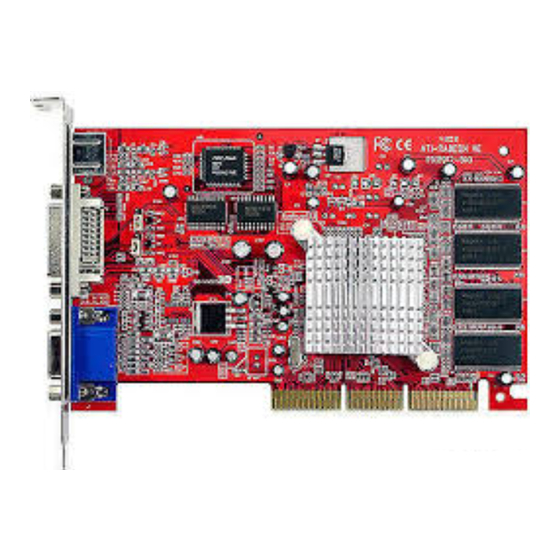

ATI Technologies RADEON Online Manual

Hide thumbs Also See for RADEON:
Table of Contents

Advertisement

Quick Links

Download this manual
Online Manual
Choose one of the following categories:
• RADEON™/RADEON™ VE Getting Started...
• User's Guides
• Technical Specifications
• Compliance Information
Part Number 137-40178-104

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RADEON and is the answer not in the manual?

Questions and answers

Related Manuals for ATI Technologies RADEON

Summary of Contents for ATI Technologies RADEON

  • Page 1 Online Manual Choose one of the following categories: • RADEON™/RADEON™ VE Getting Started... • User’s Guides • Technical Specifications • Compliance Information Part Number 137-40178-104...
  • Page 2 ALL-IN-WONDER® 128 PRO / ALL-IN-WONDER® 128 ALL-IN-WONDER® PRO ATI MULTIMEDIA CENTER Some ATI Graphics cards will not support all of the features and functionality in the ATI Multimedia Center ATI-TELETEXT MANUAL ATI-TV ATI-TV WONDER • RADEON™ / RADEON™ VE Using Video In/Video Out...

  • Page 3: Technical Information

    Technical Information Technical Information Click on your product: • ALL-IN-WONDER® RADEON™ • RADEON™ 32MB SDR • XPERT 2000 • ALL-IN-WONDER® 128 PRO • RADEON™ VE • XPERT 128 • ALL-IN-WONDER® 128 • RAGE FURY MAXX • XPERT 99 • ALL-IN-WONDER® PRO •...
  • Page 4 NOTE: Before installing your RADEON™/RADEON™ VE we recommend that you first uninstall the driver for your current video card and reconfigure your operating system to use the standard display driver (VGA) supplied with your operating system.

  • Page 5: Important Safety Instructions

    Safety Instructions for TV Tuner Products IMPORTANT SAFETY INSTRUCTIONS • Read Instructions - All the safety and operating instructions should be read before the product is operated. • Retain Instructions - The safety and operating instructions should be retained for future reference. •...
  • Page 6 Installing Your RADEON™/RADEON™ VE Now that you have prepared your computer, you are ready to install your RADEON™/RADEON™ VE graphics accelerator card. To install your graphics accelerator card Power off the computer and monitor, then disconnect the display cable from the back of your computer.
  • Page 7 RADEON™ VE CARD Plug the display cable into your card; then turn on the computer and monitor. If your RADEON™/RADEON™ VE came with a DVI connector, you can connect a flat panel display to the appropriate connector, as shown below...
  • Page 8 Me running on your computer, you need to install the ATI driver to take advantage of the higher performance, resolutions, and special graphic features of the RADEON™/RADEON™ VE. To ensure you install the latest driver, use the ATI Installation CD that shipped with your RADEON™/RADEON™...
  • Page 9 9 Follow the Wizard’s on-screen instructions to complete the installation. Express installation option recommended. your RADEON™/RADEON™ VE includes a multimedia component, the software for that component will automatically be installed, along with the ATI driver, by selecting this option. ® Installing the ATI Driver for Windows 2000 ®...

  • Page 10: Troubleshooting Tips

    ® ® Multiple Display Support: Windows 98 SE, Windows IMPORTANT: Please read the Readme file on the ATI Installation CD for the latest information regarding Multiple Display Support. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or ATI for more advanced troubleshooting information.

  • Page 11: Using The Online Manual

    ATI is a registered trademark of ATI Technologies Inc. in Canada, the United States and/or other countries. RADEON is a trademark of ATI Technologies Inc. in Canada, the United States, and/or other countries. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.

  • Page 12: System Requirements

    RADEON™ VE Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. CD-ROM drive required for software installation. ® DVD drive required for DVD playback with a Pentium II processor (or equivalent) and 32MB of system memory.

  • Page 13: Video Mode Table

    Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table RADEON VE Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution...
  • Page 14 RADEON VE Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution (Hz) (kHz) (MHz) 1024x768 72.8 100.1 • • • 1024x768 81.4 113.3 • • • 1024x768 98.7 139.0 • • • 1024x768 116.6...
  • Page 15 RADEON VE DVI (Flat Panel Display) Modes Display Screen Resolution Refresh Rate (Hz) 640x480 800x600 1024x768 1280x1024 (Flat Panel) display cannot used concurrently with TV-output display. DVI “hotplugging” is not supported. RADEON™ VE...
  • Page 16 RAGE FURY MAXX Technical Information System Requirements ® ® Pentium 4/III/II, AMD K6/Athlon, or compatible system with AGP 2X or AGP 2X/4X universal slot (2.0 compliant). CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows 98 only).
  • Page 17 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification CISPR2:1998-Class B-Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment.
  • Page 18 RAGE FURY MAXX 64 MB *Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel 2D Display 3D Display Screen Rate Scan Clock Modes Modes Resolution (Hz) (kHz) (MHz) 8 16 24 *32 8 16 24 *32 1024x768 81.4 113.3 •...
  • Page 19 ALL-IN-WONDER® PRO ALL-IN-WONDER® Technical Information System Requirements ® All-In-Wonder® Pentium III/II/Pro, Celeron™ or compatible systems with 33MHz PCI local bus 2.1. ® All-In-Wonder® Pro PCI Pentium 4/III/II/Pro, Celeron™ or compatible systems with 33MHz PCI local bus 2.1. ® All-In-Wonder® Pro AGP Pentium 4/III/II, Celeron™, or compatible systems with AGP 2X bus (AGP 1.0 compliant).
  • Page 20 Ambient Temperature 50° ° ° ° to 122° ° ° ° F (10° ° ° ° to 50° ° ° ° C). Operating 32° ° ° ° to 162° ° ° ° F (0° ° ° ° to 70° ° ° ° C). Storage Relative Humidity Operating...
  • Page 21 ALL-IN-WONDER and ALL-IN-WONDER PRO Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel Screen Rate Scan Clock 2 MB 4 MB 6 MB or 8 MB Resolution (Hz) (kHz) (MHz) 8 16 24 *32 8 16 24 *32 8 16 24 *32 1024x768 76.2 100.0...
  • Page 22 ALL-IN-WONDER® 128 PRO Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 4X/2X slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 23 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table ALL-IN-WONDER 128 PRO Video Mode Table Colors Refresh...
  • Page 24 ALL-IN-WONDER 128 PRO Video Mode Table Colors Refresh Hor. Pixel (Bits Per Pixel) Display Screen Rate Scan Clock Resolution 32 MB (Hz) (kHz) (MHz) 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 • • • • 1024x768 68.7 94.5 •...
  • Page 25 ALL-IN-WONDER 128 PRO Video Mode Table Colors Refresh Hor. Pixel (Bits Per Pixel) Display Screen Rate Scan Clock Resolution 32 MB (Hz) (kHz) (MHz) 1800x1440 97.1 238.5 • • • • 1800x1440 104.9 249.9 • • • • 1920x1080 67.0 172.7 •...
  • Page 26 ALL-IN-WONDER ® Technical Information System Requirements ® PCI Version Pentium 4/III/II or compatible with 33MHz PCI local bus 2.1 ® AGP Version Pentium 4/III/II or compatible with AGP 2X bus (AGP 2.0 compliant) CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 27 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >250,000 hours. EMC Certification FCC Class B. Video Mode Table ALL-IN-WONDER 128 Video Mode Table Colors Refresh...
  • Page 28 ALL-IN-WONDER 128 Video Mode Table Colors Refresh Hor. Pixel (Bits Per Pixel) Display Screen Rate Scan Clock Resolution 32 MB (Hz) (kHz) (MHz) 1024x768 56.5 75.0 • • • • 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 •...
  • Page 29 ALL-IN-WONDER 128 Video Mode Table Colors Refresh Hor. Pixel (Bits Per Pixel) Display Screen Rate Scan Clock Resolution 32 MB (Hz) (kHz) (MHz) 1800x1440 89.4 219.5 • • • • 1800x1440 97.1 238.5 • • • • 1800x1440 104.9 249.9 •...
  • Page 30 RAGE FURY Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 4X/2X slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 31 VIP Feature Connector 16 MB/32 MB: 26-pin dual row header (male), VESA standard. Power +5V ±5% @ 0.4 A typical. +3.3V ±5% @ 1.4 A typical. +12V ±5% @ 0.3 A typical. Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32°...
  • Page 32 RAGE FURY Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 800x600 63.6 68.1 • • • • 800x600 77.1 83.9 • • • • 800x600 105.4 116.4 •...
  • Page 33 RAGE FURY Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1600x1200 71.9 155.4 • • • • 1600x1200 75.0 162.0 • • • • 1600x1200 82.2 178.9 •...
  • Page 34 RAGE FURY PRO Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 4X/2X slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 35 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table RAGE FURY PRO Video Mode Table Colors (Bits Per Pixel) Display...
  • Page 36 RAGE FURY PRO Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel Screen Rate Scan Clock 16 MB 32 MB Resolution (Hz) (kHz) (MHz) 8 16 24 *32 8 16 24 *32 1024x768 60.0 78.8 • • • •...
  • Page 37 RAGE FURY PRO Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel Screen Rate Scan Clock 16 MB 32 MB Resolution (Hz) (kHz) (MHz) 8 16 24 *32 8 16 24 *32 1920X1200 74.5 193.1 • • • •...
  • Page 38 RAGE MAGNUM Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X slot. AGP 1.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported). ®...
  • Page 39 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table RAGE MAGNUM Video Mode Table Colors Display...
  • Page 40 RAGE MAGNUM Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1024x768 56.5 75.0 • • • • 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 •...
  • Page 41 RAGE MAGNUM Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1800x1440 89.4 219.5 • • • • 1800x1440 97.1 238.5 • • • • 1800x1440 104.9 249.9 •...
  • Page 42 XPERT 128 Technical Information System Requirements ® PCI Version Pentium 4/III/II or compatible with 33MHz PCI local bus 2.1 ® AGP Version Pentium 4/III/II or compatible with AGP 2X bus (AGP 2.0 compliant) CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 43 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table XPERT 128 Video Mode Table Colors Display...
  • Page 44 XPERT 128 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1024x768 56.5 75.0 • • • • 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 •...
  • Page 45 XPERT 128 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1800x1440 89.4 219.5 • • • • 1800x1440 97.1 238.5 • • • • 1800x1440 104.9 249.9 •...
  • Page 46 XPERT 98 XPERT LCD XPERT@WORK XPERT@PLAY Technical Information System Requirements ® AGP Version Pentium 4/III/II, Celeron™, or compatible with AGP 2X bus (AGP 1.0 compliant). ® PCI Version Pentium 4/III/II, Celeron™, or compatible with 33MHz PCI local bus 2.1. CD-ROM drive required for software installation.
  • Page 47 AMC Feature Connector 2x20 pin header. Shares the same footprint with the 2x13 pin VGA Feature Connector, VGA Out only, VESA standard. Power +5V ±5% @ 0.4 A typical. +3.3V ±5% @ 1.4 A typical. Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32°...
  • Page 48 XPERT 98 / XPERT LCD Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel 8 MB Screen Rate Scan Clock Resolution (Hz) (kHz) (MHz) 800x600 101.9 110.0 • • • • 800x600 125.9 135.0 • • • • 1024x768 35.5 44.9...
  • Page 49 XPERT@WORK / XPERT@PLAY Video Mode Table Pixel Colors (Bits Per Pixel) Display Refresh Hor. Clock 2 MB 4 MB 6 MB or 8 MB Screen Rate Scan (MHz Resolution (Hz) (kHz) 24 *32 16 24 *32 640x480 31.5 25.2 • •...
  • Page 50 XPERT@WORK / XPERT@PLAY Video Mode Table Pixel Colors (Bits Per Pixel) Display Refresh Hor. Clock 2 MB 4 MB 6 MB or 8 MB Screen Rate Scan (MHz Resolution (Hz) (kHz) 24 *32 16 24 *32 1152x864 90.2 135.0 • •...
  • Page 51 XPERT 99 Technical Information System Requirements ® ® Pentium 4/III/II, AMD K6/Athlon or compatible system with AGP 2X slot. AGP 1.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported). ®...
  • Page 52 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table XPERT 99 Video Mode Table Colors Display...
  • Page 53 XPERT 99 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 8 MB Resolution (Hz) (kHz) (MHz) 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 • • • • 1024x768 68.7 94.5 •...
  • Page 54 XPERT 2000 Technical Information System Requirements ® ® Pentium 4/III/II, AMD K6/Athlon, or compatible system with AGP 2X slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported). ®...
  • Page 55 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table XPERT 2000 Video Mode Table Colors Display...
  • Page 56 XPERT 2000 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1024x768 68.7 94.5 • • • • 1024x768 72.8 100.1 • • • • 1024x768 81.4 113.3 •...
  • Page 57 XPERT 2000 PRO Technical Information System Requirements ® ® Pentium 4/III/II, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 58 Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table XPERT 2000 PRO Video Mode Table Colors (Bits Per Pixel) Display...
  • Page 59 XPERT 2000 PRO Video Mode Table Colors (Bits Per Pixel) Display Refresh Hor. Pixel Screen Rate Scan Clock 16 MB 32 MB Resolution (Hz) (kHz) (MHz) 1024x768 68.7 94.5 • • • • • • • • 1024x768 72.8 100.1 •...
  • Page 60 RADEON™ 32MB DDR Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 61 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. RADEON 32MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel)
  • Page 62 RADEON 32MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution (Hz) (kHz) (MHz) 1024x768 125.7 176.9 • • • 1024X768 134.8 192.0 • • • 1024x768 153.5 218.6 • • •...
  • Page 63 RADEON 32MB DDR DVI (Flat Panel Display) Modes Display Screen Resolution Refresh Rate (Hz) 640x480 800x600 1024x768 1280x1024 DVI (Flat Panel) display cannot be used concurrently with TV-output display. DVI “hotplugging” is not supported. RADEON™ 32MB DDR...
  • Page 64 RADEON™ 64MB DDR Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 65 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. RADEON 64MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel)
  • Page 66 RADEON 64MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution (Hz) (kHz) (MHz) 1024x768 125.7 176.9 • • • 1024X768 134.8 192.0 • • • 1024x768 153.5 218.6 • • •...
  • Page 67 RADEON 64MB DDR DVI (Flat Panel Display) Modes Display Screen Resolution Refresh Rate (Hz) 640x480 800x600 1024x768 1280x1024 DVI (Flat Panel) display cannot be used concurrently with TV-output display. DVI “hotplugging” is not supported. RADEON™ 64MB DDR...
  • Page 68 RADEON™ 32MB SDR Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. AGP 2.0 compliant. CD-ROM drive required for software installation. ® DVD drive required for DVD playback (Windows NT 4.0 not supported).
  • Page 69 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. RADEON 32MB SDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel)
  • Page 70 RADEON 32MB SDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution (Hz) (kHz) (MHz) 1024x768 125.7 176.9 • • • 1024X768 134.8 192.0 • • • 1024x768 153.5 218.6 • • •...
  • Page 71 RADEON 32MB SDR DVI (Flat Panel Display) Modes Display Screen Resolution Refresh Rate (Hz) 640x480 800x600 1024x768 1280x1024 DVI (Flat Panel) display cannot be used concurrently with TV-output display. DVI “hotplugging” is not supported. RADEON™ 32MB SDR...
  • Page 72 ALL-IN-WONDER® RADEON™ Technical Information System Requirements ® ® Pentium 4/III/II, Celeron™, AMD K6/Athlon or compatible system with AGP 2X or AGP 2X/4X universal slot. AGP 2.0 compliant. ® Sound card supported by Windows with available line input. Interactive Program Guide requires Internet connection.
  • Page 73 Pentium® III recommended for full resolution MPEG-2 capture. Video capture capabilities are scalable to provide the best video capture possible with the CPU, memory and hard drive in the system. Power +5V ±5% @ 0.4A typical. +3.3V ±5% @ 1.4A typical. +12V ±5% @ 0.3A typical. ALL-IN-WONDER® RADEON™...
  • Page 74 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. ALL-IN-WONDER RADEON 32MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel)
  • Page 75 ALL-IN-WONDER RADEON 32MB DDR Video Mode Table Display Refresh Hor. Pixel Screen Rate Scan Clock Colors (Bits per pixel) Resolution (Hz) (kHz) (MHz) 1024x768 125.7 176.9 • • • 1024X768 134.8 192.0 • • • 1024x768 153.5 218.6 • •...
  • Page 76 ALL-IN-WONDER RADEON DVI (Flat Panel Display) Modes Display Screen Resolution Refresh Rate (Hz) 640x480 800x600 1024x768 1280x1024 DVI (Flat Panel) display cannot be used concurrently with TV-output display. DVI “hotplugging” is not supported. ALL-IN-WONDER® RADEON™...

  • Page 77: Fcc Compliance Information

    Compliance Information FCC Compliance Information This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 78: Industry Canada Compliance Statement

    Industry Canada Compliance Statement ICES-003This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B Respecte toutes les exigences du Règlement sur le matérial brouiller du Canada. CE Compliance Information EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-1, Generic Emissions Standard for Residential, Commercial...

  • Page 79: Product Notices

    (EN 55022/CISPR 22, Beschränkungen und Verfahren der Messung von informationstechnischen Ausrüstungen mit Funkstörmerkmalen) Warnung: Dies ist ein Erzeugnis der Klasse B. Dieses Erzeugnis kann Funkstörungen im Wohnbereich verursachen; in diesem Fall können entsprechende Maßnahmen seitens des Benutzers erforderlich sein. EN 50082-1. Allgemeiner Unempfindlichkeits-Standard für Haushalt- und kommerzielle Produkte sowie Erzeugnisse der Leichtindustrie (IEC 801-2, IEC 801-3, IEC 801-4) Product Notices...
  • Page 80 P/N: 117-40122-40 ATI and RADEON are registered trademarks of ATI Technologies Inc. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. Products may not be exactly as shown. Features, performance, and specifications may vary depending on operating environment and are subject to change without notice.

  • Page 81: Connecting A Video Device

    In connector on the back of your new graphics card. Connecting a Video Device To connect your RADEON™/RADEON™ VE to a video device such as a VCR, camcorder, or DVD player, attach a composite cable from the Composite Output connector on your VCR, camcorder, or DVD player to the Video In on your graphics card.

  • Page 82: View Your Pc's Display On A Tv

    TV or a VCR To connect your computer to a television or a VCR, attach a connector cable from the television (or VCR) to your RADEON™/RADEON™ VE. Most televisions (and VCRs) have a Composite video input, ( ). A...
  • Page 83 Enabling and Disabling the Television Display on page Video Input Composite Out S-Video Output VGA Monitor Connector Composite Input S-Video Input Computer Composite Cable S-Video Cable Figure 1. Connecting your RADEON™/RADEON™ VE card to a TV (or VCR) ATI Technologies Inc.
  • Page 84 Figure 2. Using a SCART connector with a Composite cable The SCART connector supports only the Composite video format, which is the most common type. Figure 2 shows how to connect your RADEON™/ RADEON™ VE to a European TV using the SCART.

  • Page 85: Starting Windows ® With Television Display Enabled

    This is only a temporary effect and your television screen will be restored within a few seconds. During start up, your RADEON™/RADEON™ VE will go through a sequence of mode settings during which your television display will remain blank. This process takes only a few seconds and helps program the television display.

  • Page 86: Reducing Edge Distortion

    ESC or wait for 15 seconds to see if your display will return. If your display does not return, you will need to connect a monitor to your computer to re-enable television display. RADEON™/RADEON™ VE Using Video In/Video Out...

  • Page 87: Using Games And Applications

    Using Games and Applications Some older games and applications may program your RADEON™/ RADEON™ VE card directly to run under a specific display mode. This may cause your television display to turn off automatically or become scrambled (the PC monitor will not be affected). Your television display will be restored once you exit the game or if you restart your computer.
