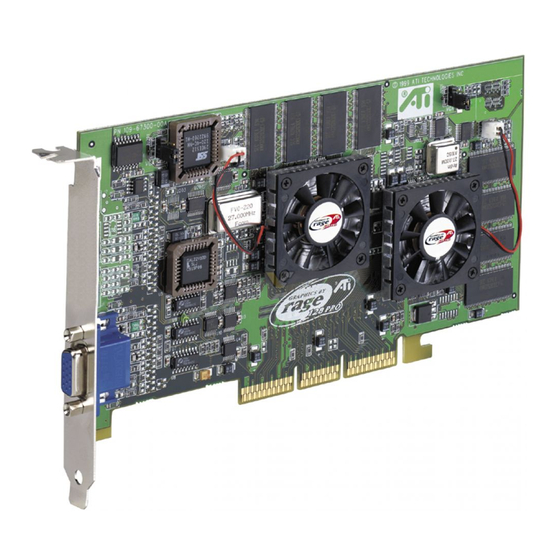

ATI Technologies 3D CHARGER User Manual

ATI Technologies 3D CHARGER User Manual

Hide thumbs Also See for 3D CHARGER:

Advertisement

Appendix 5. User Manual
Refer to the following pages
Unitech Electronics Co., Ltd.
VGA Card Xpert2000Pro
Report No: BWS-03-EF-0027
FCC ID : PAQXPERT2000
Date of Test : June 18, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D CHARGER and is the answer not in the manual?

Questions and answers

Summary of Contents for ATI Technologies 3D CHARGER

  • Page 1 Report No: BWS-03-EF-0027 FCC ID : PAQXPERT2000 Date of Test : June 18, 2003 Appendix 5. User Manual Refer to the following pages Unitech Electronics Co., Ltd. VGA Card Xpert2000Pro...
  • Page 2: Online Manual

    Online Manual Choose one of the following categories: Getting Started Guide Software User’s Guides Technical Specifications Compliance Information Part Number 137-40178-50...
  • Page 3 User’s Guides Click on your product: ALL-IN-WONDER 128 ALL-IN-WONDER PRO ATI MULTIMEDIA CENTER Some ATI Graphics cards will not support all of the features and functionality in the ATI Multimedia Center ATI-TELETEXT MANUAL ATI-TV ATI-TV WONDER USING VIDEO IN/OUT...
  • Page 4: Technical Information

    Technical Information Technical Information Click on your product: 3D CHARGER RAGE FURY MAXX XPERT 2000 ALL-IN-WONDER RAGE FURY PRO XPERT LCD ALL-IN-WONDER 128 RAGE MAGNUM XPERT@WORK ALL-IN-WONDER 128 PRO XPERT 98 XPERT@PLAY ALL-IN-WONDER PRO XPERT 99 RAGE FURY XPERT 128...
  • Page 5: Preparing Your Computer

    Getting Started... • Installing Your ATI Graphics Accelerator Card • Installing Enhanced Drivers for Windows® 95 and Windows® 98 • Installing Enhanced Drivers for Windows® NT • Multiple Display Support in Windows® 98 • Troubleshooting Tips • Using the Online Manual ATI’s graphics accelerators are the most advanced on the market today.
  • Page 6 Installing Your ATI Graphics Accelerator Card Now that you have prepared your computer, you are ready to install your graphics accelerator card. To install your graphics accelerator card Power off the computer and monitor, then disconnect the display cable from the back of your computer. VIDEO OUTPUT CONNECTOR DISPLAY CABLE...
  • Page 7 If necessary, remove the metal cover from the empty expansion slot that you select (PCI card use a PCI slot; AGP cards use an AGP slot); then align your new card with the expansion slot, and press it in firmly until the card is fully seated.
  • Page 8 ® Windows “New Hardware Found” ® ® If you are running Windows 95 or Windows 98, new hardware may be detected after you restart your computer. Follow the step-by-step instructions below to ® allow Windows to correctly identify your new hardware. ®...
  • Page 9 You are now ready to install your ATI enhanced drivers. Proceed to Installing Enhanced Drivers for Windows® 95 and Windows® 98 page 5, and follow the step-by-step instructions to complete the installation. To identify new hardware using “Add New Hardware Wizard” ®...
  • Page 10 9 Follow the Wizard’s on-screen instructions to complete the installation. The Express installation option is recommended. If your ATI product includes a multimedia component, the software for that component will automatically be installed, along with the ATI enhanced drivers, by selecting this option. ®...
  • Page 11: Troubleshooting Tips

    • If you install both a PCI and an AGP graphics card in the same system, the AGP graphics card will become the secondary graphics card, in most systems. Some manufacturers offer an upgraded BIOS that allows an AGP card to be designated as the primary graphics card. Contact your system vendor for details.
  • Page 12: Using The Online Manual

    Using the Online Manual Your graphics accelerator comes with an online manual that describes the extensive features of your graphics card. The Online Manual provides reference, specification, disclaimer, legal, and compliance information that is not contained in this paper guide. To open the Online Manual 1 Insert the ATI INSTALLATION CD-ROM into your CD-ROM drive.
  • Page 13: System Requirements

    XPERT™ 2000 Technical Information System Requirements ® Pentium II/III microprocessor-based, Celeron or compatible system with Accelerated Graphics Port (AGP) slot. AGP 1.0 compliant. CD-ROM drive required for software. ® ® DVD drive required for DVD playback. (Windows 95b, Windows Specifications ®...
  • Page 14: Video Mode Table

    Ambient Temperature Operating 50° to 122° F (10° to 50° C). Storage 32° to 162° F (0° to 70° C). Relative Humidity Operating 5% to 90% non-condensing. Storage 0% to 95%. MTBF >300,000 hours. EMC Certification FCC Class B. Video Mode Table XPERT 2000 Video Mode Table Colors Display...
  • Page 15 XPERT 2000 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1024x768 57.6 78.4 • • • • 1024x768 60.0 78.8 • • • • 1024x768 68.7 94.5 •...
  • Page 16 XPERT 2000 Video Mode Table Colors Display Refresh Hor. Pixel (Bits Per Pixel) Screen Rate Scan Clock 32 MB Resolution (Hz) (kHz) (MHz) 1600x1200 106.3 229.5 • • • • 1600x1200 113.8 251.2 • • • • 1792x1344 83.5 203.0 •...
  • Page 17: Fcc Compliance Information

    Compliance Information FCC Compliance Information This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 18: Industry Canada Compliance Statement

    Industry Canada Compliance Statement ICES-003This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la Classe B Respecte toutes les exigences du Règlement sur le matérial brouiller du Canada. CE Compliance Information EMC Directive 89/336/EEC and Amendment 92/31/EEC, Class B Digital Device EN 50081-1, Generic Emissions Standard for Residential, Commercial...
  • Page 19: Product Notices

    (EN 55022/CISPR 22, Beschränkungen und Verfahren der Messung von informationstechnischen Ausrüstungen mit Funkstörmerkmalen) Warnung: Dies ist ein Erzeugnis der Klasse B. Dieses Erzeugnis kann Funkstörungen im Wohnbereich verursachen; in diesem Fall können entsprechende Maßnahmen seitens des Benutzers erforderlich sein. EN 50082-1. Allgemeiner Unempfindlichkeits-Standard für Haushalt- und kommerzielle Produkte sowie Erzeugnisse der Leichtindustrie (IEC 801-2, IEC 801-3, IEC 801-4) Product Notices...
