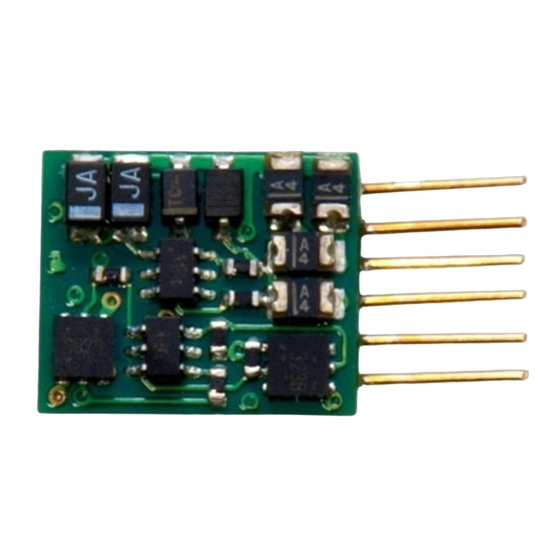

DZ126IN
Fits Many N and HO
Locomotives
.36" x .42" x .13"
9.05mm x 10.61mm x 2.67mm
Features:
▪
FX
Function outputs for prototypical lighting effects and on/off control:
3
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
FX
& Standard Function Qualifiers operate functions based on direc-
3
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Mapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls.
▪
Digitrax LocoMotion
The Digitrax LocoMotion System makes them run like the real thing, too!
Scaleable Speed Stabilization (Back EMF) with simple setup & 256
level resolution.
Torque Compensation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
Direct mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
Automatic Analog Mode Conversion when running on DC layout.
▪
Decoder Lock for individual programming of multiple decoders in one loco.
▪
Digitrax "No Worries" Warranty.
© 2014 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
N Scale
Mobile Decoder
1.0 Amp/1.5 Amps Peak
2 FX
with 6 Pin NEM 651 type plug
System-Your locomotives look like the real thing.
®
— 1 —
Functions, 0.5 Amp
3
www.digitrax.com
Advertisement
Table of Contents
Related Manuals for Digitrax DZ126IN
Summary of Contents for Digitrax DZ126IN
- Page 1 ▪ Digitrax LocoMotion System-Your locomotives look like the real thing. ® The Digitrax LocoMotion System makes them run like the real thing, too! Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution. Torque Compensation. 128 Speed Step operation (14 or 28 steps can also be used).
-
Page 2: Parts List
Carefully remove the locomotive’s shell from the frame. Notice the orienta- tion of the shell to the frame so that you can reinstall correctly. Remove the 6 pin analog shorting plug and in its place insert the DZ126IN decoder with the correct pin-1 orientation. The DZ126IN has 6 pins that insert directly into the 6 pin socket (NEM 651 type) on the locomotive’s PCB. - Page 3 Pin 1 Figure 2: Kato N-EMD class 66 with DZ126IN installed Test the locomotive on some track with a DCC system to verify motor and lights work in both directions. Reinstall the locomotive’s shell. For proper installation orientation in Bachmann Farish Jubilee, the Dapol Hymek and the Trix v160 N scale examples, please refer to page 9 in this guide.
-
Page 4: Installation Notes
Customizing Your Decoder Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming. For a more prototypical railroading experience, your decoder can be customized for your specific locomotive by programming some of the Configuration Variables, or CVs, available. - Page 5 Digitrax decoders are shipped with CV01 (AD2), the two digit address, set to 03. Following is a brief description of how to change the decoder address with a Digitrax DT4XX series throttle. See your Starter Set Manual for complete programming instructions.
- Page 6 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables. Please see your Decoder Manual for a discussion of the 28 Step Tables. The 3 Step Tables are set up by programming 3 CVs: Start Voltage (CV02), Mid point Voltage (CV06) and Max Voltage (CV05).
-
Page 7: Master Light Switch
Function Outputs on the DZ126IN The DZ126IN is set up at the factory to control two function outputs. The DZ126IN is configured to control the forward and reverse lights on the lo- comotive through the white lead and yellow lead using Function 0 (F0F-forward and F0R-reverse) for directional lighting. -
Page 8: Warranty And Repair
That’s it! A simple, straightforward warranty with no tricky language! Visit www.digitrax.com for complete warranty details and instructions for returning items for repair. Please return warranty items directly to Digitrax - DO NOT return items to place of purchase. © 2014 Digitrax, Inc. - Page 9 © 2014 Digitrax, Inc. — 9 — www.digitrax.com...
- Page 10 Installation orientation for Dapol Hymek © 2014 Digitrax, Inc. — 10 — www.digitrax.com...
- Page 11 Dapol Hymek DZ126IN Decoder Kapton Tape Installation Use Kapton or other plastic tape to cover orientation for the LED leads to prevent them touching Fox Valley N Scale the DZ126IN and causing damage © 2014 Digitrax, Inc. — 11 — www.digitrax.com...
- Page 12 DZ126IN Fits Many N and HO Scale Locomotives Super Available Computer Interface Decoder Programmer Sound Programmer 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Contact: www.digitrax.com/contact Part 15, Class B RFI Compliant Support: techsupport@digitrax.com Repair: repair@digitrax.com...
