Digitrax DZ123MK0 Quick Start Manual

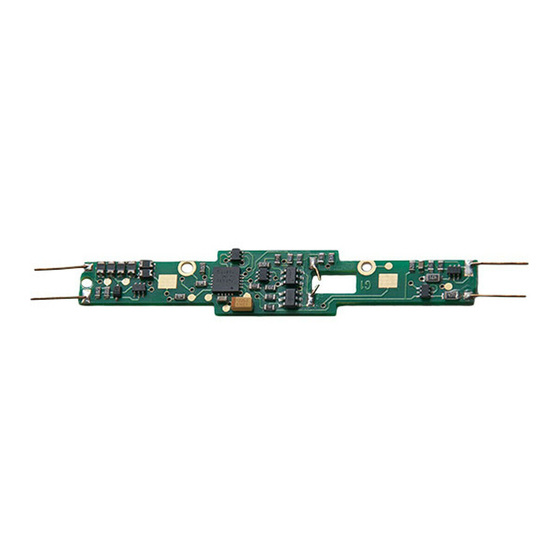

DZ123MK0
Fits Marklin Mini Club 88455
Features:
Digitrax LocoMotion
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level
resolution.
SuperSonic motor drive for silent operation.
FX Functions for prototypical lighting effects:
3
Constant Brightness Lighting with directional or independent control.
Dynamic and Static Qualifiers operate functions based on direction,
F0 on or off, loco direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Transponder equipped ready for transponding on your layout.
All Mode Programming with Operations Mode Read Back-read back CV
values right on the mainline.
Decoder Factory CV Reset with or without speed table initialize.
Motor Isolation Protection prevents damage to your loco and decoder.
Basic, Advanced & UniVersal Consisting
2 Digit and 4 Digit Addressing
DCC Compatible
©2012 Digitrax, Inc
Complete Train Control
Run Your Trains, Not Your Track!
®
System-Your locomotives look like the real thing.
www.digitrax.com
Mobile Decoder
DCC Board Replacement
1 Amp/1.25 Amp Peak
2 FX Functions, 0.5 Amp
3
Z Scale
1
