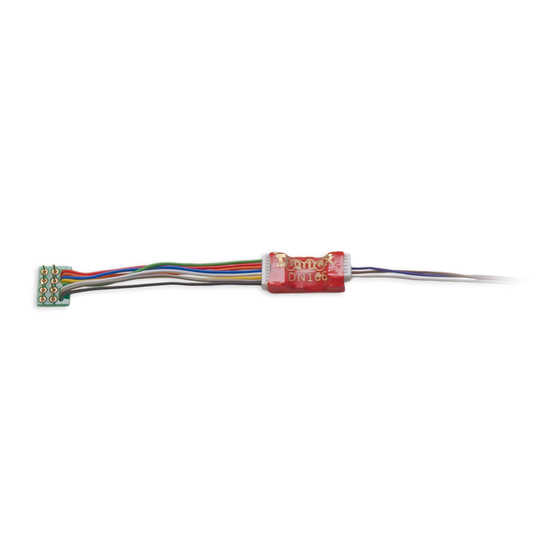

DN166PS
Fits Many N & HO Scale
Locomotives
0.87" x 0.4" x 0.2"
22.16mm x 10.28mm x 5.1mm
Features:
▪
FX
Function outputs for prototypical lighting effects and on/off control:
3
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
FX
& Standard Function Qualifiers operate functions based on direc-
3
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Mapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls.
▪
Digitrax LocoMotion
The Digitrax LocoMotion System makes them run like the real thing, too!
Scaleable Speed Stabilization (Back EMF) with simple setup & 256
level resolution.
Torque Compensation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
▪
Digitrax Easy Connect 8 Pin Plug to 8 pin DCC medium plug.
▪
Works with PX112-6F Power Xtender.
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive frequency adjustment for silent operation.
▪
Direct mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
Automatic Analog Mode Conversion when running on DC layout.
▪
Decoder Lock for individual programming of multiple decoders in one loco.
▪
Digitrax "No Worries" Warranty.
© 2014 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
System-Your locomotives look like the real thing.
®
— 1 —
N Scale
Mobile Decoder
1.0 Amp/1.5 Amps Peak
6 FX
Functions, 0.5 Amp
3
www.digitrax.com
Advertisement
Table of Contents
Related Manuals for Digitrax DN166PS
Summary of Contents for Digitrax DN166PS
- Page 1 ▪ Digitrax LocoMotion System-Your locomotives look like the real thing. ® The Digitrax LocoMotion System makes them run like the real thing, too! Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution. Torque Compensation. 128 Speed Step operation (14 or 28 steps can also be used).
-
Page 2: Parts List
The DN166PS uses the DNWHPS Digitrax Easy Connect 8 Pin Harness System which consists of a 2.0” harness that has a Digitrax 8-pin plug on one end and a DCC medium plug on the other. Remove the jumper plugs from the DCC medium socket on the factory light board and plug in the DCC plug end of the harness. -
Page 3: Installation Notes
Customizing Your Decoder Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming. For a more prototypical railroading experience, your decoder can be customized for your specific locomotive by programming some of the Configuration Variables, or CVs, available. - Page 4 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables. Please see your Decoder Manual for a discussion of the 28 Step Tables.
- Page 5 OFF. To turn on transponding, program CV61 to a value of 002. This al- lows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated.
-
Page 6: Master Light Switch
Function Outputs on the DN166PS The DN166PS is set up at the factory to control six function outputs. The DN166PS is configured to control the forward and reverse lights on the locomo- tive through the white lead and yellow lead using Function 0 (F0F-forward and F0R-reverse) for directional lighting. - Page 7 Figure 3: DN166PS: connection diagram © 2014 Digitrax, Inc. — 7 — www.digitrax.com...
- Page 8 DN166PS Fits Many N & HO Locomotives Super Available Computer Interface Decoder Programmer Sound Programmer 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Contact: www.digitrax.com/contact Part 15, Class B RFI Compliant Support: techsupport@digitrax.com Repair: repair@digitrax.com...
