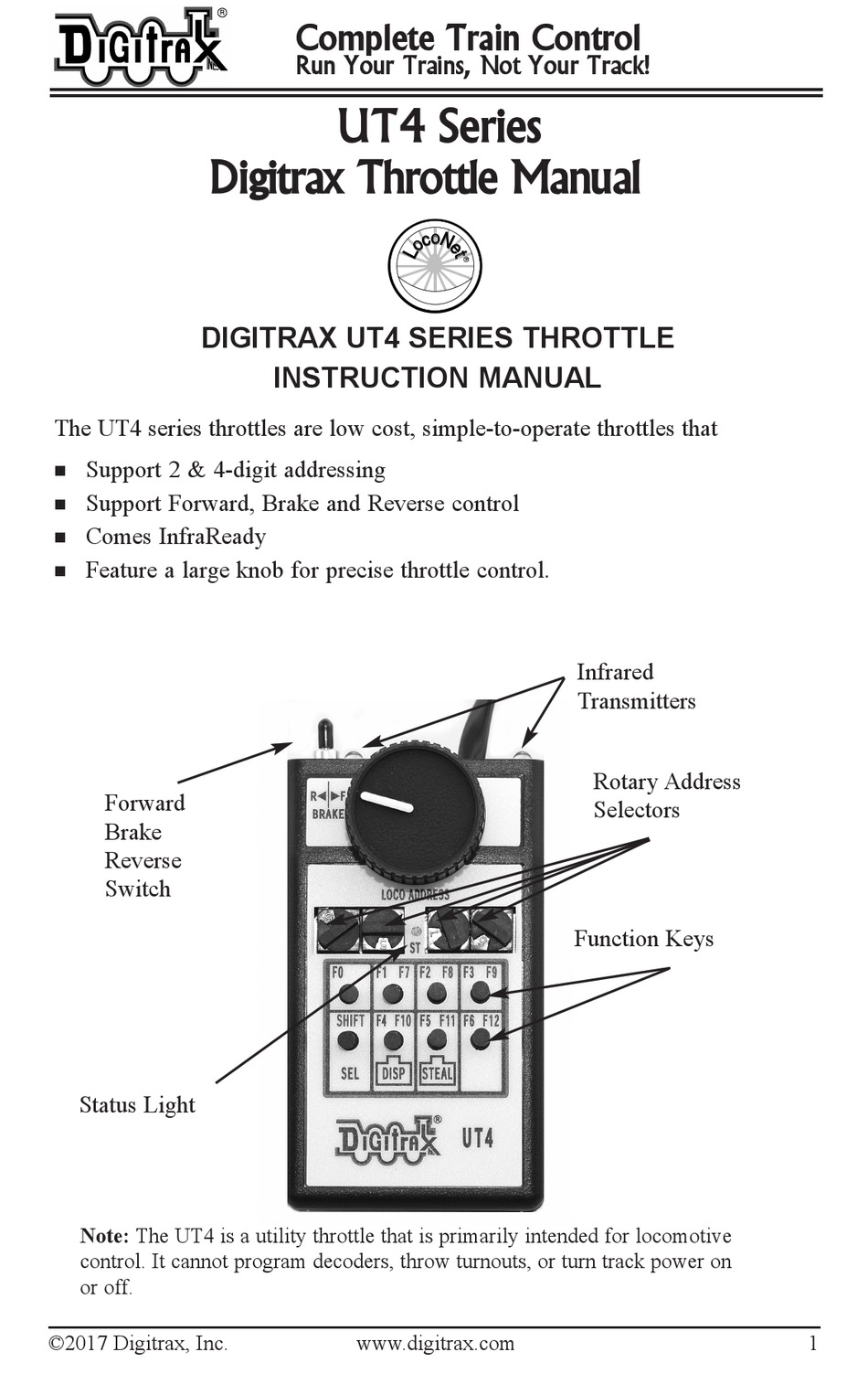

Digitrax Ut4 SerieS throttle

The UT4 series throttles are low cost, simple-to-operate throttles that

Support 2 & 4-digit addressing

Support Forward, Brake and Reverse control

Comes InfraReady

Feature a large knob for precise throttle control.

Forward

Brake

Reverse

Switch

Status Light

Note: The UT4 is a utility throttle that is primarily intended for locomotive

control. It cannot program decoders, throw turnouts, or turn track power on

or off.

Complete Train Control

Run Your Trains, Not Your Track!

UT4 Series

inStrUction ManUal

www.digitrax.com

Infrared

Transmitters

Rotary Address

Selectors

Function Keys

Table of Contents

Need help?

Do you have a question about the UT4 Series and is the answer not in the manual?

Page 1 UT4 Series Digitrax Throttle Manual Digitrax Ut4 SerieS throttle inStrUction ManUal The UT4 series throttles are low cost, simple-to-operate throttles that Support 2 & 4-digit addressing Support Forward, Brake and Reverse control Comes InfraReady Feature a large knob for precise throttle control.
Page 2 Dispatching is the process of releasing a loco so that another user can take con- trol of it. To release, or dispatch, a loco under current UT4 control: 1 Unplug the UT4 from the LocoNet port ©2017 Digitrax, Inc. www.digitrax.com...
Page 3 F7 through F12 key. All the UT4 functions work like other Digitrax throttles. The function keys toggle on and off with each press, except for F2, which is ON only when held down, and OFF when released. In Addition, the F2 key has a ‘Hold’...
Page 4 Digitrax, the Digitrax train logos, LocoNet, Evolution, Zephyr Xtra & others are trademarks of Digitrax, Inc. This manual may not be reproduced in any form or translated into other languages without Digitrax’s express permission. Get the latest version of all manuals at www.digitrax.com.
