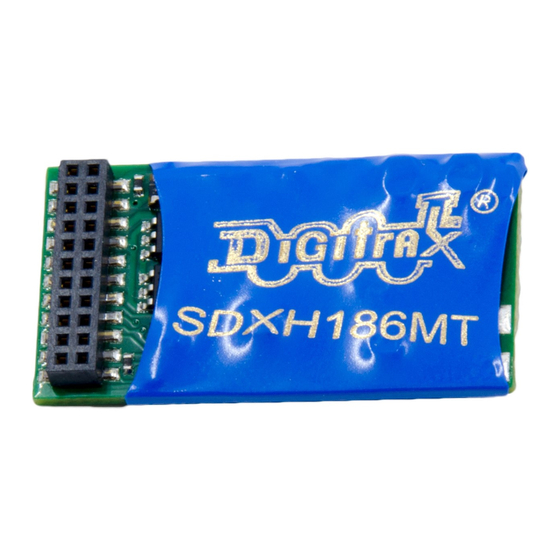

SDXH186MT
Fits many HO locomotives
8 Selectable Steam & Diesel Sound
Schemes Included
1.15"x.64"x.21"
29.28mm x 16.26mm x 5.34mm
Features:
▪
Digitrax SoundFX
Your locomotives will sound in scale like the real thing with SoundFX
Customizable 16, 12 or 8 Bit Sound
Works with SoundFX 8 and 16 Bit sound projects
4 Simultaneous voices
Downloadable Sound with Digitrax PR3 and SoundLoader 2.0 software
16 Megabit On board Sound Memory
1 Watt Sound Output
Cam input-synchronized steam-chuff option for steam locos
Scaleable Speed Stabilization(BEMF) optimized for sound operation
▪
Configurable Logic Level or 12v F3-6 function outputs.
▪
SoundFX does not require an external rate sensor to vary workload.
▪
Smart Power Management-no more booster or programmer shutdowns!
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
Compatible with Locomotives using the 21MTC Interface
▪
Series 6 Decoder Features.
▪
Works with PX112-10 Power Extender.
▪
Digitrax FX
3
effects and on/off control.
▪
Configurable FX
▪
Digitrax LocoMotion
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
Direct mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
DCC Compatible.
▪
FCC Part 15, Class B RFI compliant.
▪
Digitrax "No Worries" Warranty.
© 2017 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
®
Sound System
Functions-Control lights and functions for prototypical lighting
3
Pulse Function available on all function outputs.
System – Lets your trains run like the real thing!
®
SoundFX
HO Scale
Mobile Decoder with SoundFX
21MTC interface
1.0 Amp/2 Amps Peak
8 FX
3
Functions, 200ma output
— 1 —
®
www.digitrax.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SoundFX SDXH186MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitrax SoundFX SDXH186MT

Summary of Contents for Digitrax SoundFX SDXH186MT

  • Page 1 SoundFX does not require an external rate sensor to vary workload. ▪ Smart Power Management-no more booster or programmer shutdowns! ▪ Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment. ▪ Compatible with Locomotives using the 21MTC Interface ▪...

  • Page 2: Parts List

    ® 1 Instruction Sheet Installation Information See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information. Digitrax manuals and instructions are updated periodically. Please visit www.digitrax.com for the latest versions, technical updates and additional locomotive-specific installation instructions.
  • Page 3 Customize sounds by programming Sound CVs to adjust the desired config- urations, as shown in the following tables of SoundFX CVs. Sound schemes other than the 8 factory preloaded can be loaded by using a Digitrax PR3 SoundFX Programmer or DCS240.
  • Page 4 Configuration Variables, or CVs, available. Digitrax Sound decoders can be programmed using either a programming track or with the operations mode using the main line. See the Digitrax Decoder Manual or the Digi- trax web site for more information. CAUTION: Programming track must not exceed 16V when programming this decoder.
  • Page 5 Note: CV29 must also be programmed to enable 4 digit addressing, this is done automatically by the DT4XX throttles. See your Digitrax Decoder Manual or the Digitrax Toolbox App for how to set up CV29. Using this decoder in other locomotives...
  • Page 6 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Ta- bles and High Resolution 28 Step Tables. Please see your Decoder Man- ual for a discussion of the 28 Step Tables. The 3 Step Tables are set up by programming 3 CVs: Start Voltage (CV02), Mid point Voltage (CV06) and Max Voltage (CV05).
  • Page 7 Digitrax SoundFX System Digitrax SoundFX lets you make your locos sound in scale like the real thing! The SoundFX sound CVs in the range of CV140 to CV256 let you customize your decoder without having to reprogram or change the in- stalled sound scheme.
  • Page 8 3 whistles using CV150 and one of 4 bells using CV157. To enable playable volume for your selected horn or whistle add 128 to the selected value (ex. Playable volume on horn 2 is enabled with a value of 130, 02+128=130) © 2017 Digitrax, Inc. — 8 — www.digitrax.com...
  • Page 9 SoundLoader 2.0 software. Both the software and a number of alternate sound project files are available from the Digitrax Sound Depot web site. It takes only a few minutes to download the new sound to your decoder. The following tables show the CVs used in this decoder version and how it is set up at the factory to operate various sounds using your throttle.
  • Page 10 Horn=2 +128 for playable volume.) Auto Coupler Sequence Threshold Value-Peak speed to allow auto coupler/brake when direction change occurs and 00-64 F3 is ON Project Author ID, Digitrax=221 Project ID Steam Blow down / Safety Volume 0-64 Notching/Slip Mode: 00=Automatic,...
  • Page 11 Steam = Greaser Steam = Safety Blowoff SoundFX DC Operation Mode Digitrax SoundFX decoders will operate on smooth DC power. The sound will not start until approximately 7 volts is applied to the track and there will be no “start up sound.”...
  • Page 12 If the sound in your decoder shuts down after you stop it and you are not using a Digitrax system for control. On some DCC systems decoders are not addressed by DCC packets after the locomotive is set to 0 speed.

  • Page 13: Warranty And Repair

    That’s it! A simple, straightforward warranty with no tricky language! Visit www.digitrax.com for complete warranty details and instructions for returning items for repair. Please return warranty items directly to Digitrax - DO NOT re- turn items to place of purchase. © 2017 Digitrax, Inc. — 13 —...
  • Page 14 THIS PAGE LEFT INTENTIONALLY BLANK © 2017 Digitrax, Inc. — 14 — www.digitrax.com...
  • Page 15 THIS PAGE LEFT INTENTIONALLY BLANK © 2017 Digitrax, Inc. — 15 — www.digitrax.com...
  • Page 16 SDXH186MT Fits Many HO Locomotives with 21MTC interface 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Need Support? helpdesk.digitrax.com...
