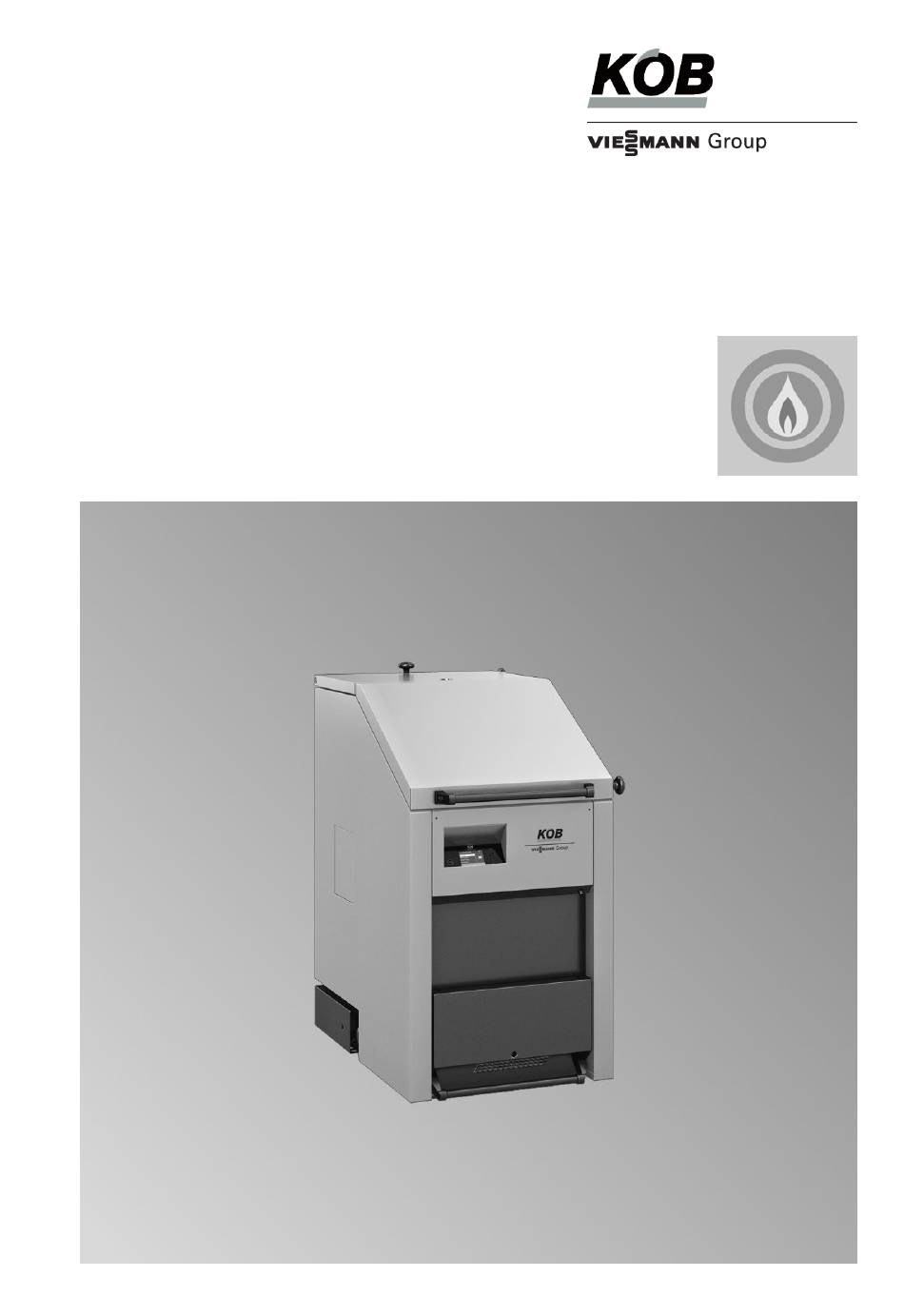

Service instructions
for contractors
Pyromat ECO
Wood gasification boiler
for 50 cm or 100 cm logs
PYROMAT ECO
Please keep safe.
5604 447 GB
10/2010
