4 Channel Video Insert Unit for a Dual Redundant Single

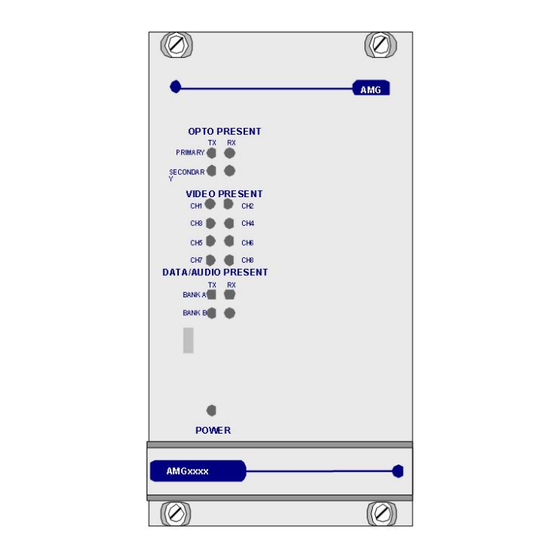

The AMG3741G-DR-SF is a rackmount four channel video insert unit designed to transmit 4 video
signals onto a singlemode optical fibre ring with Dual Redundant operation.
The AMG3741G-DR-SF is designed to be powered using an AMG2003 standalone power supply.
The AMG3741G-DR-SF is designed to operate with an AMG3782N-DR-SF or rackmount equivalent
AMG3782GN-DR-SF eight channel video receive unit. The receive unit will 'drop off' up to eight video
channels which are being transmitted around the fibre ring from up to eight single channel or
equivalent number of multi-channel insert units.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Fibre Ring
Page 1 of 8
AMG3741G-DR-SF
Instruction Manual
AMG3741G-DR-SF Instruction Sheet
D16934.doc
issue 00
Advertisement
Table of Contents
Related Manuals for AMG AMG3741G-DR-SF
Summary of Contents for AMG AMG3741G-DR-SF
- Page 1 4 Channel Video Insert Unit for a Dual Redundant Single Fibre Ring The AMG3741G-DR-SF is a rackmount four channel video insert unit designed to transmit 4 video signals onto a singlemode optical fibre ring with Dual Redundant operation. The AMG3741G-DR-SF is designed to be powered using an AMG2003 standalone power supply.
- Page 2 Removal / replacement from / to the Case ..................7 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG3741G-DR-SF Instruction Sheet document without notice. The information herein is believed to D16934.doc...
- Page 3 At the AMG3782GN-DR-SF receiver if the primary input signal is not present, the unit will shut down the secondary output to inform the AMG3741G-DR-SF that the primary signal route is not OK. The AMG3741G-DR-SF will then send out the video and data signals on its secondary output in the opposite direction.
- Page 4 Optical Connections The AMG3741-DR-SF or rackmount AMG3741G-DR-SF is designed to be connected in a ring or point to point system. In a ring system, single, dual and four channel insert units respectively can be combined to make up an 8 channel video transmission system as illustrated below.
- Page 5 Connector Partno.........Switchcraft S761K, AMG G16125-00 Supply Voltage........13.5 to 18.0 Volts DC. Maximum Power .........10 Watts AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG3741G-DR-SF Instruction Sheet document without notice. The information herein is believed to D16934.doc...
- Page 6 AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG3741G-DR-SF Instruction Sheet document without notice. The information herein is believed to D16934.doc...
- Page 7 Mounting Details The unit is designed to be mounted within a 2005 Subrack on standard card guides. Note the AMG standard racks are supplied with guide rails every 7HP. In order to fit this unit in the subrack, 2 sets of card guides have to be removed by pulling gently on the card guides.
- Page 8 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 8 AMG3741G-DR-SF Instruction Sheet document without notice. The information herein is believed to D16934.doc be accurate. No responsibility is assumed by AMG for its use.
