4 Channel Video RX Unit with 4 bi-directional data

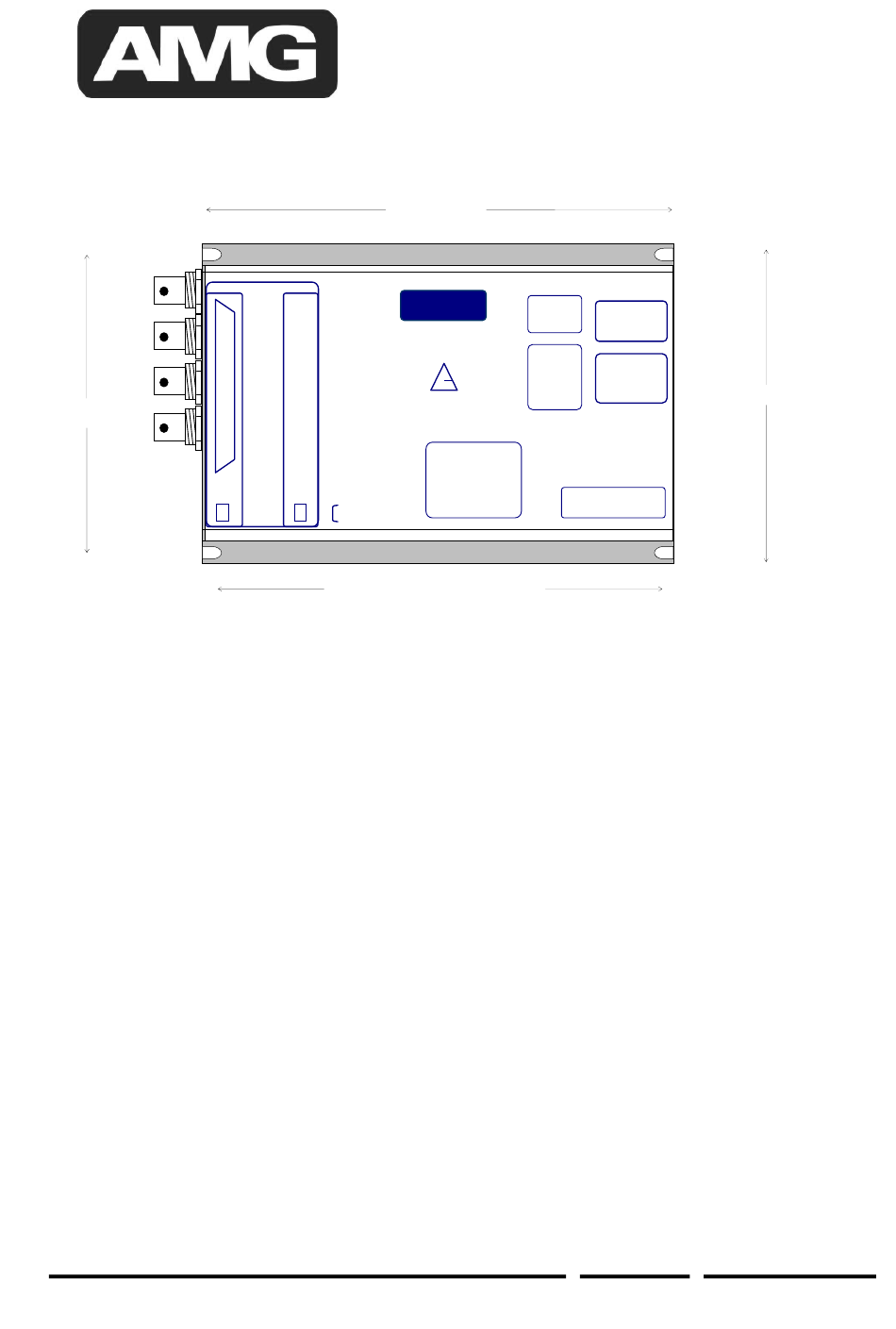

REA R PANEL CONNECTIONS
122mm Between
Slot Centres
POWER
The AMG2648 is a four channel video receive unit. It also has the capacity to transmit and receive
four data and four audio signals. The data and audio interfaces are enabled by fitting data and audio
interface daughter boards. All the signals are transmitted and received over two multimode mode
optical fibres. The AMG2648 is a standalone unit.
The AMG2648 is designed to operate with AMG2647(R) four channel video transmit unit with four
channels of bi-directional audio and with four channels of bi-directional data.
Connections
Video Output Connections
No of Channels ....................................4
Connectors ......................................... 75 ohm BNC Socket.
Output Impedance ............................... 75 ohm terminated.
Output Level ........................................1 volt p-p nominal
Frequency Response .......................... 10Hz to 5.75MHz min.
No. of Data Channels .......................... 4
No. of Audio Channels ......................... 4
Connector ........................................... All on one 37 way D-Type female connector - shielded.
Connections......................................... See below for connection and configuration
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
and 4 bi-directional audio
Data
VIDEO
CH 1
CH 2
OPTO
IN
CH 3
OPTO
OUT
DATA
CH 4
CONNECTIONS
See instruction
sheet
POWER
GND
+12- 16 Volts dc
155mm between mounting slot centres
Instruction Manual
167mm Overall
FRONT PANEL INDICATORS
AMG
OPTO SYNC
RX
TX
O O
VIDEO PRESENT
CH 1 CH2
O O
*
CH 3 CH4
O O
2648
4 CHANNEL VIDEO
RECEIVERS
+
4 BI-DIRECTIONAL
DATA/AUDIO
(4mm slots)
AMG2648
DATA CHANNELS
O
RX O
RX
O
TX O
TX
O
RX O
RX
O
TX O
TX
AUDIO CHANNELS
O
CH1
TX O
RX
O
CH2
TX O
RX
O
CH3
TX O
RX
132mm Overall
O
CH4
TX O
RX
POWER
O
O
Page 1 of 6
AMG2648 Instruction
Sheet D15556-00
Advertisement
Table of Contents
Related Manuals for AMG AMG2648
Summary of Contents for AMG AMG2648
- Page 1 155mm between mounting slot centres (4mm slots) The AMG2648 is a four channel video receive unit. It also has the capacity to transmit and receive four data and four audio signals. The data and audio interfaces are enabled by fitting data and audio interface daughter boards.
- Page 2 It is recommended that 50/125 optical fibre is used as this will have a higher bandwidth than 62.5/125 fibre. The AMG2647 and AMG2648 will transmit and receive over a minimum of 1km of 62.5/125 fibre and will typically transmit and receive over 2km of 50/125.
- Page 3 Weight..........800grams Data and Audio Channel Configuration and Connection The AMG2648 has a capacity for 4 bi-directional data and 4 bi-directional audio channels. For these channels to be present, appropriate data daughter boards have to be fitted onto the main data motherboard.
- Page 4 Audio CH1 Audio CH2 Audio CH3 Audio CH4 AMG Systems Ltd. reserves the right to make changes to this document without Page 4 of 6 AMG2648 Instruction notice. The information herein is believed to be accurate. No responsibility is Sheet D15556-00...
- Page 5 AUDIO CH4 IN + AUDIO CH4 OUT - AUDIO CH4 IN - AMG Systems Ltd. reserves the right to make changes to this document without Page 5 of 6 AMG2648 Instruction notice. The information herein is believed to be accurate. No responsibility is Sheet D15556-00 assumed by AMG for its use.
- Page 6 Maintenance and Repair There are no user serviceable parts within the AMG2600 products. In case of problem or failure contact your local support centre or AMG Systems Ltd, Technical Support Department on tel. +44 (0) 1767 600777. See unit data sheet for full specification.
