11-14
Maintenance and service/Engine compartment overview

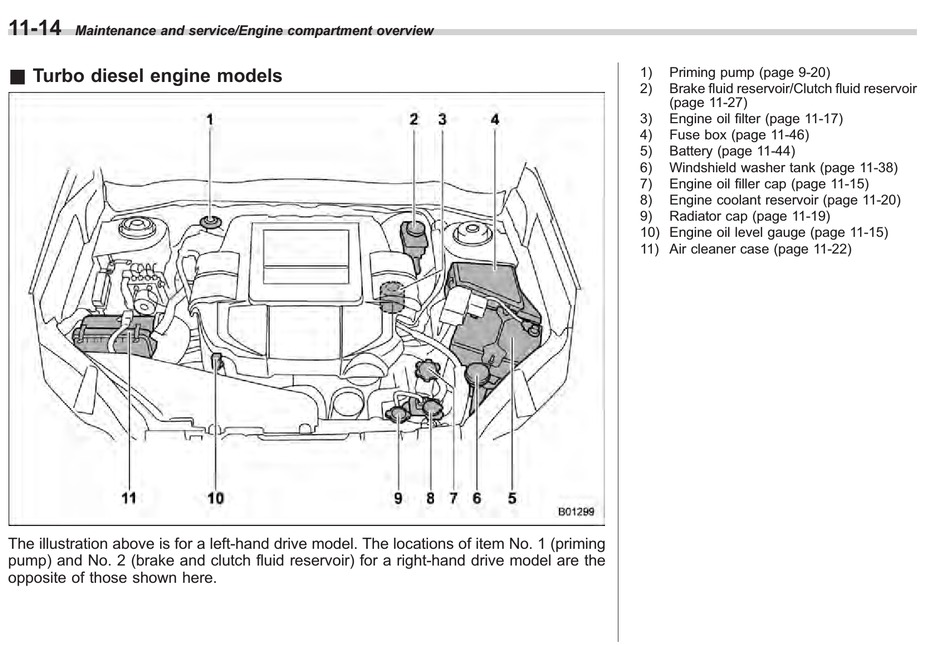

& Turbo diesel engine models
The illustration above is for a left-hand drive model. The locations of item No. 1 (priming
pump) and No. 2 (brake and clutch fluid reservoir) for a right-hand drive model are the
opposite of those shown here.
1) Priming pump (page 9-20)
2) Brake fluid reservoir/Clutch fluid reservoir
(page 11-27)
3) Engine oil filter (page 11-17)
4) Fuse box (page 11-46)
5) Battery (page 11-44)
6) Windshield washer tank (page 11-38)
7) Engine oil filler cap (page 11-15)
8) Engine coolant reservoir (page 11-20)
9) Radiator cap (page 11-19)
10) Engine oil level gauge (page 11-15)
11) Air cleaner case (page 11-22)
