8 Channel Video Receive Unit operating at 1550nm
wavelength with integral WDM Coupler

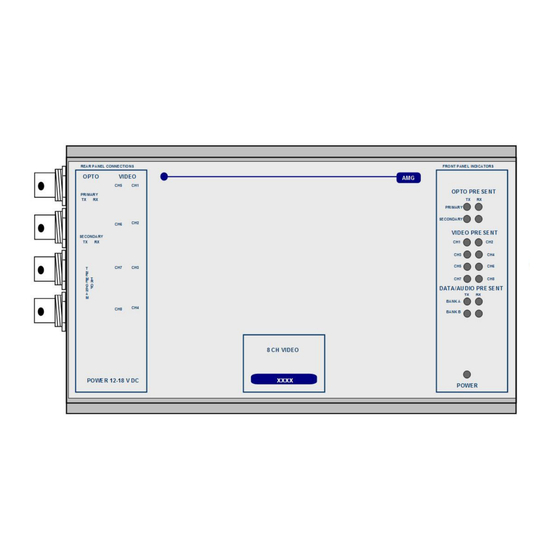

The AMG4682-1550-C is a standalone eight channel video receive unit designed to receive 8 video
signals from an AMG4681-1550-C or rackmount equivalent AMG4681R-1550-C, 8 channel
transmitter. It requires one Multimode optical fibre for the reception of the video. It incorporates a
1550nm/1310nm wavelength division multiplexer. This allows the user to drop-off an optical signal
from a unit transmitting at 1310nm wavelength from the same fibre.
The AMG4682-1550-C is designed to be powered using an AMG2003 standalone power supply.
The AMG4682-1550-C is designed to operate with AMG4681-1550-C or rackmount equivalent
AMG4681R-1550-C eight channel video transmit unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4682-1550-C
Instruction Manual
Page 1 of 8
AMG4682-1550-C Instruction Sheet
D18981-00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4682-1550-C
Summary of Contents for AMG AMG4682-1550-C
- Page 1 8 Channel Video Receive Unit operating at 1550nm wavelength with integral WDM Coupler The AMG4682-1550-C is a standalone eight channel video receive unit designed to receive 8 video signals from an AMG4681-1550-C or rackmount equivalent AMG4681R-1550-C, 8 channel transmitter. It requires one Multimode optical fibre for the reception of the video. It incorporates a 1550nm/1310nm wavelength division multiplexer.
- Page 2 Removal / replacement from / to the Case ..................6 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4682-1550-C Instruction Sheet document without notice. The information herein is believed to D18981-00.doc...
- Page 3 1310nm wavelength from the same fibre. Optical Connection The AMG4682-1550-C is connected as illustrated below when used with an AMG4681-1550-C 8- channel transmit unit acting as a point to point system. AMG Systems Ltd. reserves the right to make changes to this...
- Page 4 Connector Partno......... Switchcraft S761K, AMG G16125-00 Supply Voltage ........13.5 to 18.0 Volts DC. Maximum Power ......... 5 Watts AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG4682-1550-C Instruction Sheet document without notice. The information herein is believed to D18981-00.doc...
- Page 5 AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG4682-1550-C Instruction Sheet document without notice. The information herein is believed to D18981-00.doc...
- Page 6 Weight ..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
- Page 7 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG4682-1550-C Instruction Sheet document without notice. The information herein is believed to D18981-00.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 8 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 8 AMG4682-1550-C Instruction Sheet document without notice. The information herein is believed to D18981-00.doc be accurate. No responsibility is assumed by AMG for its use.
