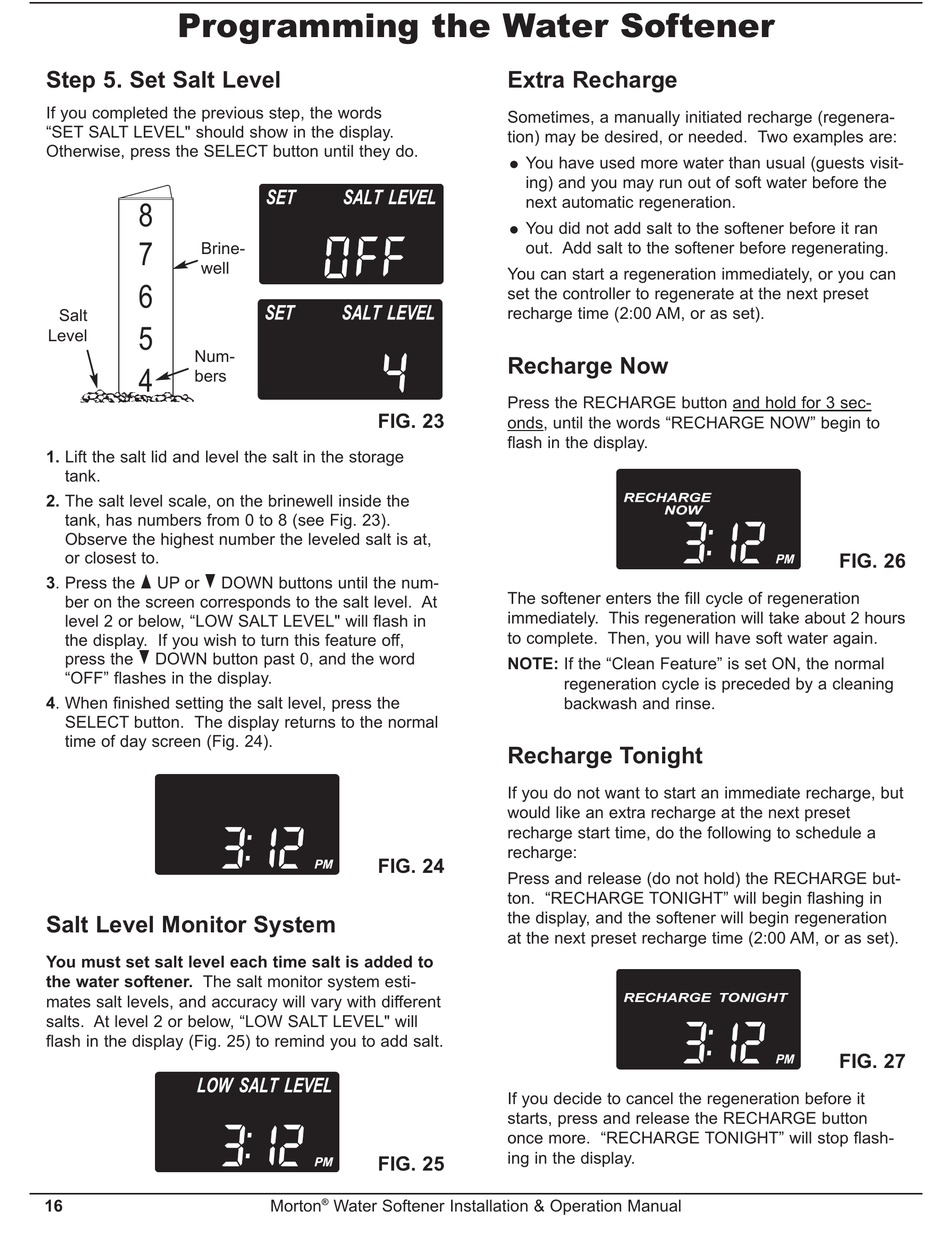

Morton M45C Installation And Operation Manual page 16

Programming the Water Softener
Step 5. Set Salt Level
If you completed the previous step, the words
"SET SALT LEVEL" should show in the display.
Otherwise, press the SELECT button until they do.
8
Brine-
7
well
6
Salt
Level
5
Num -
bers
4
1. Lift the salt lid and level the salt in the storage
tank.
2. The salt level scale, on the brinewell inside the
tank, has numbers from 0 to 8 (see Fig. 23).
Observe the highest number the leveled salt is at,
or closest to.
q
3. Press the UP or DOWN buttons until the num-
ber on the screen corresponds to the salt level. At
level 2 or below, "LOW SALT LEVEL" will flash in
the display. If you wish to turn this feature off,
q
press the DOWN button past 0, and the word
"OFF" flashes in the display.
4. When finished setting the salt level, press the
SELECT button. The display returns to the normal
time of day screen (Fig. 24).
Salt Level Monitor System
You must set salt level each time salt is added to
the water softener. The salt monitor system esti-
mates salt levels, and accuracy will vary with different
salts. At level 2 or below, "LOW SALT LEVEL" will
flash in the display (Fig. 25) to remind you to add salt.
16
FIG. 23
FIG. 24
FIG. 25
Morton Water Softener Installation & Operation Manual
®
Extra Recharge
Sometimes, a manually initiated recharge (regenera-
tion) may be desired, or needed. Two examples are:
You have used more water than usual (guests visit-
=
ing) and you may run out of soft water before the
next automatic regeneration.
You did not add salt to the softener before it ran
=
out. Add salt to the softener before regenerating.
You can start a regeneration immediately, or you can
set the controller to regenerate at the next preset
recharge time (2:00 AM, or as set).
Recharge Now
Press the RECHARGE button and hold for 3 sec-
onds, until the words "RECHARGE NOW" begin to
flash in the display.
The softener enters the fill cycle of regeneration
immediately. This regeneration will take about 2 hours
to complete. Then, you will have soft water again.
NOTE: If the "Clean Feature" is set ON, the normal
regeneration cycle is preceded by a cleaning
backwash and rinse.
Recharge Tonight
If you do not want to start an immediate recharge, but
would like an extra recharge at the next preset
recharge start time, do the following to schedule a
recharge:
Press and release (do not hold) the RECHARGE but-
ton. "RECHARGE TONIGHT" will begin flashing in
the display, and the softener will begin regeneration
at the next preset recharge time (2:00 AM, or as set).
If you decide to cancel the regeneration before it
starts, press and release the RECHARGE button
once more. "RECHARGE TONIGHT" will stop flash-
ing in the display.
FIG. 26
FIG. 27
