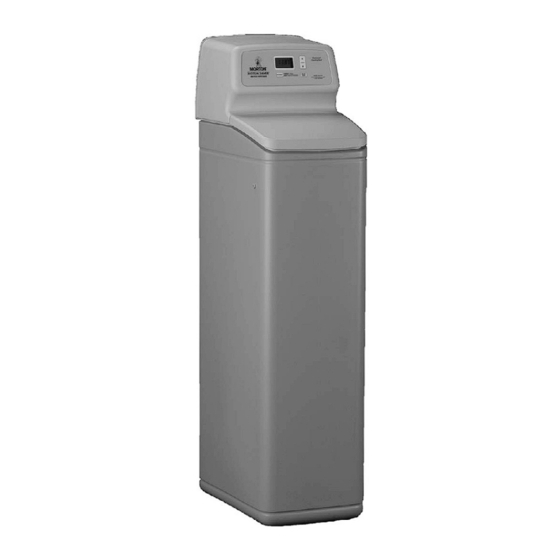

Water Softener
Model MSD20F
Model MSD27B
Model MSD30D
Model MSD34C
How to install, operate
and maintain your Demand
Controlled Water Softener
Do not return water softener to store
If you have any questions or concerns when
installing, operating or maintaining your
water softener, call our toll free number:
1-888-64 WATER
(1-888-649-2837)
Monday- Friday, 8 AM - 7 PM EST
or visit www.systemsaver.com
When you call, please be prepared to provide
the model and serial number of your product,
found on the rating decal, typically located
inside the faceplate cover, near the back.
Systems tested and certified by NSF International
against NSF/ANSI Standard 44
for hardness reduction and efficiency.
For best results use Morton
System Saver
II Pellets in your water softener.
®
®
7325825 (Rev. F 1/17/11)
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Morton System Saver MSD20F
Summary of Contents for Morton System Saver MSD20F
- Page 1 Systems tested and certified by NSF International against NSF/ANSI Standard 44 for hardness reduction and efficiency. For best results use Morton System Saver II Pellets in your water softener. 7325825 (Rev. F 1/17/11) ®...
- Page 2 II Pellets make a difference in your water softener, too. ® ® Hard water contains traces of dirt, iron and other minerals that can build up in the resin and valves of your water softener. That can lead to expensive repairs. But Morton System Saver II Pellets are ®...
-
Page 3: Table Of Contents
If, during such respective period, a part proves to be defective, Seller will ship a replacement part, directly to your home, without charge. If you have questions regarding a Morton product, need assistance with installation or troubleshooting, wish to order a part or report a warranty issue, we are just a phone call away. Simply dial 1-888-64WATER (1-888- 649-2837) for assistance, or visit www.systemsaver.com. -
Page 4: Inspect Shipment
When you call, please be prepared to provide the model and serial number of your product, found on the rating decal, located on the rim below the salt lid hinges. For more installation or service information, visit www.systemsaver.com. Morton System Saver Installation & Operation Manual ®... -
Page 5: Specifications & Dimensions
Specifications & Dimensions Model MSD20F Model MSD27B Model MSD30D Model MSD34C Model Code Sr19 Sr22 LE31 Sr28 Regeneration Control Demand Demand Demand Demand 9,310 @ 1.8 lbs. 11,100 @ 2.2 lbs. 13,200 @ 2.9 lbs. 13,700 @ 2.7 lbs. Rated Softening Capacity 18,000 @ 5.8 lbs. -
Page 6: Before You Start
Ferric (red water), and bacterial and organically bound irons are insoluble. This water softener will not ** Capacity to reduce clear water iron is substantiated remove ferric or bacterial iron. This iron is visible by WQA test data. Morton System Saver Installation & Operation Manual ® ®... -
Page 7: Installation Requirements
Untreated Water to City Water Supply Outside Faucets Cold Water to House Hot Water Pressure to House Optional Tank Sediment Filter Well Water Supply Water Water Softener Heater Well Pump FIG. 5 Morton System Saver Installation & Operation Manual ® ®... -
Page 8: Valve Drain Requirements
IMPORTANT: Do not solder with plumbing attached to Valve installation adaptors and single bypass Outlet Inlet valve. Soldering heat will damage the Valve Valve adaptors and valve. rom Water o Water FIG. 9 Softener Softener Morton System Saver Installation & Operation Manual ® ®... -
Page 9: Installation Instructions
FIG. 10 hose. Floor Drain Step 1. Turn Off Water Supply Step 2. Assembly 1. Close the main water supply valve, located near the 1. Morton System Saver models are factory assem- ® ® well pump or water meter. bled. During installation, remove the Salt Hole Cover and set it aside to prevent damage. - Page 10 Make sure that the tabs are fully seated. Morton System Saver Installation & Operation Manual ®...
- Page 11 Avoid long drain hose runs, or ele- vating the hose more than 8’ above the floor. continued on next page Morton System Saver Installation & Operation Manual ® ®...
- Page 12 2. Complete the programming steps on: bypass valve body toward the softener (See Figure Pages 13 & 14 for Models MSD20F, MSD27B & MSD30D, or 15). Improper removal may damage clips. Do not reinstall damaged clips.
-
Page 13: Programming The Softener (Models Msd20F, Msd27B & Msd30D) Customizing Features / Options
NOTE: If “- - - -” shows in the display, press the DOWN button until the model code (“Sr19” for Model MSD20F, “Sr22” for Model MSD27B, “LE31” for Model MSD30D or FIG. 18 “Sr28” for Model MSD34C) shows in the dis- play. - Page 14 California Efficiency Requirement complete the initial programming. The current time of day will show in the display. Your Morton Water Softener has a “High Step 4. Set Salt Efficiency Efficiency” feature with an ON or OFF setting. This softener setting is shipped in the OFF posi-...
-
Page 15: Recharge Now/Tonight
Customizing Features / Options (Models MSD20F, MSD27B & MSD30D) Recharge Now Adjustable Backwash At times of greater than normal water use, such as If your incoming water supply has higher sediments when you have guests, you could run out of condi- or clear water iron, a longer Backwash and/or Fast tioned water before the next scheduled recharge. -
Page 16: Programming The Softener (Model Msd34C) Customizing Features / Options
UP or DOWN button until the model code NOTE: If your water supply contains iron, compen- (“Sr19” for Model MSD20F, “Sr22” for Model sate for it by adding to the water hardness MSD27B, “LE31” for Model MSD30D or number. For example, assume your water is “Sr28”... -
Page 17: California Efficiency Requirement
California Efficiency Requirement the initial programming. The current time of day will show in the display. Your Morton Water Softener has a “High Step 5. Set Salt Efficiency Efficiency” feature with an ON or OFF setting. This softener setting is shipped in the OFF posi-... - Page 18 Fast Rinse in minutes. 4. When the desired Fast Rinse time appears in the display, press the SELECT button once to return to the normal run (time of day) screen. Morton System Saver Installation & Operation Manual ®...
-
Page 19: Power Outage Memory
Features / Options Refilling with Salt (All Models) Lift the salt hole cover and check the salt storage level frequently. If the water softener uses all the Morton ® Power Outage Memory System Saver II Pellets before you refill it, you will ®... -
Page 20: Cleaning Nozzle & Venturi
If the water level does not drop after a recharge, the problem has not been resolved. Call 1-888-64 WATER, Monday - Friday, 8 am to 7 pm, EST, or visit www.systemsaver.com. Morton System Saver Installation & Operation Manual ®... -
Page 21: Troubleshooting
6. Press and hold the SELECT / MENU button until Use the following procedures to advance the water the model code (“Sr19” for Model MSD20F, “Sr22” softener through the regeneration cycles to check for Model MSD27B, “LE31” for Model MSD30D or operation. -
Page 22: Automatic Electronic Diagnostics
6. Press and hold the SELECT button until the model Use the following procedures to advance the water code (“Sr19” for Model MSD20F, “Sr22” for Model softener through the regeneration cycles to check MSD27B, “LE31” for Model MSD30D or “Sr28” for operation. -
Page 23: Troubleshooting
4. Set the present time, hardness, etc., as described sure (bends, kinks, elevated too high, etc.). See on pages 13 & 14 (for Models MSD20F, MSD27B "Install Valve Drain Hose" section. & MSD30D) or pages 16 & 17 (for Model MSD34C). -
Page 24: Exploded View & Parts List
Valve Kit P/N 7238557 Electronic Control Board Model MSD34C built before May 15, 2009, (date Cam & Gear Kit code* 03001 thru 09164) & Models MSD20F, P/N 7254252 P/N 7327534, MSD27B & MSD30D: Model MSD34C built after May 15, 2009 (date...
