SEASIDE CASUAL FURNITURE Portsmouth Assembly Instructions

Instruction Revision: C
S
(44,45) 3Ft, 4Ft Portsmouth Bench rev. A

Parts List:

(1) Back Assembly
(1) Seat Assembly
(2) Side Leg Assemblies
(2) Angle Seat Braces
(45 Only) (1) Leg Stretcher
READ ENTIRE INSTRUCTIONS BEFORE BEGINNING! Carefully remove contents
from box. Make sure that all parts and hardware are included.
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
C
EASIDE ASUAL
ENVIRO

Tools Required:

Phillip's Head Screwdriver
7 /16 Socket or Wrench
4MM Allen Wrench (Included)
Assembly Instructions

Step One: Set Up

Step Two: Side Leg Assembly

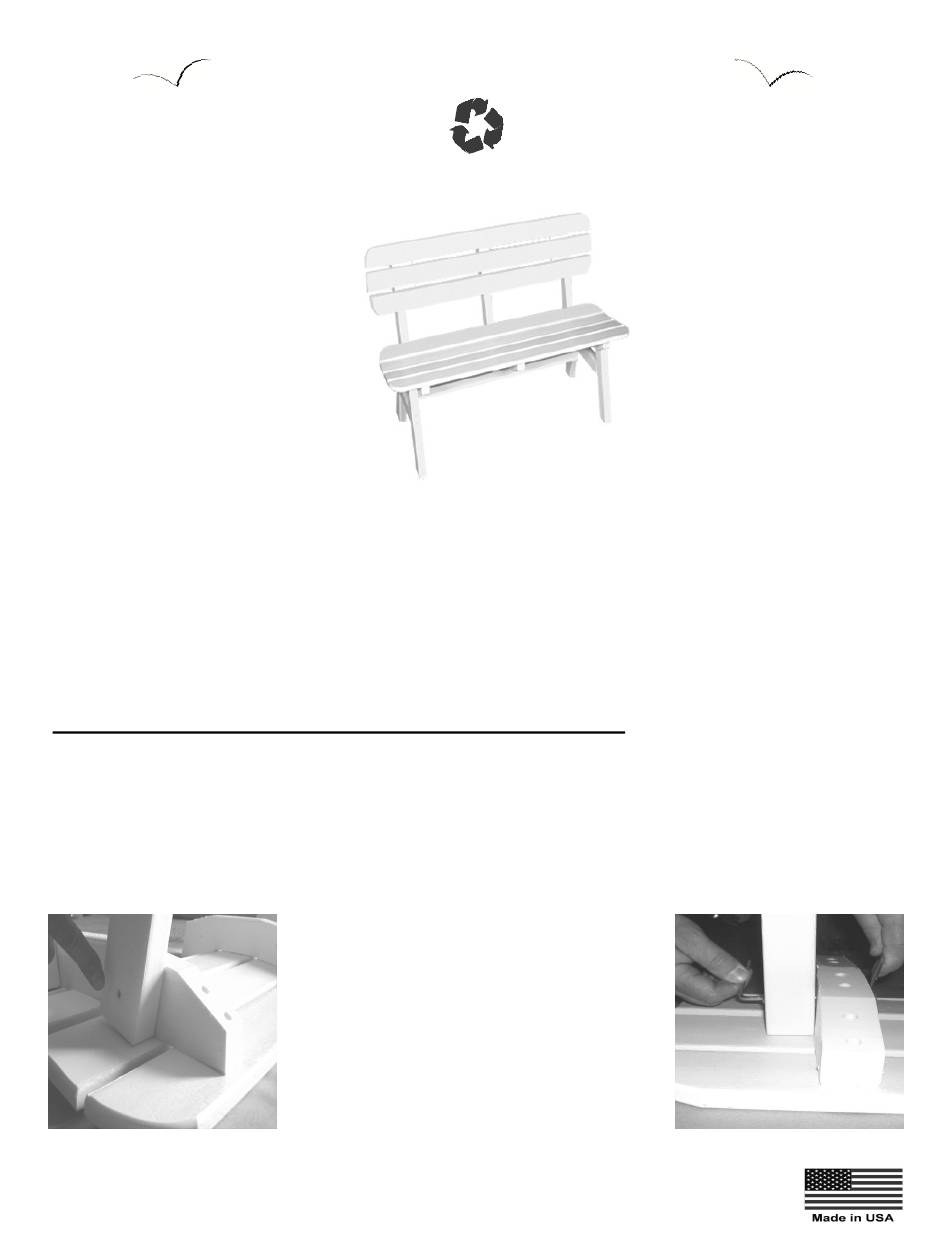

Place Seat Assembly face down on a flat
clean surface. Place Side Leg Assembly
along outside of the Seat Support, while
aligning pre-drilled holes (Left Picture). In-
stall using (2) 3-1/2" connector bolts. Fin-
ger tighten using flat & lock washers and
nuts (Right Picture). Do not tighten at this
time. Repeat process on other side.
F
URNITURE
WOOD

Hardware:

(6) 3-1/2" Connector Bolts
(6) Lock Washers
(6) Flat Washers
(6) Nuts
(6) 3" Hex 1/4" Lags
(45 Only) (8) 3" Hex 1/4" Lags
(6) 5/8" Plugs
(4) 1-3/4" Phillip's Head Screws
1
