Instruction Revision: B
S
(2) Table Slats with 3 holes (Aluminum Reinforced)
(2) Table Slats with 5 holes (Aluminum Reinforced)
(1) Center Table Slat with Umbrella hole (Aluminum
Reinforced)
(4) Legs
(1) Table Center Cleat with 2 holes
(2) Table End Cleats with 4 holes

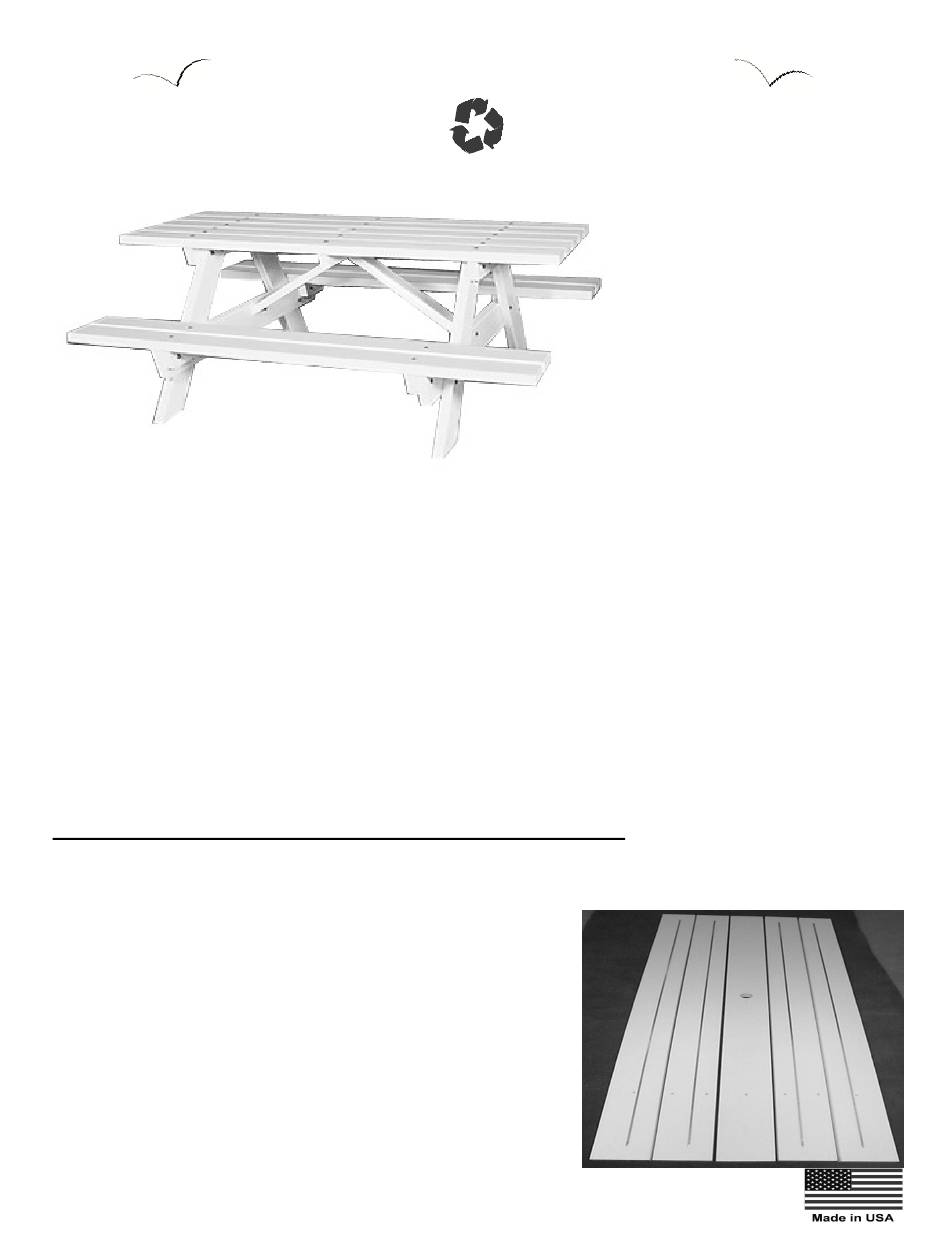

READ ENTIRE INSTRUCTIONS BEFORE BEGINNING! Carefully remove contents
from box. Make sure that all parts and hardware are included.
Place All Table Slats face down with Aluminum facing up
on a flat clean surface. Follow the following list for place-
ment.
1st Slat (Far Left)= Table Slat with holes #1,#6,#11
2nd Slat (Middle Left)= Table Slat with holes #2,#7,#12
3rd Slat (Middle)= Center Table Slat with holes #3,#8,#13
4th Slat (Middle Right)= Table Slat with holes #4,#9,#14
5th Slat (Far Right)= Table Slat with holes #5,#10,#15
(Right Picture)
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
C
EASIDE
ASUAL
ENVIRO
(43) Traditional Picnic Table rev. A
Box 1:
Assembly Instructions
Step One: Set Up
Step Two: Table Slat Placement
F
URNITURE
WOOD
Parts List
(4) Seat Slats with 2 holes (Aluminum
Reinforced)
(4) Seat Cleats
(2) Angle Braces
(2) Seat Supports
1
Hardware:
(28) 3-1/2" Truss 5/16" Bolts
(27) 4-1/2" Carriage 5/16" Bolts
(55) Nuts
(55) Flat Washers
Tools Required:
Large Phillip's Head Screwdriver
1/2 Socket or Wrench
Hammer
Box 2:
11
12
13
14
6
7
8
1
2
3
15
9
10
4
5
