Technical Product Manual - DCT1800-GAP
Installation instructions, BS330 base station
1. Stick the brand label in the front cover recess.
16.3.9 Connecting the base station cables
1. If it is required that the cables enter the base station centrally from above, guide the cables through the
recess in the middle of the base station as shown in figure 41.

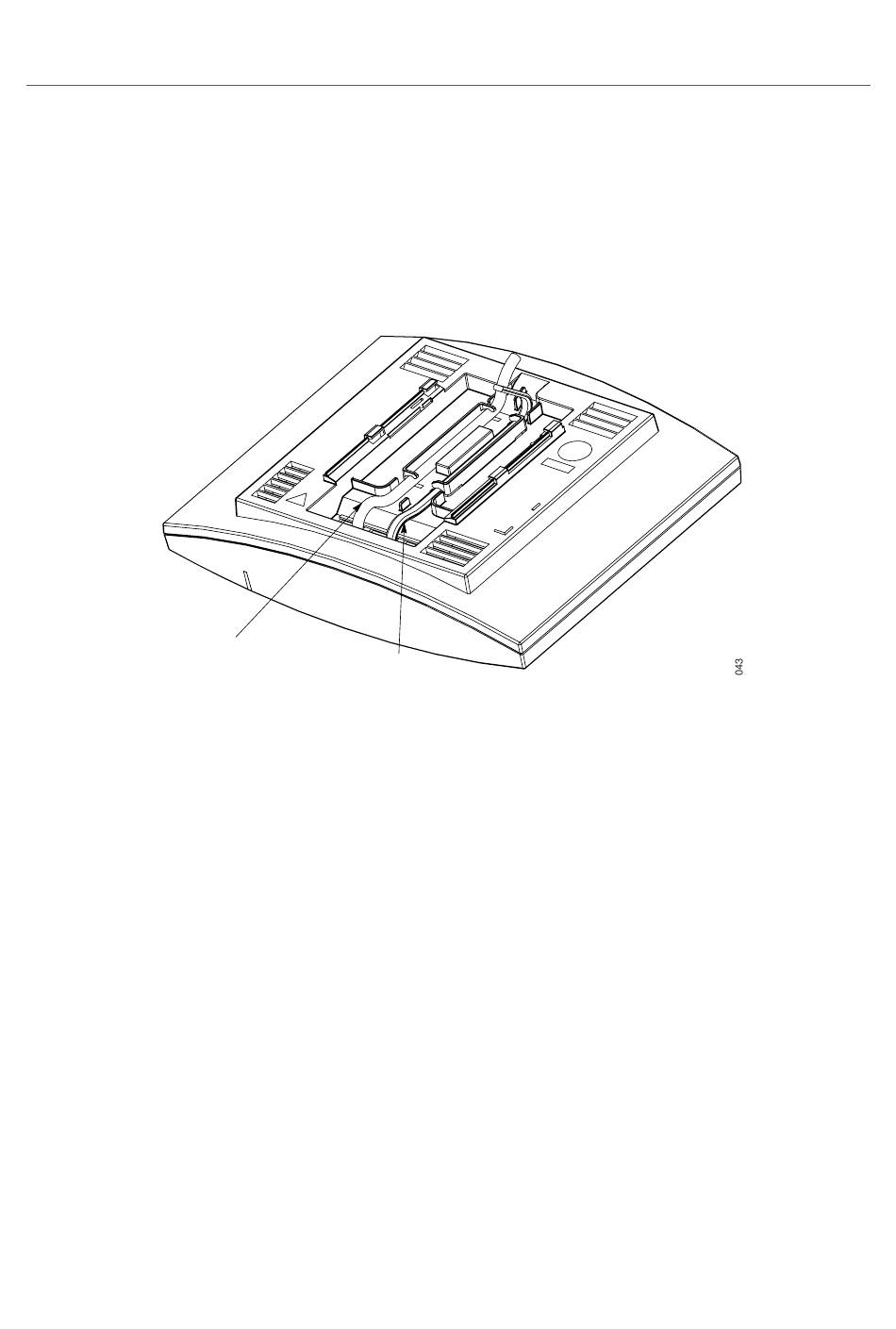

Fig. 41 Cables entering the base station centrally from above
2. Plug the modular jack of the data cable into one of the data/power connectors.
3. When an AC-adapter is used:
– Plug the modular jack of the AC-adapter in one of the data/power connectors.
– Plug the AC-adapter into a wall-outlet.
Note:
See also chapter 22, 'CLU/CLU-S/SLU to base station cabling'

16.3.10 Mounting the base station

1. Hold the base station flat against the mounting bracket and move it downwards until it clicks (see figure 42).
Note:
After completion of the installation, base stations must be initialized using the cordless system manager.
70
Data cable
Power cable
(if used)
