Technical Product Manual - DCT1800-GAP
Installation instructions, BS330 base station
16.3.1 Fixing the mounting bracket to a wall
Fix the mounting bracket (see figure 37) to the wall as follows:
1. Hold the mounting bracket with its flat side against the wall such that the text 'TOP' is the right way up,
and mark the two holes. The minimum distance between the upper hole and the ceiling or any object above
the base station must be at least 65 mm (see figure 37). If the distance is less than 65 mm, the base station
cannot be slid onto the bracket.
When using wall plugs, take a ∅ 6 mm drill and drill the two holes and insert the included wall plugs.
2.
Position the mounting bracket with its flat side to the wall and fasten it with the two included ∅ 3.5 mm
3.
screws.
Ceiling

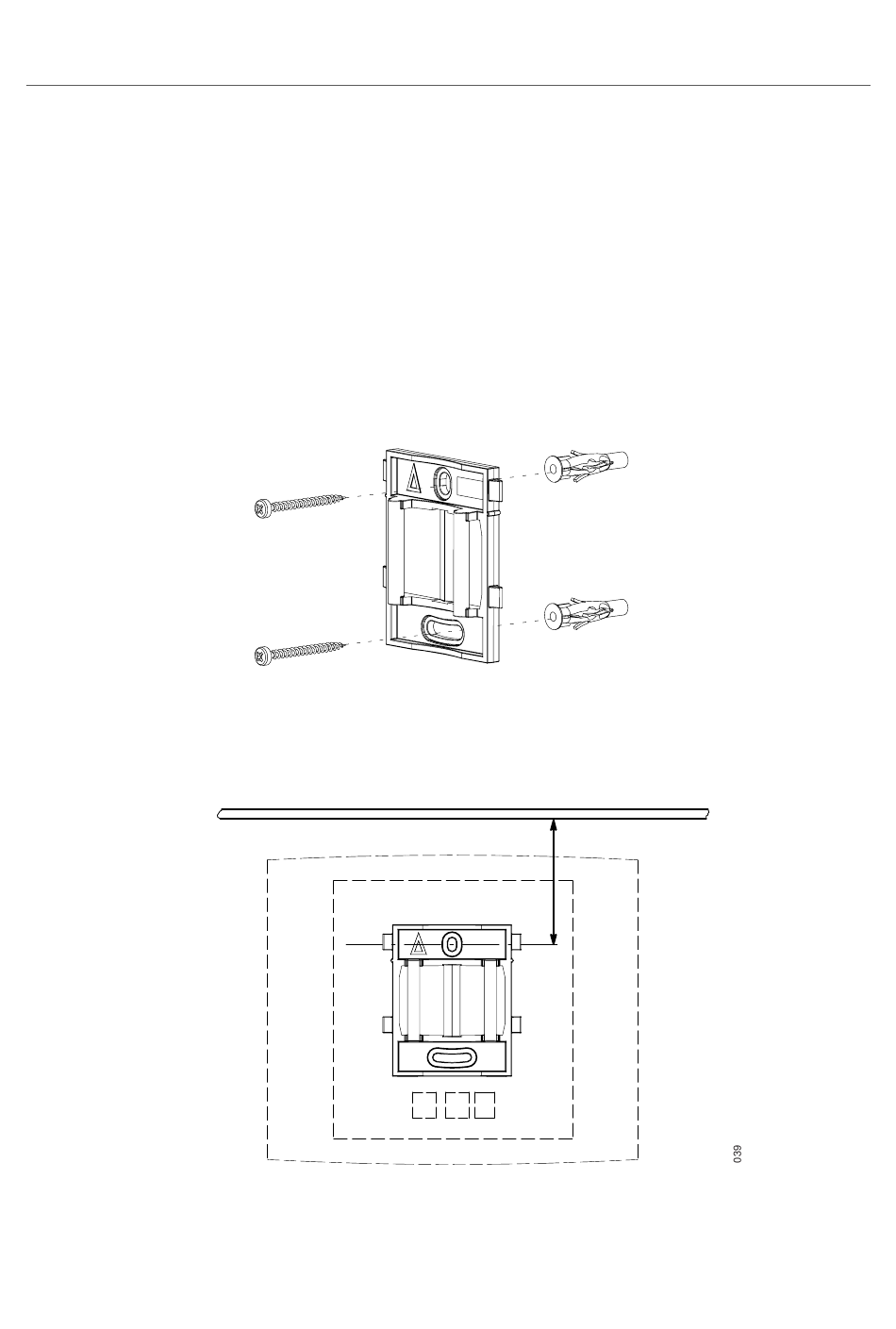

Fig. 37 Fixing the mounting bracket to a wall
66
≥ 65 mm
TOP
