16.3.2 Fixing the mounting bracket to a ceiling
Fixing to a ceiling is done in the same way as the a wall (see paragraph 16.3.1). When the base station has to
be positioned above a suspended ceiling, take care that the front of the base station points downwards.
16.3.3 Fixing the mounting bracket to a pole or beam
The mounting bracket can be fixed to a pole (diameter ≥ 45 mm) or a beam (wider than 50 mm) by means of a
strap or flexible metal band less than 30 mm wide. The strap or flexible metal band must be purchased locally.
1. Fix the mounting bracket to a pole or beam such that the text 'TOP' is right way up (see figure 38).

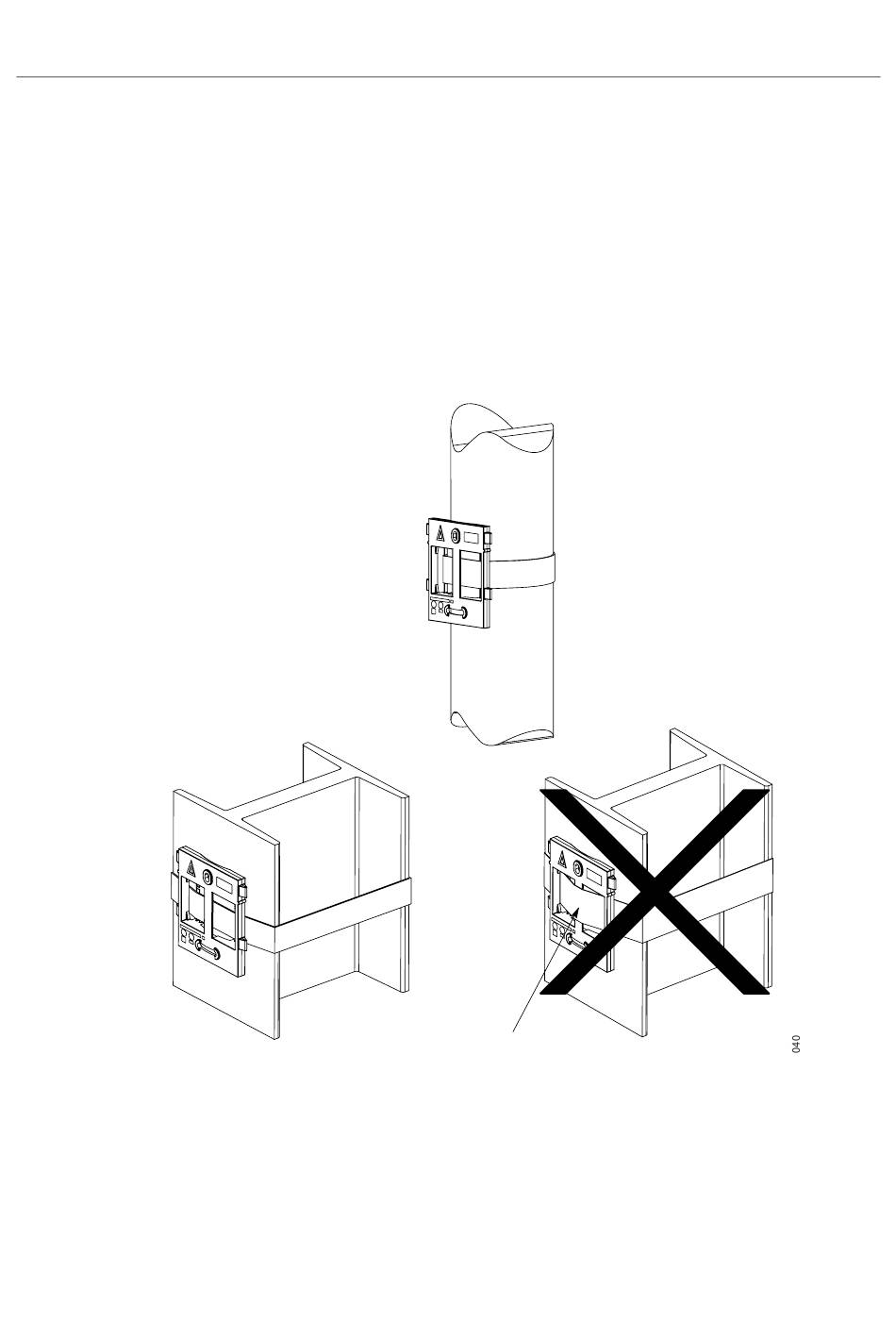

Fig. 38 Fixing the mounting bracket to a pole or beam
16.3.4 Using cable ducts
When the base station is mounted to the wall, cable ducts can be used to route the wiring through.
TD 92093 (1/LZBNB 103 108 R4D) / 2005-09-23/ Ver.C
 2005
Technical Product Manual - DCT1800-GAP
Installation instructions, BS330 base station
Tied wrongly
