Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure that
your product is fitted safely and that it retains its high quality finish. Please retain this leaflet for future
reference.
This instruction leaflet applies to the following products:
MM710100E
INPUT: 220-240V AC 17W IP 44
MM710200E INPUT: 220-240V AC 26W IP 44
MM710300E INPUT: 220-240V AC 26W IP 44
MM710400E INPUT: 220-240V AC 17W IP 44
MM710500E INPUT: 220-240V AC 42W IP 44
MM710600E INPUT: 220-240V AC 27W IP 44
IMPORTANT INSTALLATION INFORMATION
THIS IS A CLASS 1 APPLIANCE AND MUST BE CONNECTED TO EARTH
HAZARDOUS VOLTAGES INSIDE – DO NOT OPEN SEALED UNITS
THERE ARE NO USER REPLACEABLE PARTS IN THE MIRROR
In accordance with Statutory Instrument 2004 No. 3210 - The Building (Amendment) (No.3) Regulations
2004, any work, other than repair/replacements, in a room where there is water (e.g. kitchen, bathroom,
etc.) must be either:
carried out by an electrician who is a member of a competent person self-certification scheme who
will certify the work complies with the Building Regulations and you do not need to notify your local authority,
or,
carried out after prior notification to the Local Authority Building Control Department, which has
responsibility for ensuring that the work is inspected and tested.
IMPORTANT WARRANTY INFORMATION
In accordance with Statutory Instrument 2004 No. 3210 - The Building (Amendment) (No.3) Regulations
2004, the installer must give the occupier of the premises in which this product has been installed a
certificate to confirm that the requirements of regulations 4 and 7 have been satisfied, or the installation of
this product must be inspected and tested by the Local Authority Building Control Department who will issue
a compliance certificate.
A copy of this certificate may be required for certain warranty claims. Failure to provide a copy of the
certificate may invalidate the warranty.
This does not affect your statutory rights
We recommend that you make yourself aware of the Regulations before you undertake any work and if you
require clarification you should contact your Local Authority Building Control Department.
MIR 035 R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM710100E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Croydex MM710100E

  • Page 1 Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure that your product is fitted safely and that it retains its high quality finish. Please retain this leaflet for future reference. This instruction leaflet applies to the following products:...
  • Page 2 Fixing Pack Contents Hang’N’Lock Wall Mounting Bracket Kit x1, ‘L’ Shape Bracket Mounting Kit x1. Tools Required Drill; 8mm masonry drill bit (8mm ceramic drill bit optional); Cross head screwdriver; Flat head screwdriver; Pencil; Spirit level KEEP DIY TOOLS OUT OF THE REACH OF CHILDREN Home Safety Advice It is recommended that two people fit the mirror to ensure that it is fitted safely.
  • Page 3 Top edge of mirror glass Bracket Distance Bottom edge of Hang ‘N’ Lock bracket Image for reference only. 3. Place the bottom edge of the Hang ’N’ Lock bracket onto the lower reference line and mark a screw hole position in each cam hole recess. Remove the bracket from the wall. 4.
  • Page 4 BS EN 62493:2015 • BS EN 62471:2008 For details of the other items in the Croydex range please visit our website: www.croydex.com Croydex, Central Way, Andover, Hampshire, SP10 5AW, UK Tel: +44 (0) 1264 365881 Fax: +44 (0) 1264 356437 E-mail: info@croydex.co.uk...

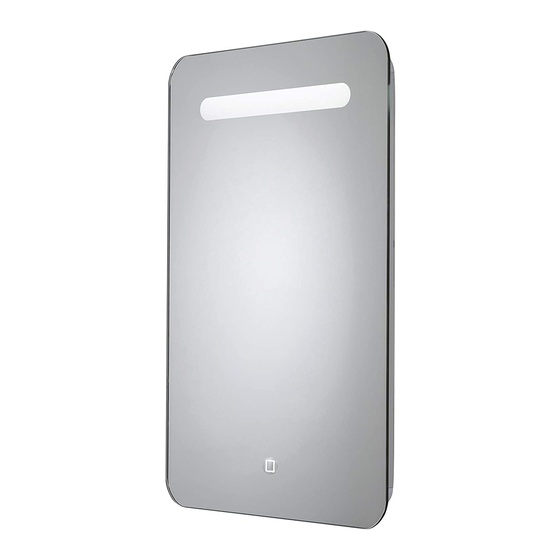

  • Page 5 To the Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive 2014/30/EU 1. Description of products:- Name: LED Illuminated Mirror with Demister Pad MM710100E, MM710200E, MM710300E, MM710400E, MM710500E, Part No. MM710600E 2. Directives complied with:- European Parliament/Council Directive 2014/35/EU on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits (LVD) Directive (recast).
  • Page 6 1. Description of products:- Name: LED Illuminated Mirror with Demister Pad Part No. MM710100E, MM710200E, MM710300E, MM710400E, MM710500E, MM710600E 2. Directives complied with:- European Council Directive 2011/65/EU of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (recast).
  • Page 7 Check out our full range of Bathroom Accessories Bathroom Accessory Sets Heated Towel Rails Bathroom Extractor Fans Bathroom Lighting Shower Seats Grab Rails Shower Curtains Toilet Brushes Bathroom Cleaning Products Wall Mounted Bathroom Accessories Robe Hooks Bathroom Tumblers Toilet Roll Holders Soap Dishes Towel Rings Shower Caddies...

This manual is also suitable for:

Mm710200eMm710300eMm710400eMm710500eMm710600e
