Instructions for adjustment
Datum 27.04.2005
geodyna 4801P
Page 1 of 30

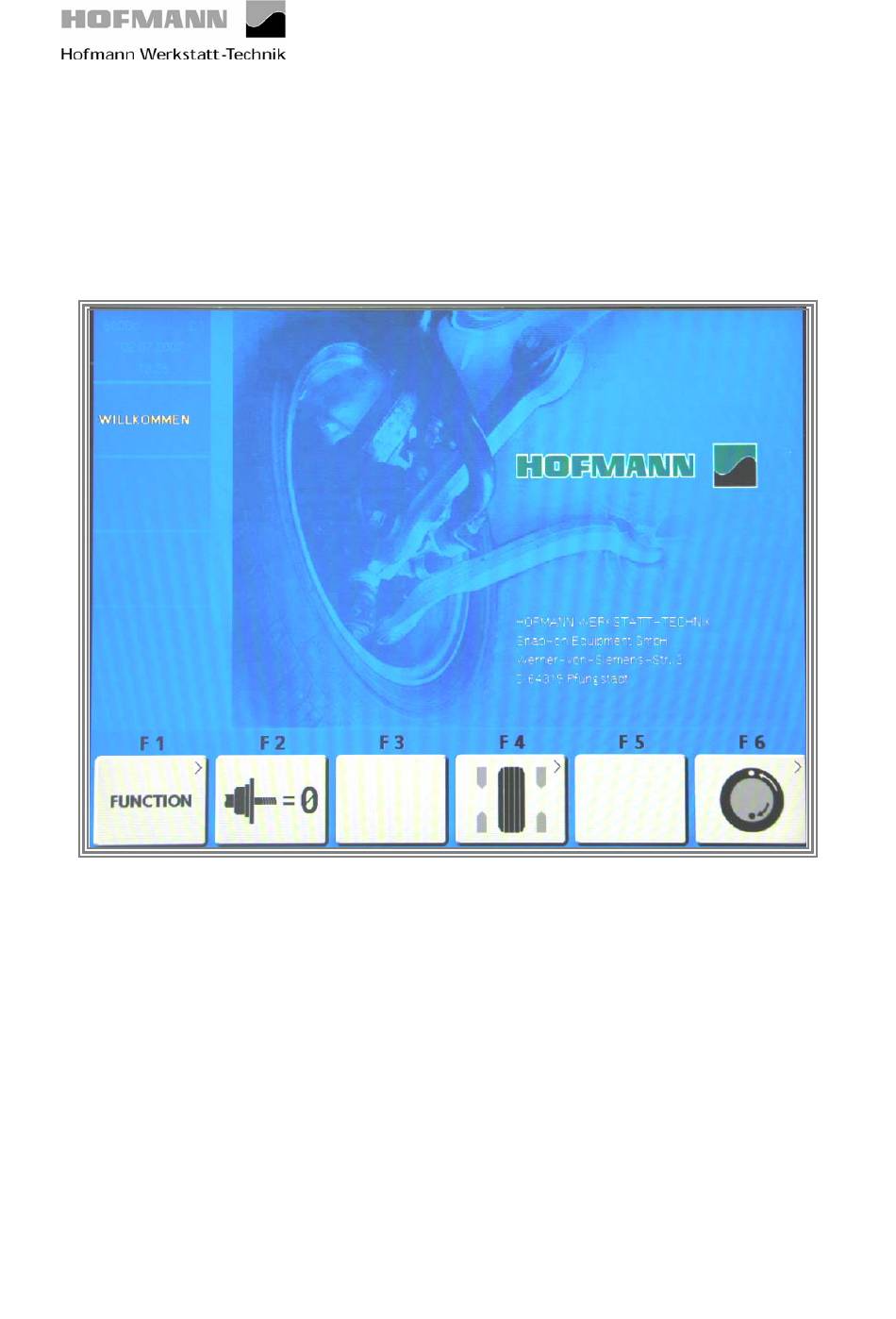

After switching on the machine, the following readings comes up.
Durch drücken der Funktionstaste F1 werden Einstell- und Servicefunktionen zugänglich.
Durch drücken der Funktionstast F1werden Einstell – und Servicefunktionen zugänglich.
By pressing key F1 you enter the configuration menu..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the geodyna 4801P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hofmann geodyna 4801P

Summary of Contents for Hofmann geodyna 4801P

  • Page 1 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 1 of 30 After switching on the machine, the following readings comes up. Durch drücken der Funktionstaste F1 werden Einstell- und Servicefunktionen zugänglich. Durch drücken der Funktionstast F1werden Einstell – und Servicefunktionen zugänglich.
  • Page 2 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 2 of 30 The following reading appears: By pressing 3times key F 6 the key F 4 service routine will be come active.
  • Page 3 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 3 of 30 The following reading appears: By pressing key F 4 the the service program become active.
  • Page 4 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 4 of 30 The following reading appears: By pressing and holding key F1 C – Codes and by rotating the main shaft you can select calibration and test codes.
  • Page 5 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 5 of 30 Code C80 Basic settings of the potentiometers The following reading appears: 3,57 4,27 Distance Diameter The display proceeds automatically to indicate the basic settings. Cone adator (backing plate) must be installed! Setting the diameter potentiometer: Pull out the gauge arm and apply the outer gauge head to the outher surface of the cone adaptor.
  • Page 6 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 6 of 30 Code C80 Basic settings of the potentiometers The following reading appears: Distance Pull out the gauge arm exactly 280 mm, hold, and press the F6 ENTER KEY to store the value.
  • Page 7 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 7 of 30 Code C80 Basic settings of the potentiometers The following reading appears: Place the calibration weight on top of the cone adaptor, its threaded end pointet vertically upwards. Apply the...
  • Page 8 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 8 of 30 Code C80 Basic settings of the potentiometers The following reading appears: Next apply the diameter gauge head to the threaded end of the calibration weight and Press the F6 ENTER KEY to store the value...
  • Page 9 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 9 of 30 Code C80 Basic settings of the potentiometers The following reading appears: C80. Step no. 5 has no function yet. Press F6 ENTER KEY to continue...
  • Page 10 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 10 of 30 Code C80 Basic settings of the potentiometers The following reading appears: C80. Distance Raise the gauge arm and pull out at least 3 times slowly until it clamps. After each clamping hold the gauge arm for at least 1 second in the instantaneous clamping position before repeating this procedure.
  • Page 11 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 11 of 30 Code C80 Basic settings of the potentiometers The following reading appears: C80. Distance Pull out the gauge arm at le ast 7 times with increased constant speed until it clamps. After each clamping hold the gauge arm for at least 1 second in the instantaneous clamping position before repeating this procedure.
  • Page 12 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 12 of 30 Code C80 Basic settings of the potentiometers The following reading appears: Calibration is completed and must be stored by entering C90. Service and test functions bec ome accessible by pressing and holding the F1 C-CODE KEY and by rotating the main shaft.
  • Page 13 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 13 of 30 Measuring adaptor flange and zero plane using code C81. The following reading appears: Abstand Apply the gauge arm on the contact surface of the test rotor and press the F6 ENTER KEY to...
  • Page 14 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 14 of 30 Measuring adaptor flange and zero plane using code C81 The following reading appears: Calibration is completed and must be stored by entering Code C90. Service and test functions become accessible by pressing and holding the F1 C-CODE KEY and...
  • Page 15 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 15 of 30 Code C83 – Calibration of unbalance measurement Clamp the test rotor, enter distance, 15“ diameter and 6.5“ width.
  • Page 16 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 16 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Press the START key to start a measuring run.
  • Page 17 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 17 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Insert a calibration weight of 100 gms in the left-hand plane of the test rotor and press the F6 ENTER KEY to acknowledge this weight.
  • Page 18 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 18 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Press the START KEY to start a measuring run.
  • Page 19 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 19 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Remove the 100 gm calibration weight from the left-hand plane of the test rotor and insert it into the...
  • Page 20 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 20 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Step no. 5 has no function yet. Press F6 ENTER KEY to continue...
  • Page 21 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 21 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: The ambient transducer temperature is read out for 1 second.
  • Page 22 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 22 of 30 Code C83 – Calibration of unbalance measurement After the temperature compensation the following is displayed: After temperature measurement the following reading appears: Remove the 100 gm calibration weight from the test rotor. Press the START KEY in order to proceed...
  • Page 23 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 23 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Insert the calibration weight supplied with the machine at the left inner side of the adaptor flange. Press the START KEY.
  • Page 24 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 24 of 30 Code C83 – Calibration of unbalance measurement The following reading appears: Calibration is completed and must be stored by entering Code C90. Service and test functions become accessible by pressing and holding the F1 C-CODE KEY and...
  • Page 25 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 25 of 30 Compensating for the residual unbalance of the main shaft and the drive disc. Activate adjustment Code- C84 Remove the calibration rotor from the wheel adaptor The following reading appears: Close the wheel guard and start the extended measurement run by pressing the START KEY.
  • Page 26 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 26 of 30 Code C88 Adjustment of the angular unbalance position. The following reading appears: Clamp the test rotor on the main shaft, enter distance, 15“ diameter and 6.5“ width. Close the wheel guard and start the first measurement run by pressing the START KEY...
  • Page 27 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 27 of 30 Code C88 Adjustment of the angular unbalance position. The following reading appears: Attach a weight of 100 gm in one of the correction planes.. Carry out the second measurement run by pressing the START KEY...
  • Page 28 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 28 of 30 Code C88 Adjustment of the angular unbalance position. The following reading appears: Turn the wheel until the weight is exactly vertical below the main shaft. The correction value will follow the rotation of the main shaft within the premissible range of +/- 7 incrementsof the position counter, i.e.
  • Page 29 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 29 of 30 Code C88 Adjustment of the angular unbalance position. The following reading appears: Calibration is completed and must be stored by entering Code C90. Service and test functions become accessible by pressing and holding the F1 C-CODE KEY and...
  • Page 30 Instructions for adjustment Datum 27.04.2005 geodyna 4801P Page 30 of 30 Code C90 Saving adjustment data The following reading appears: 1.) Press key F1 C – Codes and rotate the main shaft until Code C90 appears on the screen.. Press the precision key F 4 and rotate the main shaft until 1 appears on the screen .Press F6 ENTER...
