Royal Vendors Merlin IV Service Bulletin

R
SUBJECT: Small Package Water Vend Kits, Merlin IV
MODELS: 72" and 79" Merlin IV Venders
Tools Required:
No Tools
BEFORE WORKING ON VENDER: Remove power by unplugging vender's main power cord from the AC voltage power source.
REASON FOR BULLETIN:
PACKAGE:
Aquafina, 16.9 oz., 2.5 dia.
Naya, 16.9 oz., 2.5 dia.
Evian, 16.9 oz., 2.5 dia. (FRONT COL.)
Evian, 16.9 oz., 2.5 dia. (REAR COL.)
Poland Natural Spring Water, 16.9 oz., 2.6 dia
Sam's Choice Natural Spring Water, 16.9 oz., 2.6 dia (Front Col.)
Sam's Choice Natural Spring Water, 16.9 oz., 2.6 dia (Rear Col.)
Safeway Select Refreshe, 16.9 oz., 2.5 dia (FRONT COL.)
Safeway Select Refreshe, 16.9 oz., 2.5 dia (REAR COL.)
Note: Retainer positions may vary due to package, manufacturer or fill variations.
INSTRUCTIONS:
Procedure "A" -

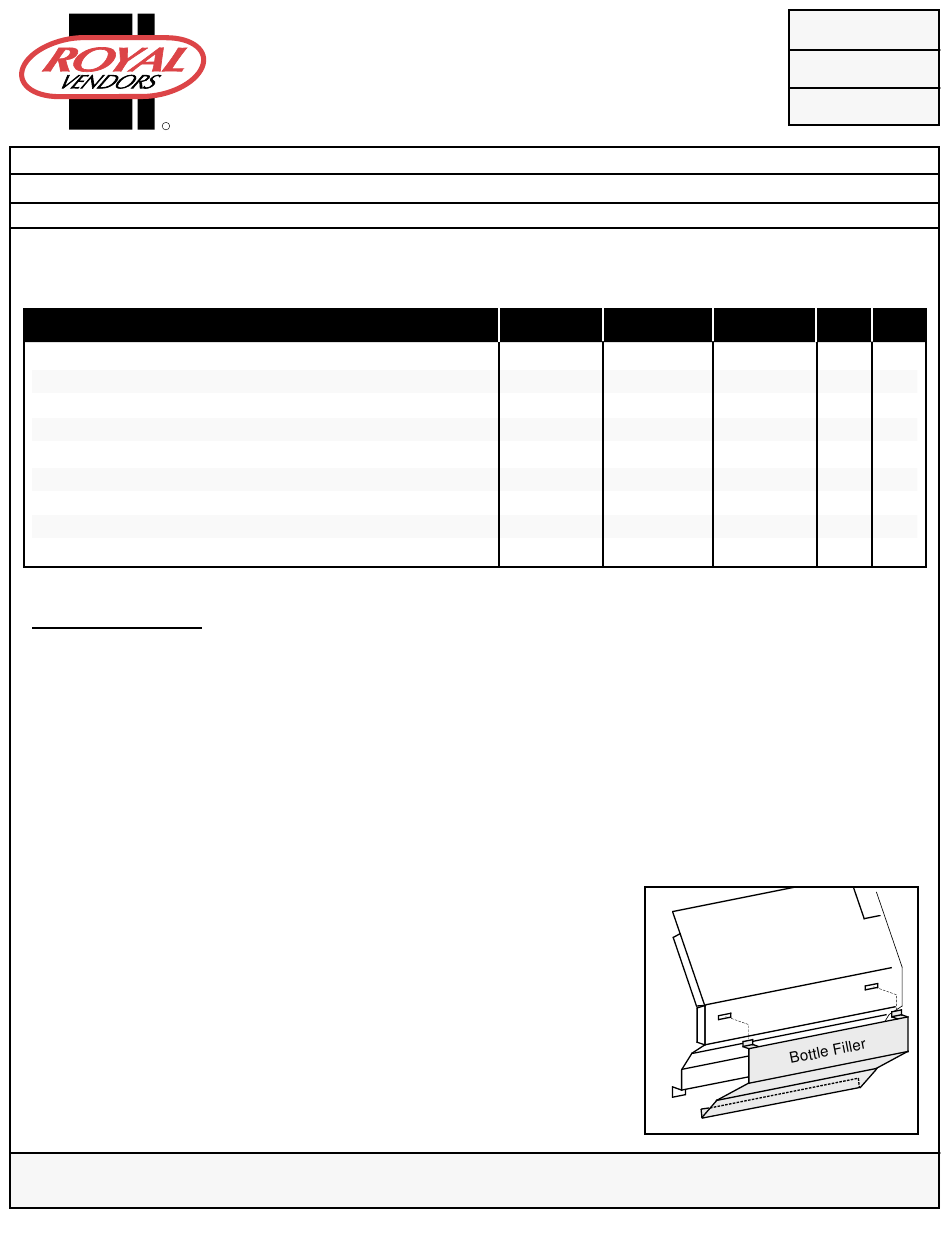

Empty the column first. Then install the "Bottle Filler" (included in kit), by sliding the top tabs of the
Bottle Filler into the mating slots in the baffle (on the left side of the column) and lower the Bottle
Filler into position as shown in figure 1. Make sure that the Bottle Filler hangs securely in position.
NOTES: 1.) You may need to rotate the rotor, so that the concaved side is facing up.
Procedure "B" -
Slide one of the two extrusions (included in the kit) over one of the flanges of the center channel
nearest the column you are converting. (the channel that divides the front columns from the rear).
Flip the remaining extrusion and slide it over the other flange nearest the column you are converting.
The extrusions' small flanges should be away from the center of the column as show to the right in
figure 2.
NOTE: Shown in figure 2 are the extrusions correctly installed in a front column. If installing them in a
rear column make sure that the Extrusions' small flanges are
facing away from the center of the rear column.
Procedure "C" -
Fasten the Front Retainer Extension to the top portion of the
"Front Right Product Retainer". See figures 3 and 4 for
correct positioning.
Procedure "D" -
Fasten a Front Retainer Extension to each front product
retainers. See Figures 3 and 5
Procedure "E" -
After installing a kit into the desired column, load product and
test vend.
NOTE: Make sure that the Set Vending Depth Mode
(SdEP) is set to single depth.
ANY QUESTIONS??? CONTACT ROYAL VENDORS' CUSTOMER SERVICE DEPARTMENT
F0019003.FRM
SERVICE BULLETIN #
201 INDUSTRIAL BOULEVARD • KEARNEYSVILLE, WV 25430
Phone: (304) 728-7056 • Fax: (304) 725-6579 • Toll Free: (800) 931-9214
These kits allow vending of most "smaller" water packages.
2.) The Bottle Filler installs exactly the same in either the front or rear columns.
CALL TOLL FREE (800) 931-9214
ISSUE DATE: 6/5/95
Estimated Installation Time: 20 Minutes for an unloaded vender
REFER TO:
A, B, E
A, B, E
A, B, D, E
A, B, E
A, B, E
A, B, C, E
A, B, E
A, B, C, E
A, B, E
Figure 1
REV. B REV. DATE: 2/27/98
00148
Kit # for 79'
Kit # for 72'
256110 257110
256110 257110
256129 257129
256110 257110
256110 257110
256195 257195
256110 257110
256195 257195
256110 257110
Baffle
PAGE: 1 of 2
DATE: 8-10-01
REVISION: 04
RETAINER
SETTINGS
Front Rear
7 4
6 3
7 -
- 5
8 6
8 -
- 6
7 -
- 3
PAGE 1 OF 2
