Elite Screens TE100HC2 Specifications

CineGrey™ is the best screen material for those using a
low contrast ratio (LCD or DLP) projector for home theater
and need to increase contrast ratio for enhanced black
levels. We suggest you use CineWhite if you have a newer
2007-2008 model DLP or LCD projector.

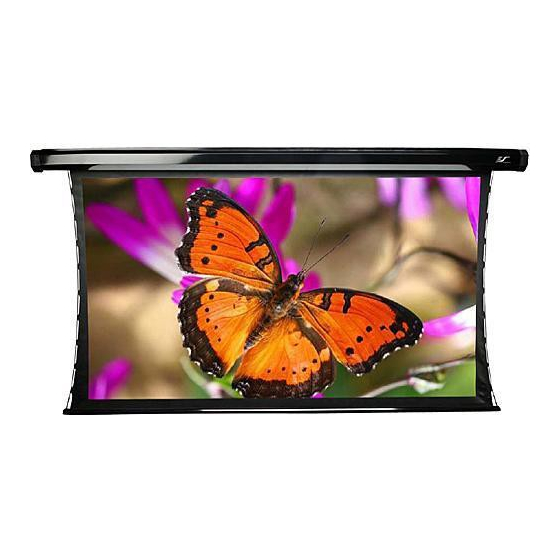

CineTension 2 Series-Tension Electric/Motorized Screen
Nominal
Model Diagonal
TE84VG2 84" (4:3)
TE100VG2 100" (4:3)
TE120VG2 120" (4:3)
TE84VW2 84" (4:3)
TE84VW2-E30 84" (4:3)
TE92VW2 92" (4:3)
TE100VW2 100" (4:3)
TE100VW2-E24 100" (4:3)
TE120VW2 120" (4:3)
TE120VW2-E24 120" (4:3)
TE135VW2 135" (4:3)
TE135VW2-E24 135" (4:3)
TE150VW2 150" (4:3)
TE84HC2 84" (16:9)
TE92HC2 92" (16:9)
TE100HC2 100" (16:9)
TE106HC2 106" (16:9)
TE120HC2 121" (16:9)
TE135HC2 135" (16:9)
TE150HC2 150" (16:9)
TE84HW2 84" (16:9)
TE84HW2-E30 84" (16:9)
TE92HW2 92" (16:9)
TE100HW2 100" (16:9)
TE100HW2-E24 100" (16:9)
TE106HW2 106" (16:9)
TE120HW2 121" (16:9)
TE120HW2-E20 121" (16:9)
TE135HW2 135" (16:9)
TE135HW2-E12 135" (16:9)
TE150HW2 150" (16:9)
TE165HW2 165" (16:9)
TE180HW2 180" (16:9)
TE84HG2 84" (16:9)
TE92HG2 92" (16:9)
TE100HG2 100" (16:9)
TE135HG2 135" (16:9)
CineTension 2 Acoustic Series
Nominal
Model Diagonal
TE72VW2-A 72" (4:3)
TE84VW2-A 84" (4:3)
TE100VW2-A 100" (4:3)
TE120VW2-A 120" (4:3)
TE135VW2-A 135" (4:3)
TE84HW2-A 84" (16:9)
TE92HW2-A 92" (16:9)
TE106HW2-A 106" (16:9)
TE120HW2-A 120" (16:9)
TE135HW2-A 135" (16:9)
TE150HW2-A 150" (16:9)
www.elitescreens.com
033
CineTension2 Series
• Tab-Tension Electric Screen
• Premium Grade Tension Electric Screens
View View View View
Height Width Height Width
(in) (in) (cm) (cm)
50.4 67.2 128.0 170.7
60.0 80.0 152.4 203.2
72.0 96.0 182.9 243.8
50.4 67.2 128.0 170.7
50.4 67.2 128.0 170.7
55.0 73.3 139.7 186.2
60.0 80.0 152.4 203.2
60.0 80.0 152.4 203.2
72.0 96.0 182.9 243.8
72.0 96.0 182.9 243.8
81.0 108.0 205.7 274.3
81.0 108.0 205.7 274.3
90.0 120.0 228.6 304.8
41.2 73.2 104.6 185.9
45.1 80.2 114.6 203.7
49.0 87.2 124.5 221.5
52.0 92.4 132.1 234.7
58.8 104.6 149.4 265.7
66.2 117.7 168.1 299.0
73.5 130.7 186.7 332.0
41.2 73.2 104.6 185.9
41.2 73.2 104.6 185.9
45.1 80.2 114.6 203.7
49.0 87.2 124.5 221.5
49.0 87.2 124.5 221.5
52.0 92.4 132.1 234.7
58.8 104.6 149.4 265.7
58.8 104.6 149.4 265.7
66.2 117.7 168.1 299.0
66.2 117.7 168.1 299.0
73.5 130.7 186.7 332.0
81.0 144.0 205.7 365.8
88.3 156.9 224.3 398.5
41.2 73.2 104.6 185.9
45.1 80.2 114.6 203.7
49.0 87.2 124.5 221.5
66.2 117.7 168.1 299.0
View View View View
Height Width Height Width
(in) (in) (cm) (cm)
43.0 57.0 109.0 144.8
50.4 67.2 128.0 170.7
60.0 80.0 152.4 203.2
72.0 96.0 182.9 243.8
81.0 108.0 205.7 274.8
41.2 73.2 104.6 185.9
45.1 80.2 114.6 203.7
52.0 92.4 132.1 234.7
58.8 104.6 149.4 265.7
66.2 117.7 168.1 299.0
73.5 130.7 186.7 332.0
The Elite AcousticPro™ Woven Acoustically Transparent
Screen is your best choice for use with high quality in-wall
audio. The Square mesh pattern has only a 10% light loss,
and True Color Rendition on coated fabric ensures both
audio and video quality with each presentation.
Overall Overall Overall Overall
Width Width Height Height
(in) (cm) (in) (cm)
82.5 209.6 64.0 162.6
96.0 243.8 77.3 196.3
113.5 288.3 85.0 215.9
82.5 209.6 64.0 162.6
82.5 209.6 88.0 223.5
91.5 232.4 72.8 184.9
96.0 243.8 75.1 190.8
96.0 243.8 93.1 236.5
113.5 288.3 85.0 215.9
113.5 288.3 105.0 266.7
121.5 308.6 90.7 230.4
121.5 308.6 114.1 289.8
138.0 350.5 167.0 424.2
89.0 226.1 54.8 139.2
96.0 243.8 60.2 152.9
103.0 261.6 64.1 162.8
109.0 276.9 67.0 170.2
122.6 311.4 71.9 182.6
135.5 344.2 79.3 201.4
149.8 380.5 86.6 220.0
89.0 226.1 54.8 139.2
89.0 226.1 78.8 200.2
96.0 243.8 60.2 152.9
103.0 261.6 64.1 162.8
103.0 261.6 82.1 208.5
109.0 276.9 67.0 170.2
122.6 311.4 71.9 182.6
122.6 311.4 80.0 205.2
135.5 344.2 79.3 201.4
135.5 344.2 87.3 221.7
149.8 380.5 86.6 220.0
150.0 381.0 90.0 228.6
160.9 408.7 95.5 242.6
89.0 226.1 54.8 139.2
96.0 243.8 60.2 152.9
103.0 261.6 64.1 162.8
135.5 344.2 79.3 201.4
Overall Overall Overall Overall
Width Width Height Height
(in) (cm) (in) (cm)
73.0 185.4 56.8 144.3
82.5 209.6 64.0 162.6
196.0 243.8 77.3 196.3
113.5 288.3 85.0 215.9
121.5 308.6 90.7 230.4
89.0 226.1 54.8 139.2
96.0 243.8 60.2 152.9
109.0 276.9 67.0 170.2
122.6 311.4 71.9 182.6
134.5 341.6 79.3 201.4
149.8 380.5 86.6 220.0
Net Wt. Net Wt. Gain Screen
(lbs.) (Kgs) Material
27.6 12.5 1.8 PowerGain
43.5 19.7 1.8 PowerGain
47.8 21.7 1.8 PowerGain
27.6 12.5 1.1 CineWhite
28.5 12.9 1.1 CineWhite
42.2 19.1 1.1 CineWhite
43.5 19.7 1.1 CineWhite
44.5 20.2 1.1 CineWhite
47.8 21.7 1.1 CineWhite
47.8 21.7 1.1 CineWhite
51.5 23.4 1.1 CineWhite
51.5 23.4 1.1 CineWhite
56.4 25.6 1.1 CineWhite
27.0 12.3 1.0 CineWhite
42.6 19.3 1.0 CineGrey
45.9 20.8 1.0 CineGrey
47.8 21.7 1.0 CineGrey
52.7 23.9 1.0 CineGrey
52.9 24.0 1.0 CineGrey
58.4 26.5 1.0 CineGrey
27.0 12.3 1.1 CineWhite
28.0 12.7 1.1 CineWhite
42.6 19.3 1.1 CineWhite
45.9 20.8 1.1 CineWhite
45.9 20.8 1.1 CineWhite
47.8 21.7 1.1 CineWhite
52.7 23.9 1.1 CineWhite
52.7 23.9 1.1 CineWhite
52.9 24.0 1.1 CineWhite
53.9 24.4 1.1 CineWhite
58.4 26.5 1.1 CineWhite
75.0 34.0 1.1 CineWhite
85.0 38.6 1.1 CineWhite
27.0 12.3 1.8 PowerGain
42.6 19.3 1.8 PowerGain
45.9 20.8 1.8 PowerGain
52.9 24.0 1.8 PowerGain
Net Wt. Net Wt. Gain Screen
(lbs.) (Kgs) Material
23.5 10.7 1.0 AcousticPro
27.6 12.5 1.0 AcousticPro
40.1 18.2 1.0 AcousticPro
47.8 21.7 1.0 AcousticPro
52.0 23.6 1.0 AcousticPro
27.0 12.3 1.0 AcousticPro
42.6 19.3 1.0 AcousticPro
42.8 19.4 1.0 AcousticPro
48.3 21.9 1.0 AcousticPro
52.9 24.0 1.0 AcousticPro
58.4 26.5 1.0 AcousticPro
Bottom
Top Black Black
Mask Masking
(in)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
30" (76.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
24" (61.0CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
24" (61.0CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
24" (61CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
30" (76.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
24" (61.0CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
20" (51.0CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
12" (30.5CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
Bottom
Top Black Black
Mask Masking
(in)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (10.2CM) 2" (5.1CM)
4" (15.3CM) 2" (5.1CM)
4" (76.2CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (15.3CM) 2" (5.1CM)
6" (61.0CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
4" (61.0CM) 2" (5.1CM)
4" (10.2CM) 2" (5.1CM)
