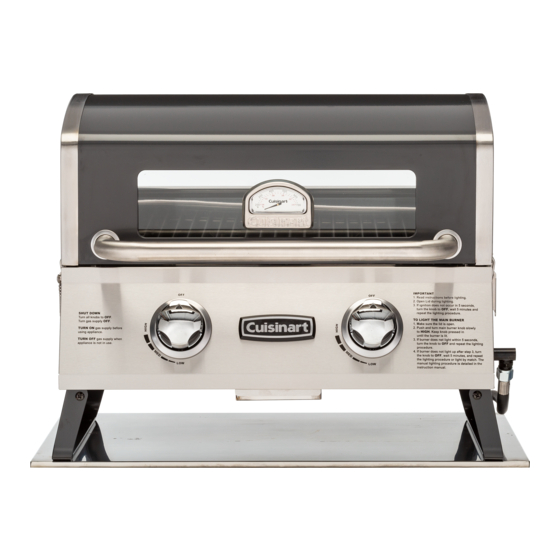

MODEL: CGWM-093 Deluxe Two Burner
Portable Gas Grill
ASSEMBLY AND OPERATING INSTRUCTIONS
m
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance
m
Read and follow all warnings and instructions before
assembling and using the appliance
m
Follow all warnings and instructions when using the appliance
m
Keep this manual for future reference
Note to installer:
Note to customer:
m DANGER
1.
Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
m DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any other gas cylinder.
3. Never operate this appliance with 25 feet (7.5m) of any flammable liquid.
4. lf a fire should occur, keep away from the appliance and immediately call your fire
department . Do not attempt to extinguish an oil or grease fire with water.
5. Heated liquids remain at scalding temperatures long after the cooking process.
Never touch cooking appliance until liquids have cooled to 115oF (45oC) or less.
Failure to follow these instructions could result in fire, explosion or burn hazard,
which could cause property damage, personal injury or death.
m WARNING: FOR OUTDOOR USE ONLY
Leave this Owner's Manual with the consumer after delivery and/or installation.
Leave this Owner's Manual in a convenient place for future reference.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your fire
department.
Failure to follow these instructions could
result in fire, explosion or burn hazard,
which could cause property damage,
personal injury or death.
1
Advertisement
Related Manuals for Cuisinart CGWM-093 Deluxe
Summary of Contents for Cuisinart CGWM-093 Deluxe
- Page 1 MODEL: CGWM-093 Deluxe Two Burner Portable Gas Grill ASSEMBLY AND OPERATING INSTRUCTIONS m WARNING: FOR OUTDOOR USE ONLY This instruction manual contains important information necessary for the proper assembly and safe use of the appliance Read and follow all warnings and instructions before...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety Information Package Contents List Preparation Assembly Instructions Installation Instructions Operation Instructions Care and maintenance Troubleshooting Replacement Parts List Questions? Back Cover... -
Page 3: Safety Information
m SAFETY INFORMATION Please read the following instructions carefully before attempting to assemble, operate or install the product. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have questions regarding the product please call customer service at 866-994-6390, 9 a.m.-5 p.m., EST, Monday-Friday or email Grilling@TheFulhamGroup.com. - Page 4 m SAFETY INFORMATION The Fuel System Gas grills are used safely by millions of people when following simple safety precautions. The items in the fuel system are designed for operation with this grill. They must not be replaced with any other brand.
-
Page 5: Package Contents List
m SAFETY INFORMATION m WARNING • Always operate the grill on a tabletop, no higher than 32 inches. • Place the propane tank on the ground immediately adjacent to the tabletop, no less than 24 inches from the grill. • Failure to follow these instructions could cause the propane tank to overheat and vent propane which could ignite causing serious personal injuries or property damage and/or a tripping hazard over the gas hose or propane tank, pulling the grill off the tabletop causing serious personal injuries or property damage. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Remove all the packing materials and move grill close to a desired location. 2. Remove the M6x12 screws and M6 nuts from leg assembly. Then, as shown in Figure 1, use the M6x12 screws and M6 nuts to fasten the leg assembly to the M6 Nut leg support brackets. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS GAS HOOK-UP Only the pressure regulator and hose assembly supplied with the grill should be used. Any replacement pressure regulator and hose assembly must be specified by the grill manufacturer. This grill is configured for Liquid Propane. Do not use a Natural Gas supply. Total gas consumption (per hour) with all burners set on “HI”: Main burners 20,000 BTU/Hr. - Page 8 INSTALLATION INSTRUCTIONS DISCONNECTING THE LIQUID PROPANE CYLINDER • Turn the grill burner valves “OFF” and make sure the grill is cool. • Turn the Liquid Propane cylinder valve “OFF” by turning clockwise until it stops. • Detach the regulator assembly from the cylinder valve by turning the quick coupling nut counterclockwise. •...
-
Page 9: Operation Instructions
INSTALLATION INSTRUCTIONS m WARNING 1. The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressure in excess of 1/2-in.PSI (3.5kpa). 2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2-in.PSI (3.5kpa). - Page 10 OPERATING INSTRUCTIONS FLAME CHARACTERISTICS • Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting as shown in Figure 8. • Turn the control knobs and Liquid Propane cylinder valves “OFF.” •...
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE There is very little care and maintenance needed. The Portable Gas Grill is designed and made of materials that will last many years with normal use. Following these instructions will improve the longevity and quality of cooking. To ensure safe operation of your grill, the area of cooking should always be kept free of combustible materials of any type, such as gasoline or other flammable vapors or liquids. - Page 12 CARE AND MAINTENANCE This unit must be kept in an area free from combustible materials, gasoline and other flammable vapors and liquids. Make sure all openings into the grill body are free of blockages or debris and there are no objects or materials blocking the flow of combustion or ventilation.
-
Page 13: Troubleshooting
TROUBLESHOOTING m WARNING Spiders and insects can nest inside the burners of the grill and disrupt gas flow. This very dangerous condition could cause a fire behind the valve panel, thereby damaging the grill and making it unsafe for operation. Inspect the grill at least twice a year. When to Look for Spiders You should inspect the burners at least twice a year or immediately after any of the following conditions occur: •... - Page 14 PART LIST For replacement parts, call our customer service department 866-994-6390, 9 a.m.-5 p.m., EST, Monday- Friday or email Grilling@TheFulhamGroup.com. NOTE: Not all parts are replaceable. WARNING: when the grill is not use, the regulator must hang on the side of the firebox.
- Page 15 Part Part Description Description Qty. Qty. Grill Lid Valve and Manifold Assembly Lid Hinge Screwl Control Panel Lid Bumper Cuisinart Badge Window Retaining Bracket Knob Window Knob Bezel Thermometer Bezel Propane Regulator Thermometer Grease Tray Lid Handle Bezel Fire Box...
- Page 16 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 866-994-6390, 9 a.m.-5 p.m., EST, Monday-Friday or email Grilling@TheFulhamGroup.com. Model#CGWM-093 North American Distributor: The Fulham Group Newton, MA 02466...
