aspenhome I215-297 Assembly Instructions

aspenhome

ITEM NO: I215-297

Thank you for purchasing this quality product. Be sure to check all packing material carefully for

small parts that may come loose inside the carton during shipment.

Leveler on bases

Adjust the leveler

when necessary

BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.

Save these instructions for future reference.

Page 1/1

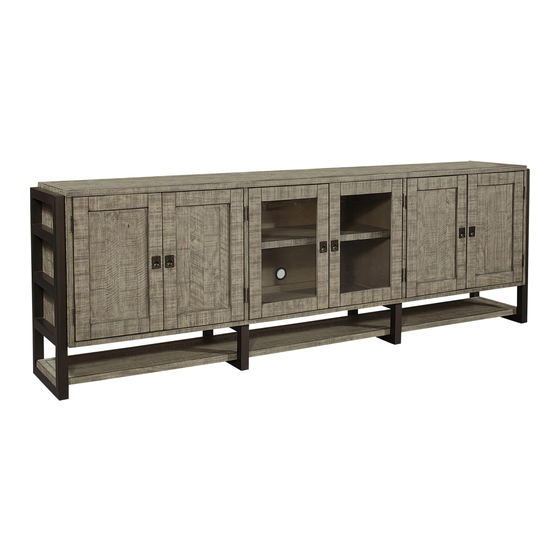

97" Console

FOR INDOOR USE ONLY

MADE IN VIETNAM

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED (NOT PROVIDED)

PHILLIPS SCREWDRIVER

If you prefer to adjust the shelf

location, remove the screws and

move shelf brackets to the

desired location. Then secure the

brackets to shelf with screws.

06-22-2020

Table of Contents

Do you have a question about the I215-297 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I215-297 97" Console Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER...
Page 2 Wood Screw #4 x 5/8" 16 PCS Metal Connect 4 PCS FUNCTIONALITY INSTRUCTION I215-297H I215-297 Leveler on bases Adjust the leveler when necessary BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. Save these instructions for future reference.
Page 3 ASSEMBLY INSTRUCTIONS ITEM NO: I215-297H 93" Hutch STEP 1: Attach the back panel (left & right) to the back panel (middle) using 6 bolts (A), lock washers (C) and flat washers (D) as shown below. Do not completely tighten bolts.
Page 4 Back Panel Assembly STEP 4: Position the hutch on the console. Attach the metal connects(G) to the back of hutch with wood screws(F) as shown below. I215-297H Hutch I215-297H Metal Connect I215-297 Console I215-297 MADE IN VIETNAM Page 3/3 07-14-2020...
