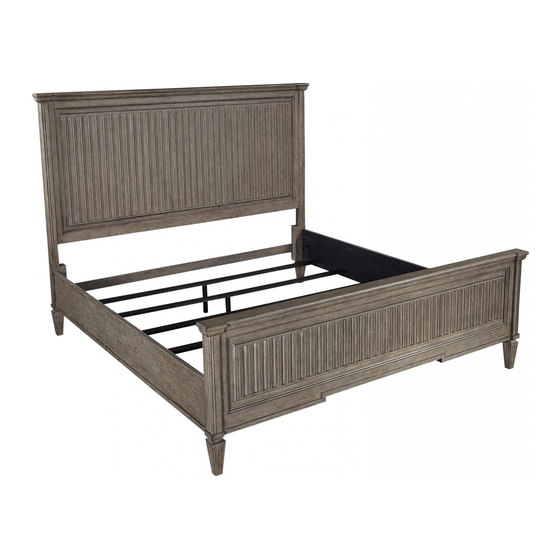

aspenhome I249-412-TAL Assembly Instructions Manual

Queen panel hb, queen rails, queen panel fb
Hide thumbs

Advertisement

Quick Links

Download this manual
aspenhome
ah
ITEM NO: I249-412-TAL
I249-402-TAL
I249-413-TAL
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
I249-412
I249-402
HARDWARE LIST: I249-412
Description
No.
Bolt Ø1/4" x 1-9/16"
A
Lock Washer Ø1/4"
B
Flat Washer Ø1/4" x 3/4"
C
Bolt Ø5/16" x 1-3/4"
D
Lock Washer Ø5/16"
E
Flat Washer Ø5/16" x 3/4"
F
Allen Wrench 4mm
G
HARDWARE LIST: I249-402
Description
No.
Hanger Bolt Ø5/16" x 3-1/2"
H
Lock Washer Ø5/16"
I
Flat Washer Ø5/16" x1/2"
J
Hex Nut Ø5/16"
K
L
Hex Wrench 12mm
M
Wood Screw M4 x 1-1/2"
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/4

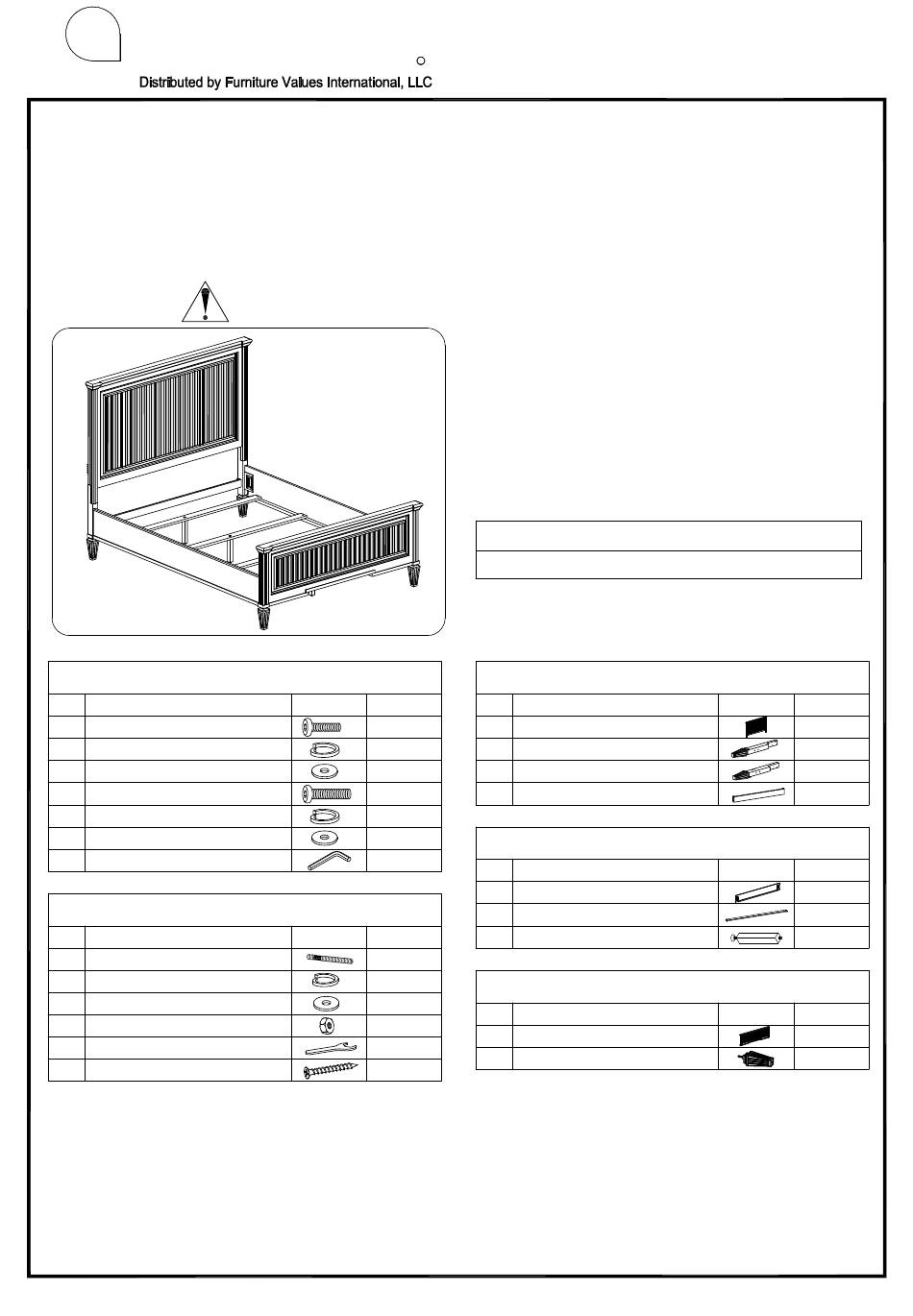

Queen Panel HB
Queen Rails
Queen Panel FB
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
I249-413
Quantity
Sketch
4 PCS
4 PCS
4 PCS
6 PCS
6 PCS
6 PCS
1 PC
Sketch
Quantity
8 PCS
8 PCS
8 PCS
8 PCS
1 PC
8 PCS
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
All Beds need to be set up in the exact final
location so that after full assembly it will not
need to be moved. Moving the bed will cause
the support legs to move out of perpendicular
(90 degree), weaken the support system, and
may allow the bed to collapse.
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST: I249-412
Description
No.
1
Headboard
2
Left Leg
3
Right Leg
4
Wood Stretcher
COMPONENTS LIST: I249-402
Description
No.
1
Bed rails
Slats
2
Support Leg (for slat)
3
COMPONENTS LIST: I249-413
Description
No.
1
Footboard
Square Foot
2
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
Quantity
Sketch
2 PCS
4 PCS
4 PCS
Quantity
Sketch
1 PC
2 PCS
07-23-2020
