- Page 1 Metcalfe MP40 40 Litre Heavy Duty Floor Standing Mixer Installation & Operating Instructions 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Mixer ....................Technical Data ……………………..…………………............. Installation - Unpacking ..................- Location ................... - Electrical Connection ………………………………………………………………… Operation Fitting the Bowl ................Bowl Lift and Guard ……………………………………………………………………… Tool Selection …………………………………………………………………………….. Fitting Attachments ……………………………………………………………………. Speed Selection ………………………………………………………………………….. Operation …………………………………………………………………………………….. Recommended Mixing Capacities ………………………………………………. Attachment Hub …………………………………………………………………………. -
Page 4: Your Mixer
Your Mixer Gear Selector Control Panel Attachment Hub Attachment Hub Bowl Lift Handle Drip Cup Bowl Guard Bowl Rubber Feet (not shown) -
Page 5: Technical Data

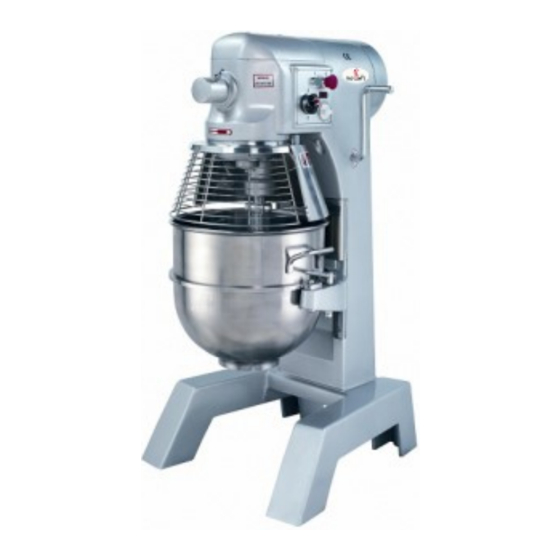

Metcalfe MP40 (40 Litre Heavy Duty Mixer) The Metcalfe MP40 has a total bowl capacity of 40 Litres. The three mixing tools provided ensure that all mixing requirements are met. • Heavy duty 40ltr, floor standing, gear driven, planetary mixer Features •... -
Page 6: Installation
Installation Unpacking Unpack the mixer immediately after receipt. Please inspect the mixer to ensure no damage and all parts i.e. Bowl, Beater, Whisk & Dough Hook have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. Never attempt to operate the machine with damaged parts. -
Page 7: Electrical Connection
Electrical Connection • Before connecting the mixer to an electrical supply, please read the specifications on the rating plate to ensure that they comply with those of the electrical supply. The mixer should be fitted to an isolated electrical supply, capable of supporting an electrical load of 20amps. •... - Page 8 Ambient Conditions • The minimum requirement for all electrical equipment’s correct operation is an air temperature of between +5℃ and +40℃. • Electrical equipment operates correctly when the relative humidity does not exceed 95% at a maximum temperature of +40℃. •...
-
Page 9: Operation
Operation Fitting the Bowl NOTE: Install the bowl BEFORE attaching the agitator. 1. Lower the bowl lift handle anti-clockwise and down to its resting position. 2. Lift the bowl by the handles and slowly position the locking pin located at the rear of the bowl into the hole in the middle rear of the cradle. -
Page 10: Fitting Attachments
Fitting Attachments NOTE: Install the bowl BEFORE attaching the mixing tool. NOTE: It is easier to install the attachment prior to adding ingredients into the bowl. Open the bowl guard and lower the bowl. Slide the attachment slowly upwards onto the planetary shaft, fitting the shaft pin through the slot in the attachment. -
Page 11: Operation
Operation On Switch Emergency Stop Gear selector handle Timer selection dial • Before you can start the machine, you will have to lift the bowl and close the safety guard. • Place the gear selector handle to desired gear. • Select time required if using timer. •... -
Page 12: Recommended Mixing Capacities
Recommended Mixing Capacities PRODUCT MP40 Bowl size 40 litre Egg Whites 1.6 ltr Mashed Potatoes 13.6 kg Mayonnaise (Qts. Oil) 12 ltr Waffle/Pancake Batter 15.1 ltr Whipped Cream 8.5 ltr Fondant Icing 11.3 kg Cup / Layer Cake 20.4 kg... -
Page 13: Attachment Hub
Attachment Hub Never put your hand into the feed chute when using any mixer attachment. The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! Loosen and remove the attachment hub thumbscrew Thumbscrew Remove the plastic cover from the attachment hub Lubricate the attachment shaft with a food quality grease or mineral oil Insert the attachment shaft into the hub making sure to line... -
Page 14: Cleaning
Cleaning Instructions ALWAYS disconnect from the power source when cleaning or servicing this machine. ALWAYS remove the attachment/s after each batch. If not, the attachment/s can become stuck on the shaft and difficult to remove. NEVER attempt to clean this machine while it is in motion, serious injury could result. NEVER use a scrubber pad, steel wool, or abrasive material to clean the mixer. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Bowl guard not in closed Rotate guard to the right until fully closed. position Bowl not raised Raise bowl to highest position Check all power connections. Power not connected Plug into a live socket (do not use extension correctly cord!). - Page 16 Problem Possible Causes Action Required Mixer will not mix Incorrect or low voltage Contact electrician medium or heavy loads Technician to remove hub and clean interior. Residue leaking from Contaminated hub due to To avoid problem, always wipe hub and dry food build-up after each use Defective or dented bowl...
-
Page 17: Spare Parts & Service Contact Details
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine. -
Page 18: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. There is a limited 6-month warranty on the following: •... - Page 19 Some other products in the Metcalfe portfolio: NS Slicer Range Peeler Range Ceado Roband...
- Page 20 6/2021 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
